Pinout Values and Diagnostic Parameters




IPDM E/R

Reference Value

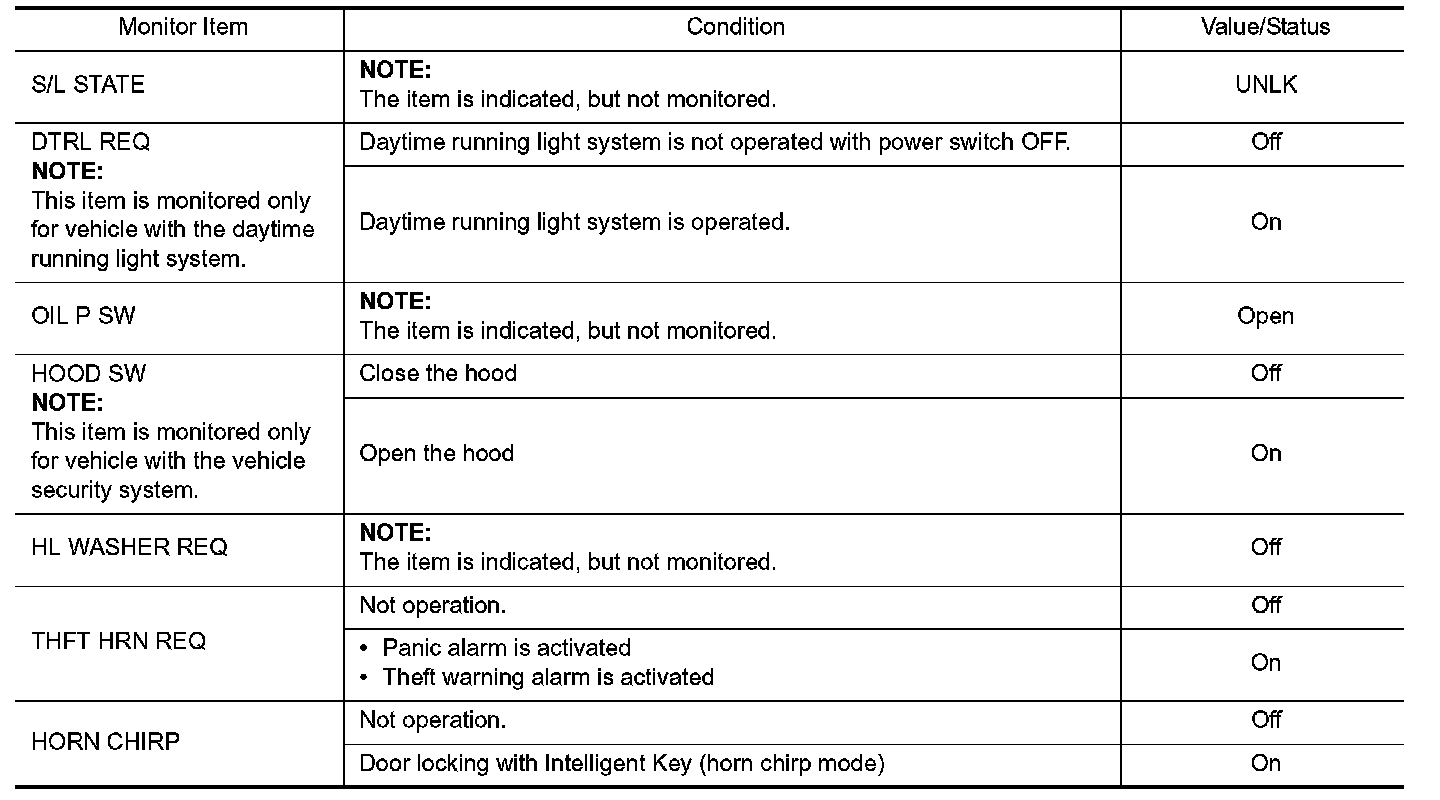

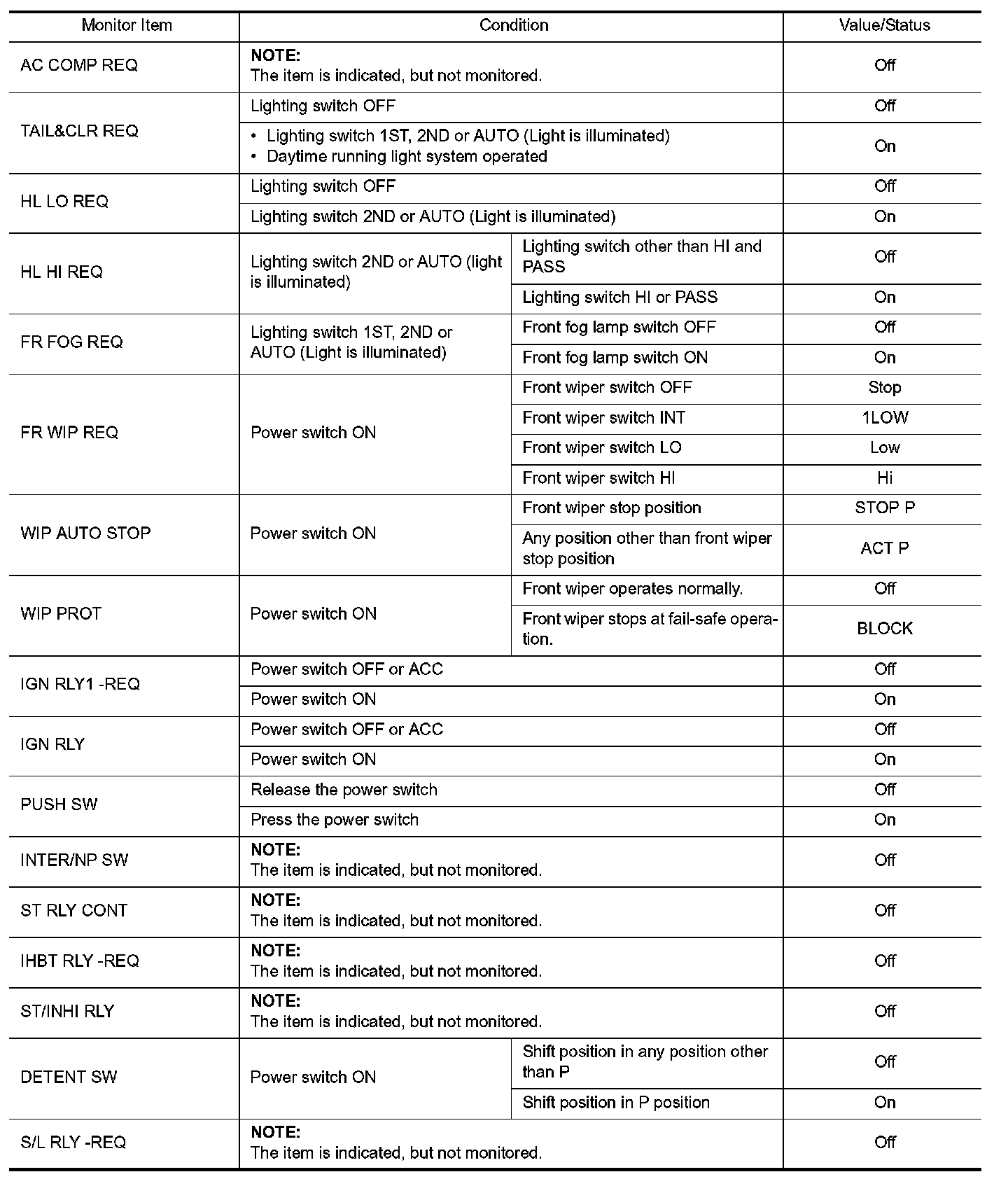

VALUES ON THE DIAGNOSIS TOOL

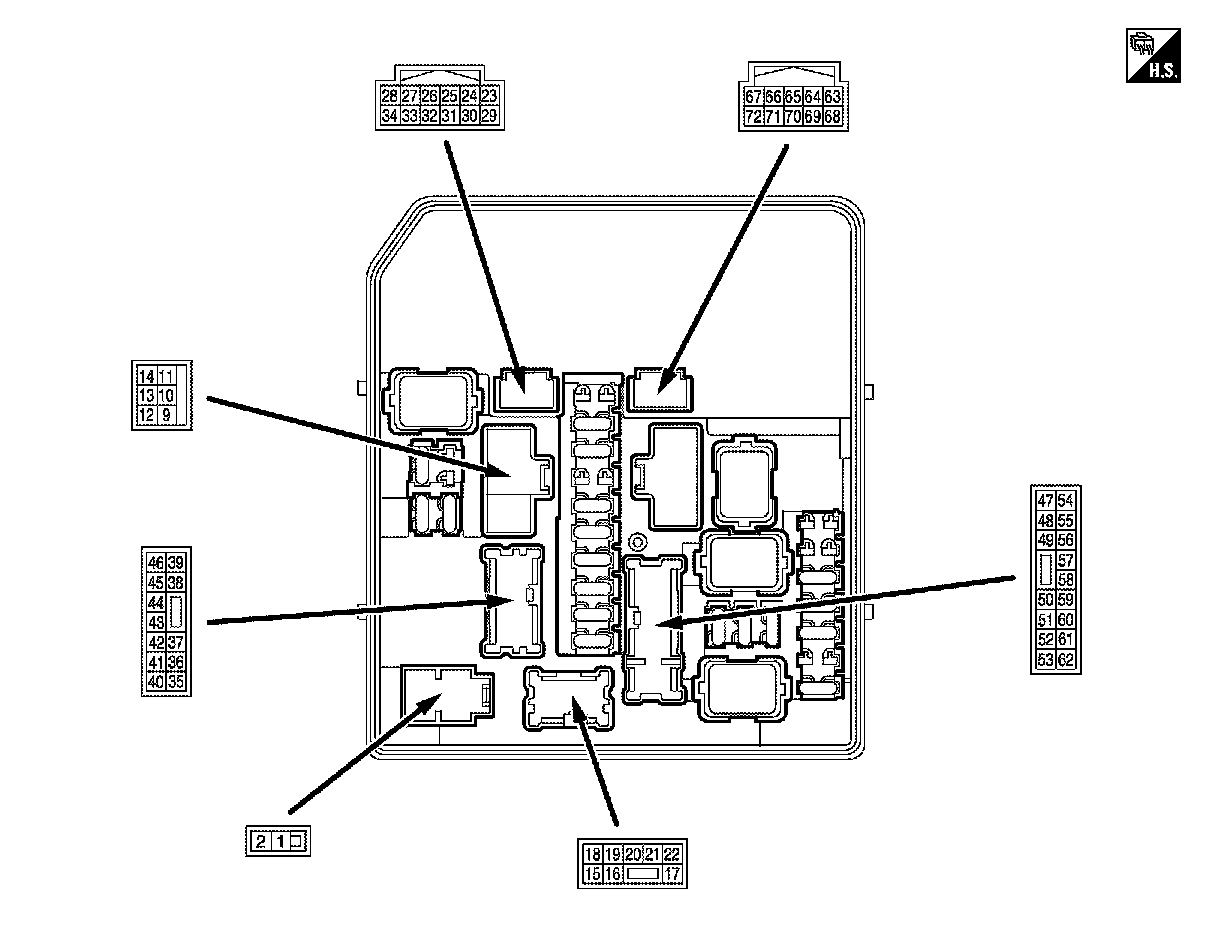

TERMINAL LAYOUT

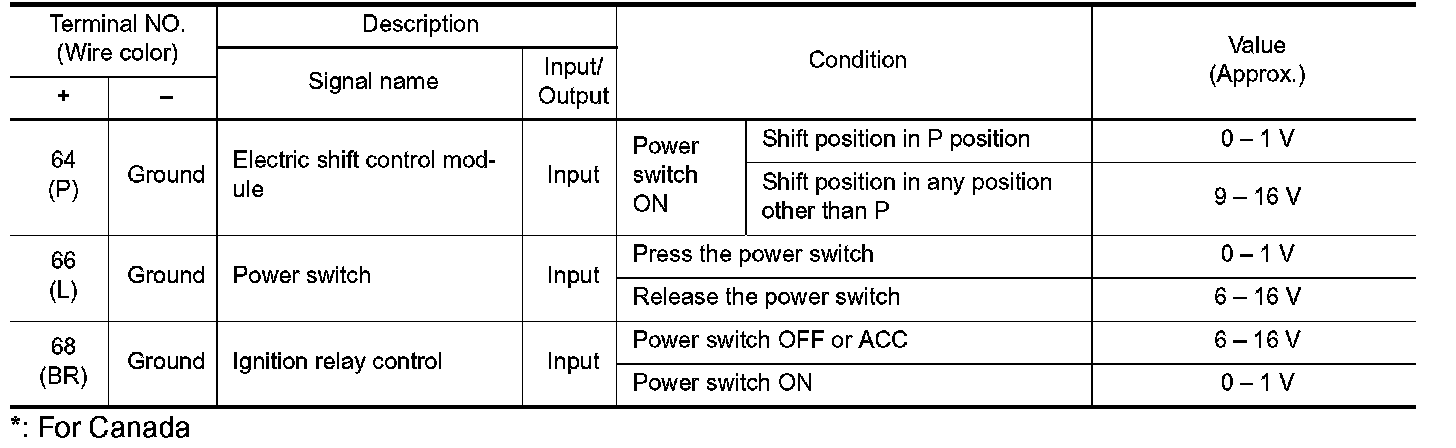

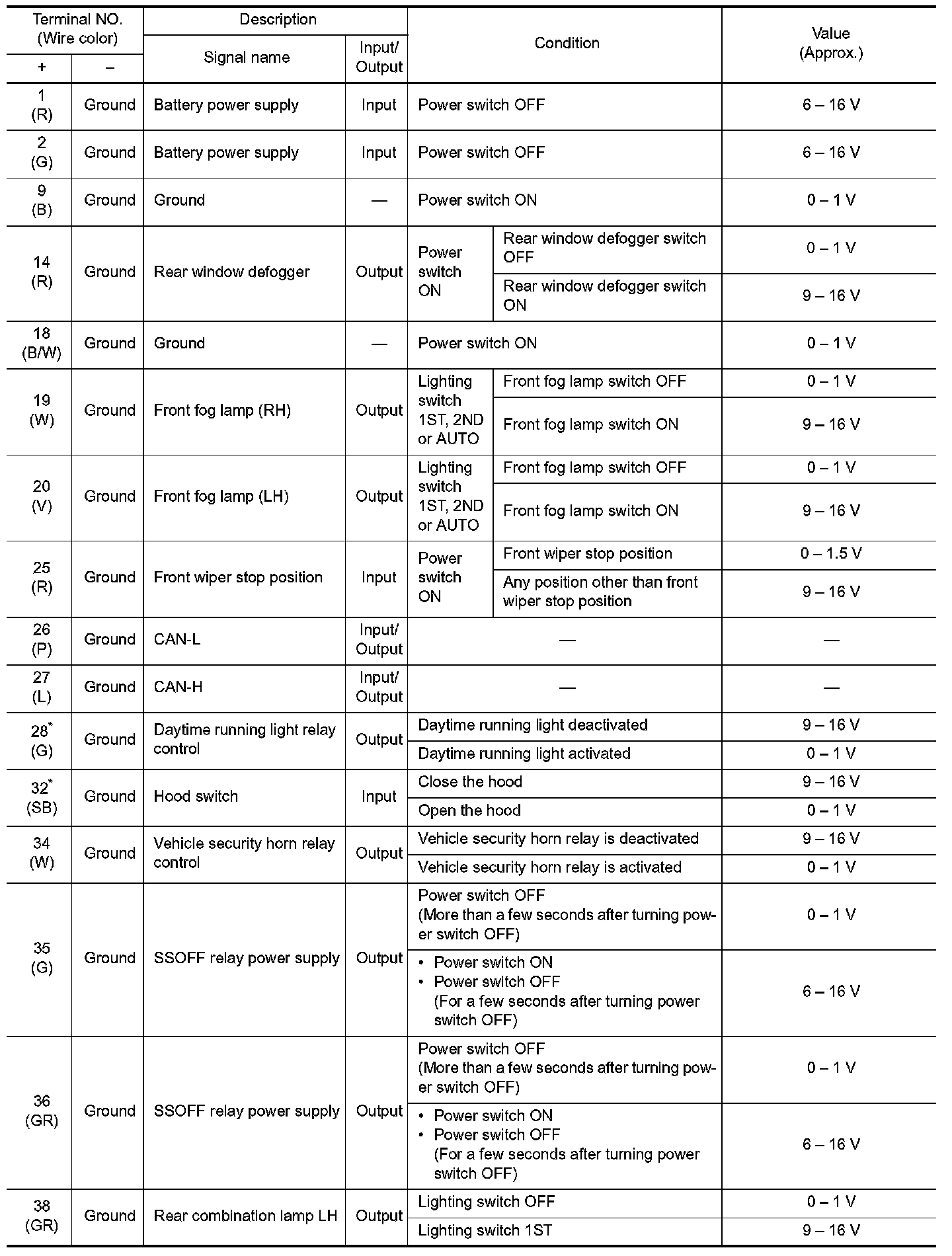

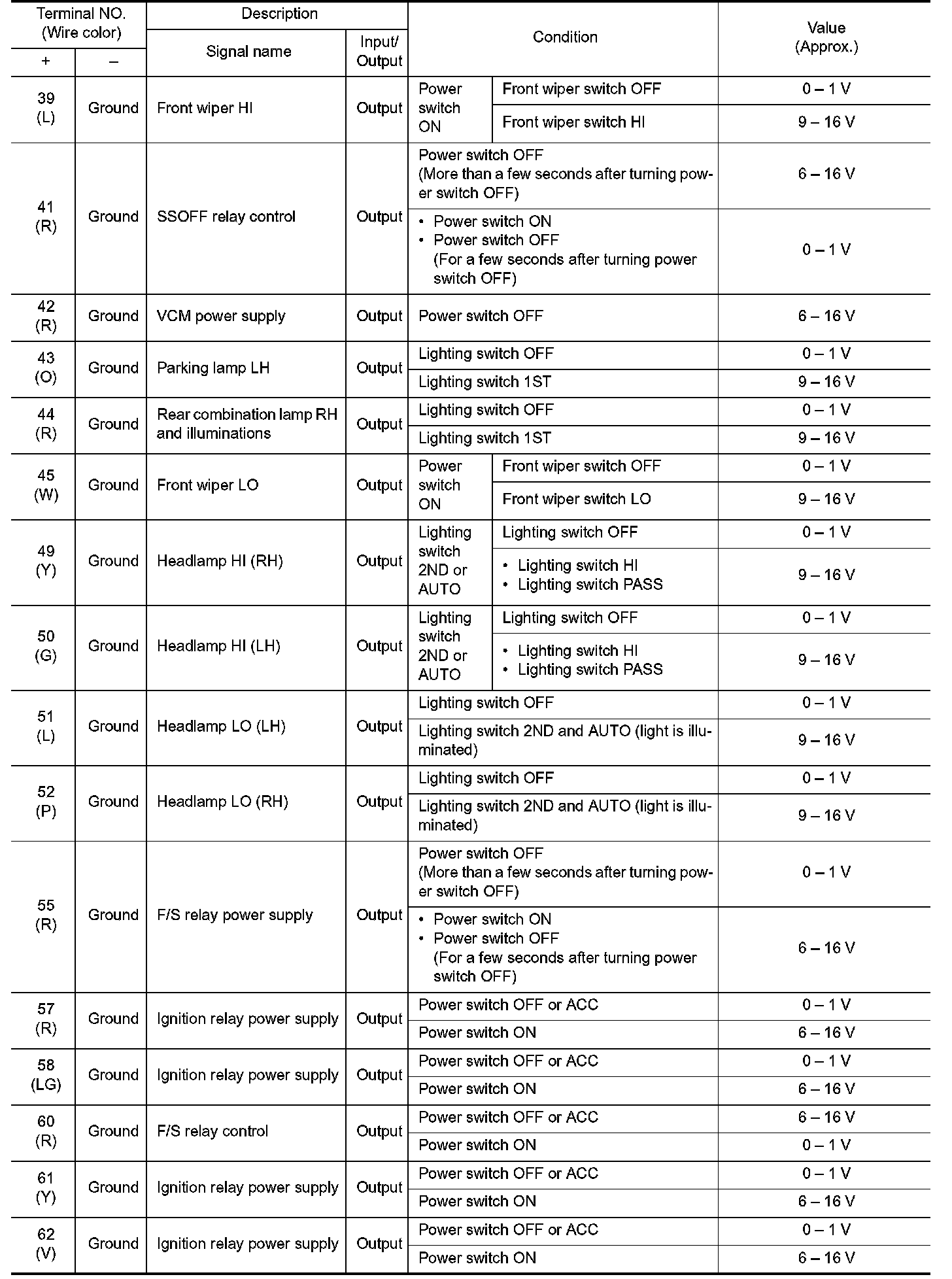

PHYSICAL VALUES
















*: For Canada
