System Diagram

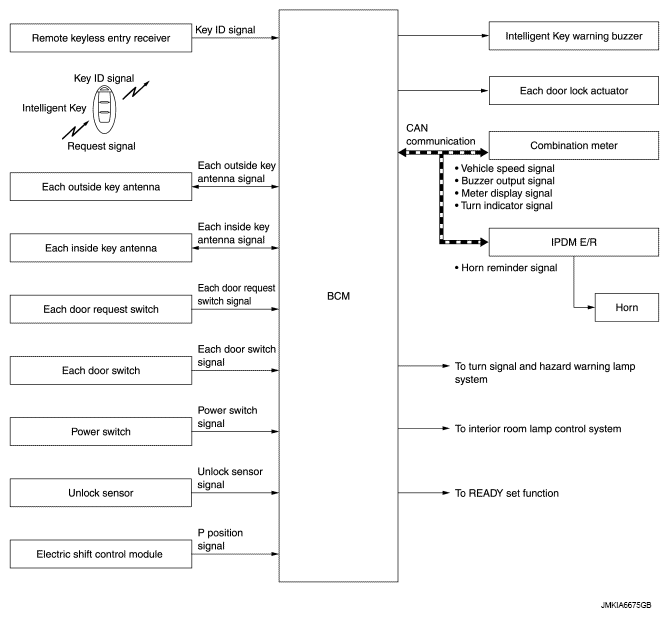

Fig 1: Intelligent Key - System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verification using two-way communication between the Intelligent Key and the vehicle (BCM).
NOTE: The driver should always carry the Intelligent Key
The settings for each function can be changed with CONSULT.
If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be registered.

It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

Function	Description	Refer
Door lock	Lock/unlock can be performed by pressing the request switch	DOOR LOCK FUNCTION: SYSTEM DESCRIPTION
Back door opener	The back door can be opened by carrying the Intelligent Key and pressing the back door opener switch	BACK DOOR OPEN FUNCTION
Remote keyless entry	Lock/unlock can be performed by pressing the remote controller button of the Intelligent Key	REMOTE KEYLESS ENTRY FUNCTION
Key reminder	The key reminder buzzer sounds a warning if the door is locked with the key left inside the vehicle	KEY REMINDER FUNCTION: SYSTEM DESCRIPTION
Warning	If an action that does not meet the operating condition of the Intelligent Key system is taken, the buzzer sounds to inform the driver	WARNING FUNCTION
READY set function	The vehicle can be set READY while carrying the Intelligent Key	SYSTEM
Panic alarm	When Intelligent Key panic alarm button is pressed, horn sounds	VEHICLE SECURITY SYSTEM: SYSTEM DESCRIPTION (EXCEPT FOR CANADA)
Interior room lamp control	Interior room lamp is controlled according to door lock/unlock state	SYSTEM
