System Diagram

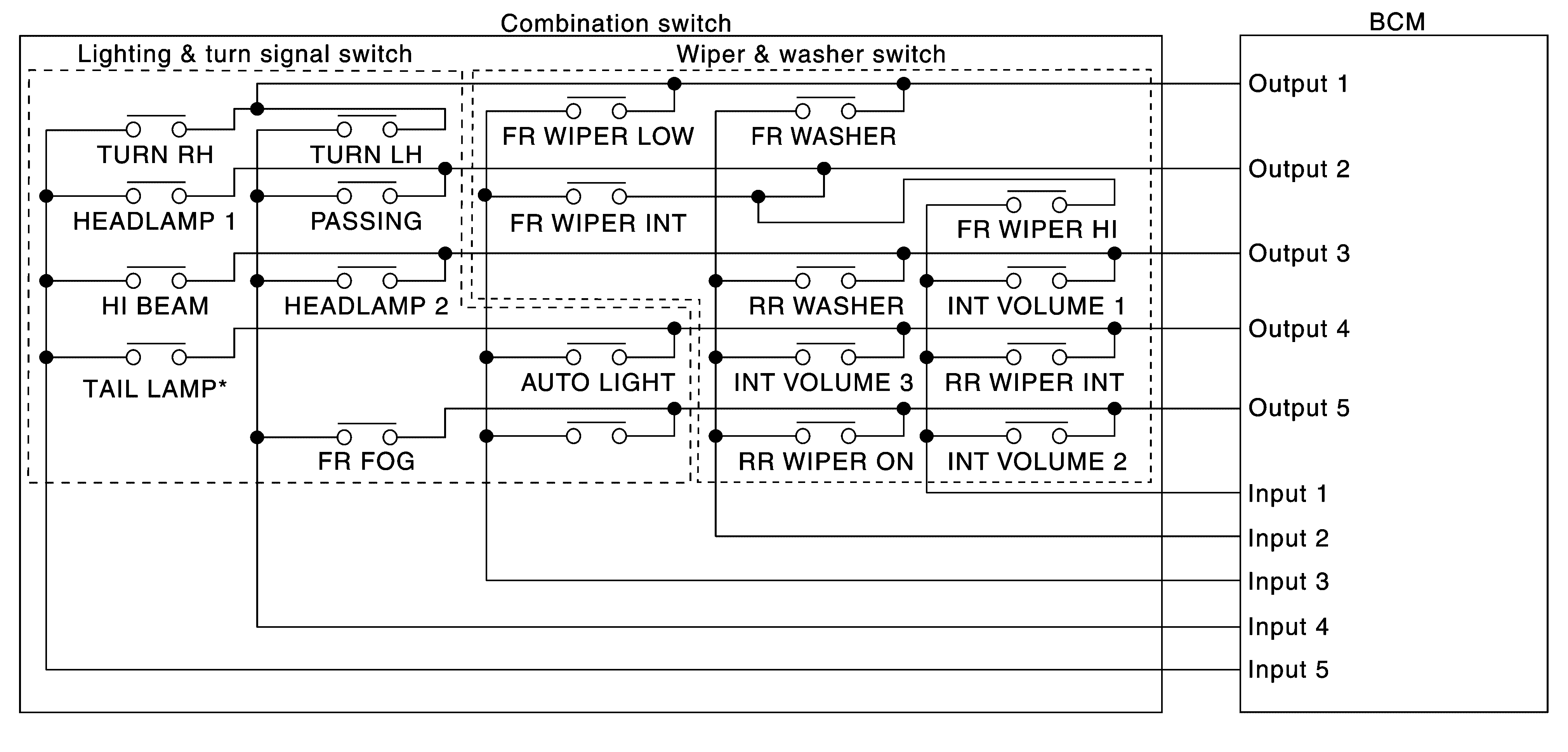

Fig 1: Combination Switch Reading - System Diagram
G06934763
NOTE: *: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
