INTELLIGENT KEY SYSTEM/READY SET FUNCTION: Circuit Diagram

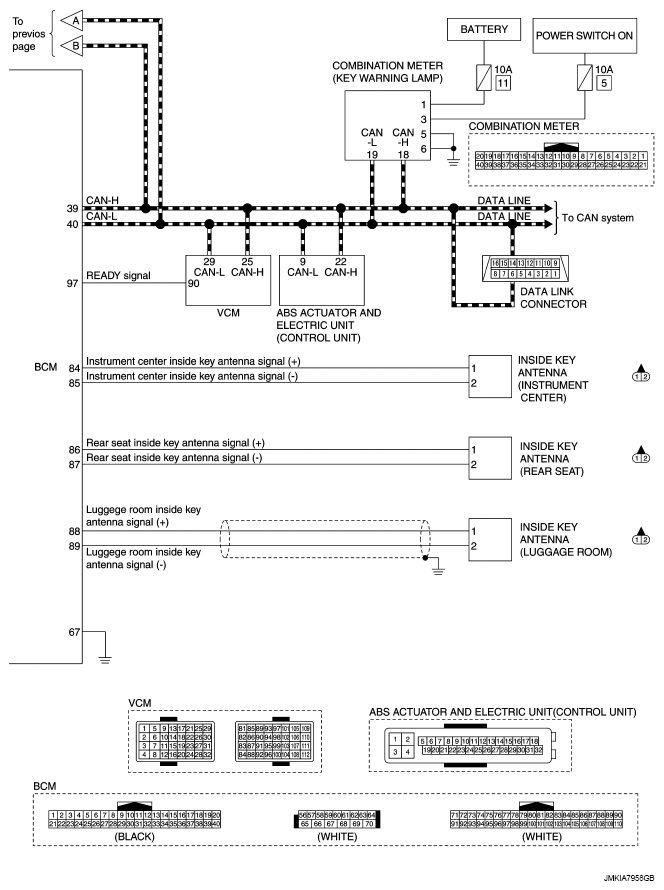

Fig 1: Intelligent Key System/Ready Set Function - Circuit Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

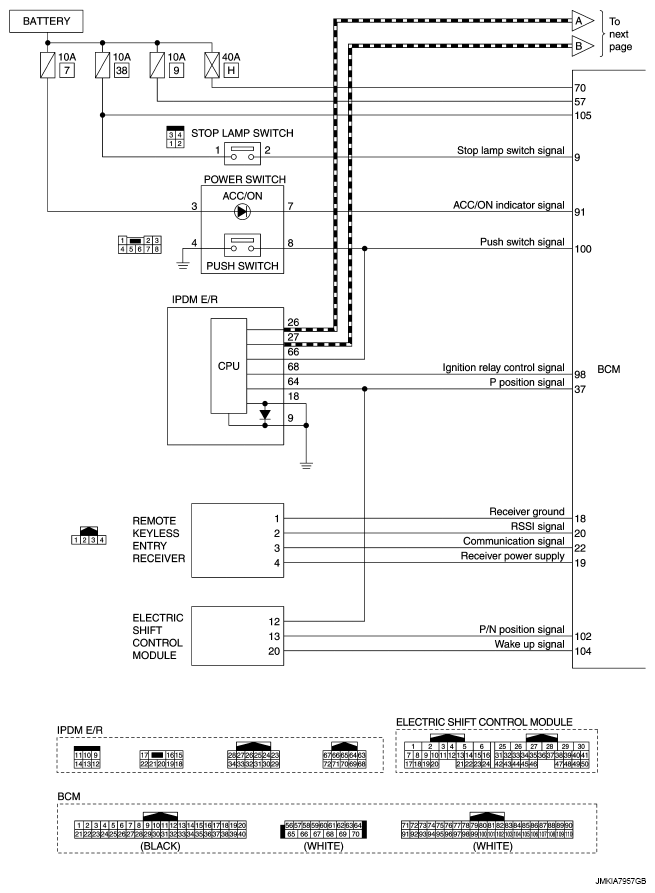

Fig 2: Intelligent Key System/Ready Set Function - Circuit Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
