Repair and Diagnosis
>>
Hybrid/Electric Powertrain
>>
Electric Converters and Controllers
>>
EV Control System
>>
System Description
>>
System
>>
EV System Start Up Control
>>
EV SYSTEM START UP CONTROL: System Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

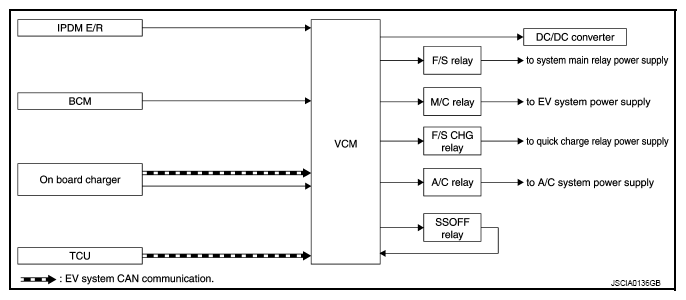

Fig 1: EV System Start Up Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
