Control System Connector Terminal Identification

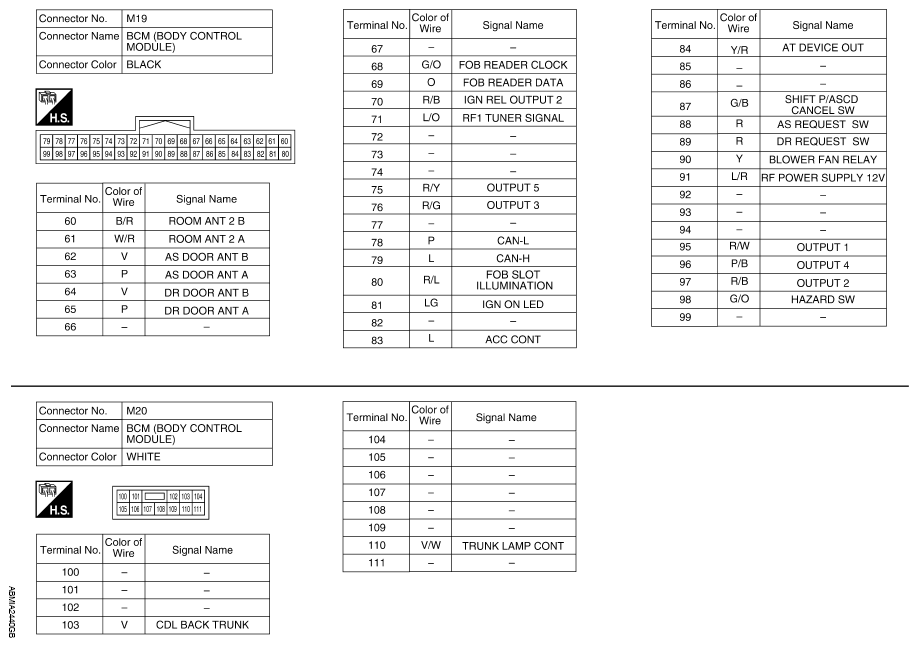

Fig 1: Identifying Body Control Module Connectors (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

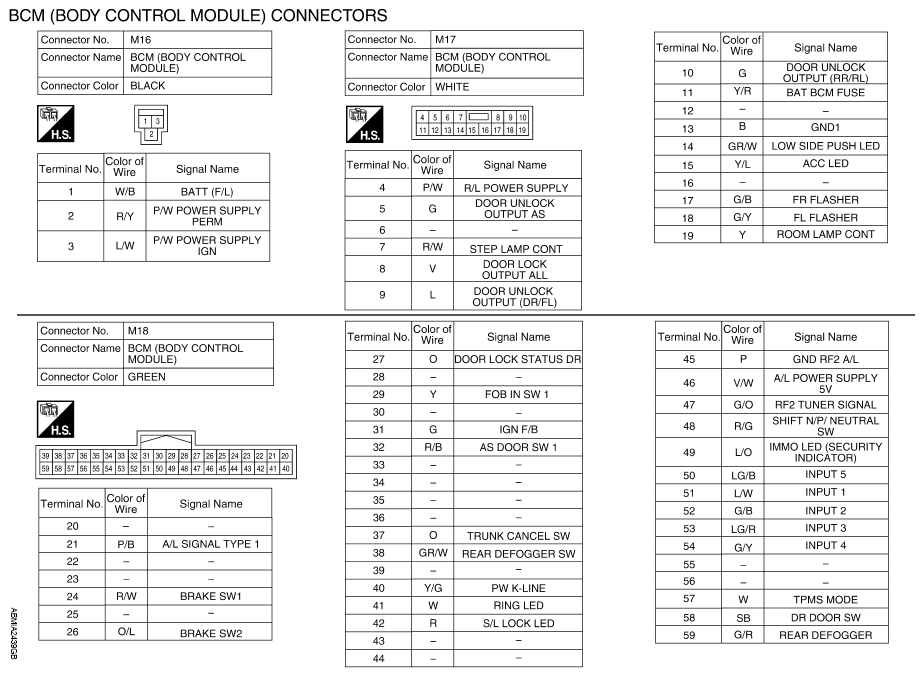

Fig 2: Identifying Body Control Module Connectors (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

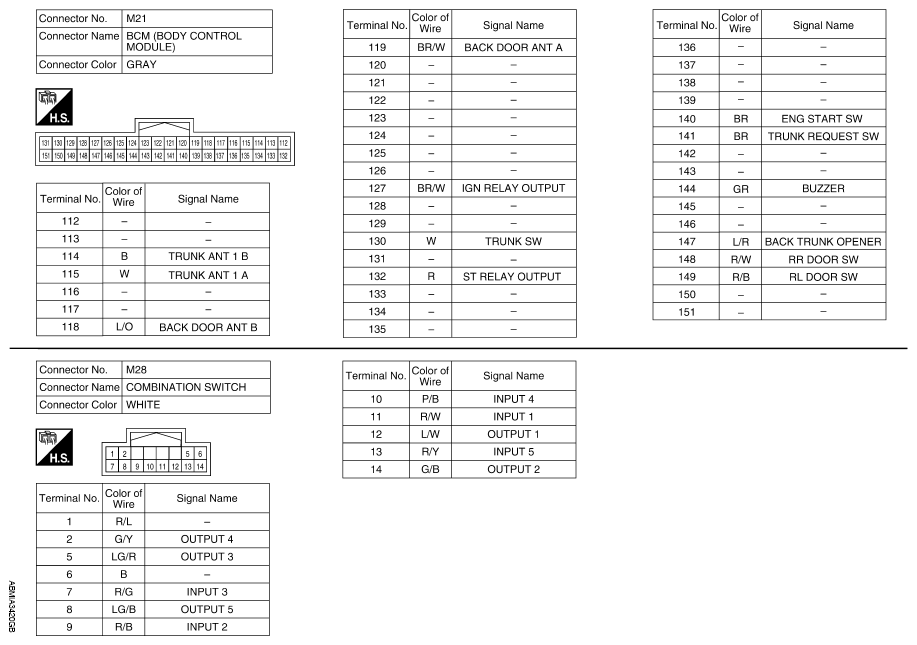

Fig 3: Identifying Body Control Module Connectors (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
