Control System Connector Terminal Identification

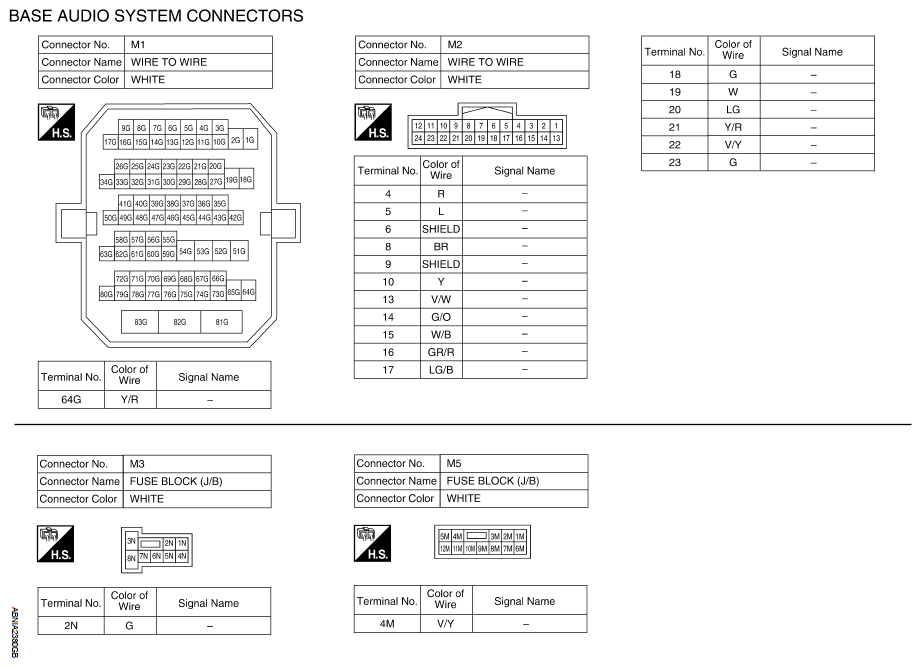

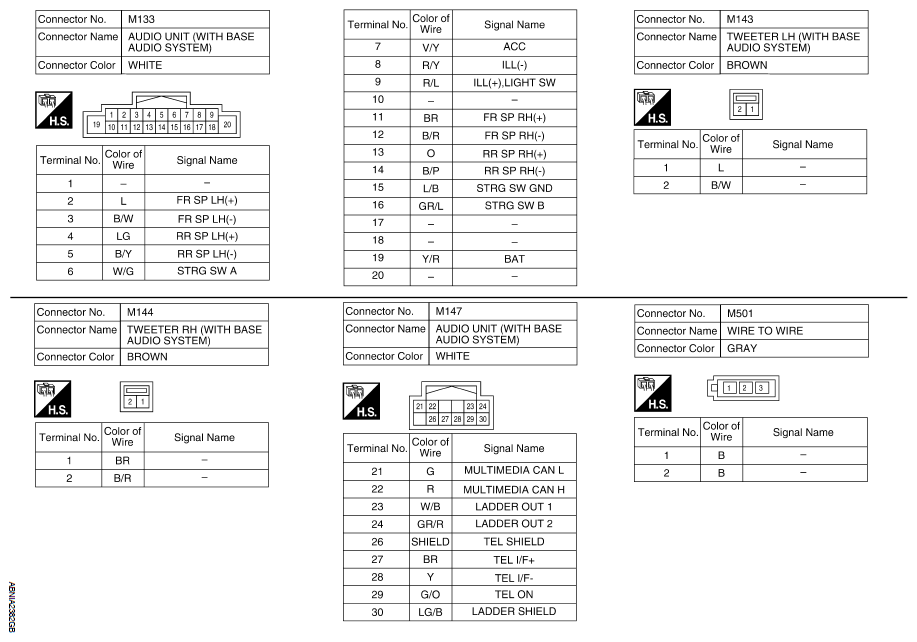

Fig 1: Identifying Base Audio System Connectors (1 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

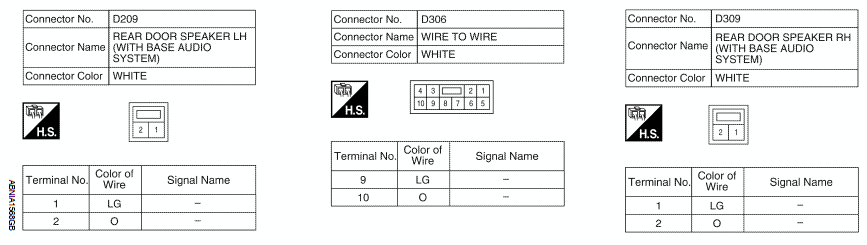

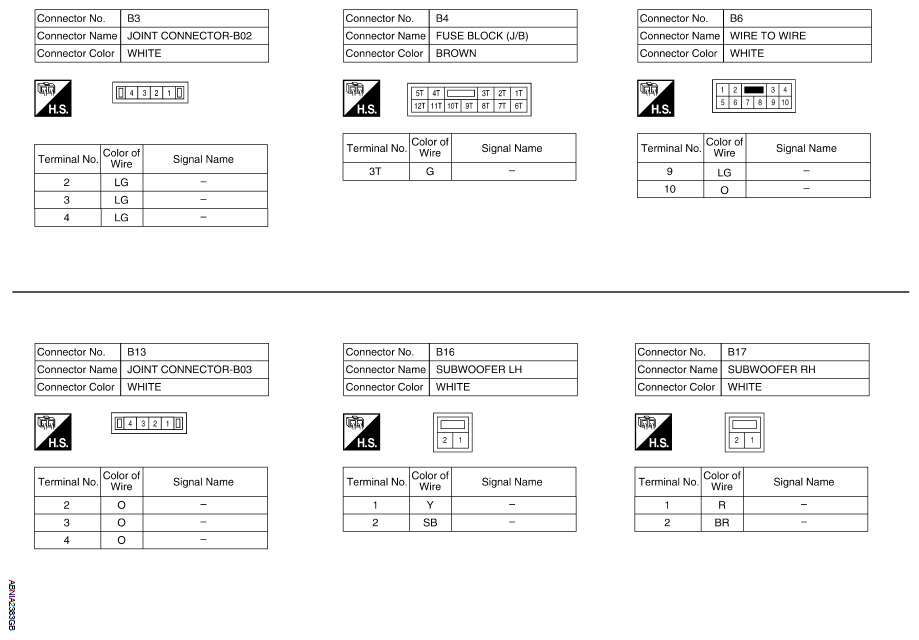

Fig 2: Identifying Base Audio System Connectors (2 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

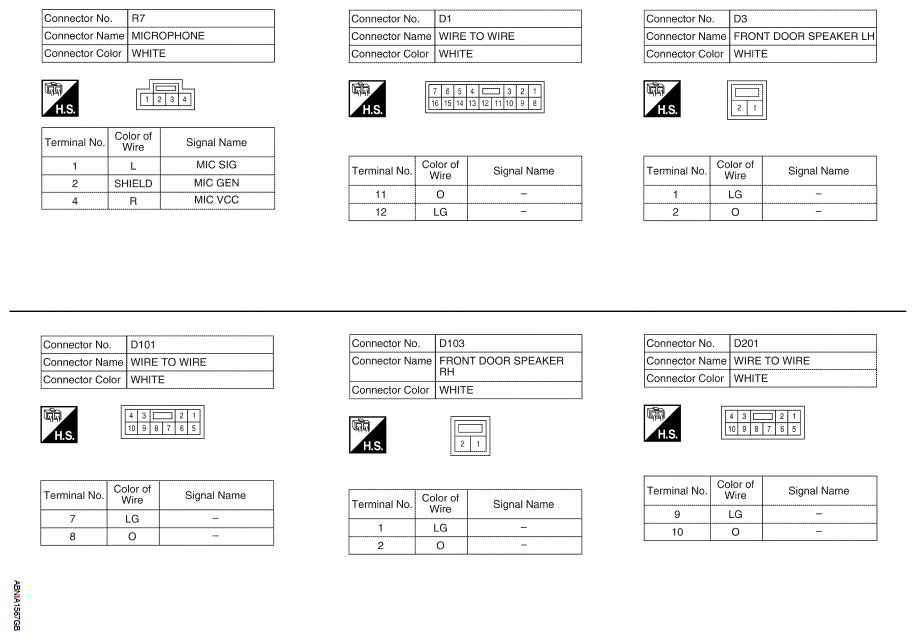

Fig 3: Identifying Base Audio System Connectors (3 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

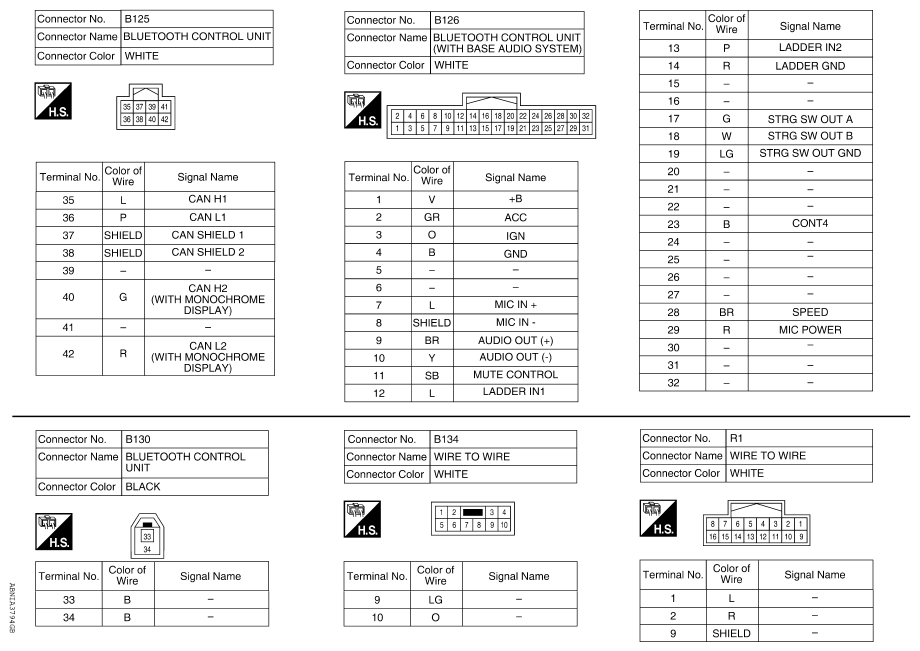

Fig 4: Identifying Base Audio System Connectors (4 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

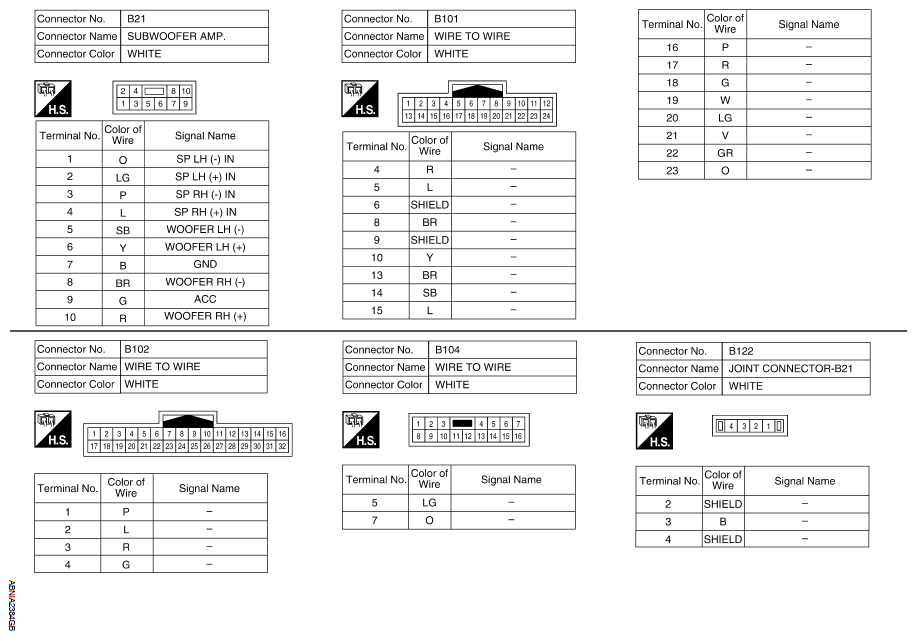

Fig 5: Identifying Base Audio System Connectors (5 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

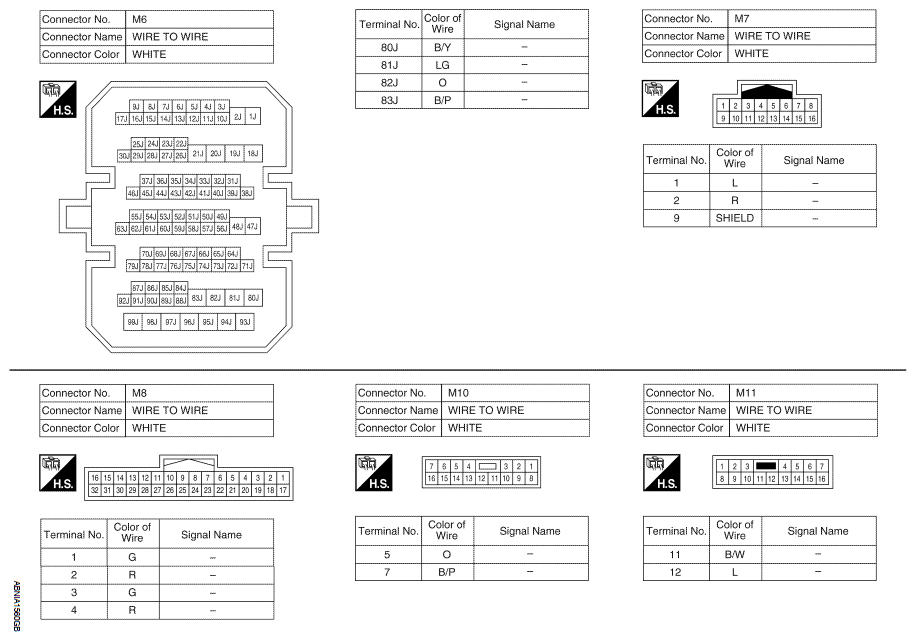

Fig 6: Identifying Base Audio System Connectors (6 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

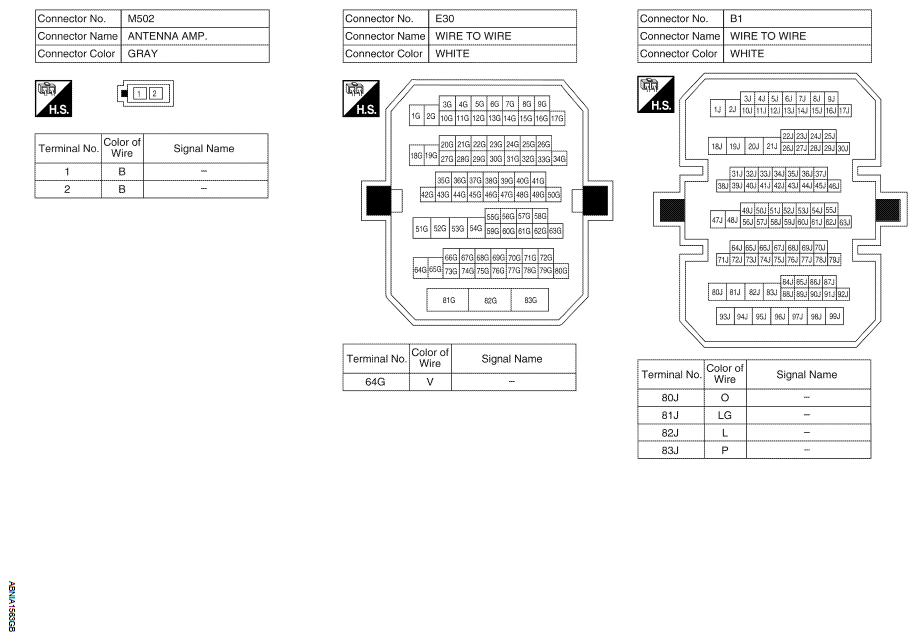

Fig 7: Identifying Base Audio System Connectors (7 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

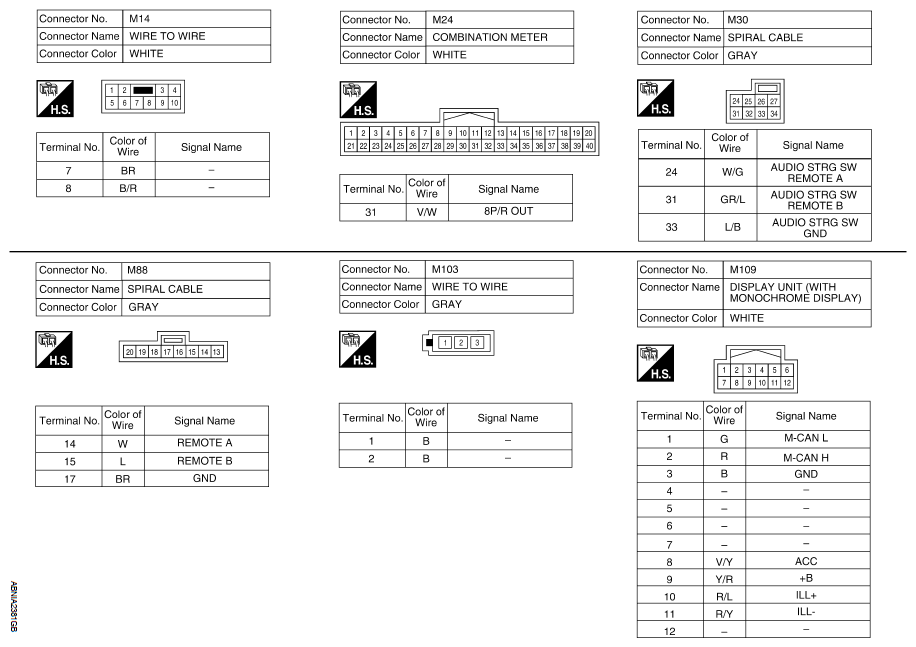

Fig 8: Identifying Base Audio System Connectors (8 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Base Audio System Connectors (9 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Base Audio System Connectors (10 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.
