Control System Connector Terminal Identification

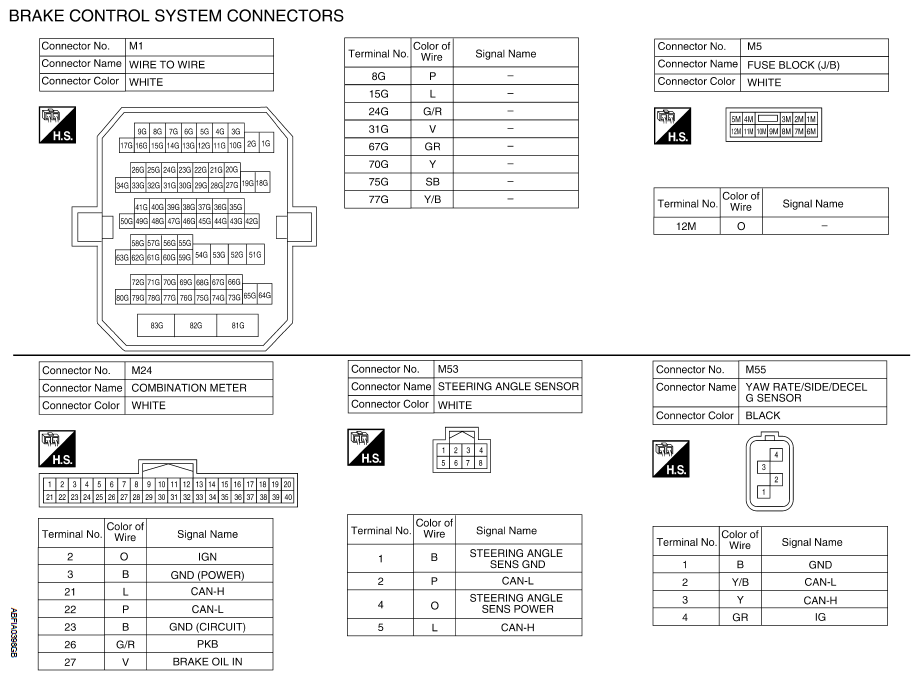

Fig 1: Identifying Brake Control System Connectors (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

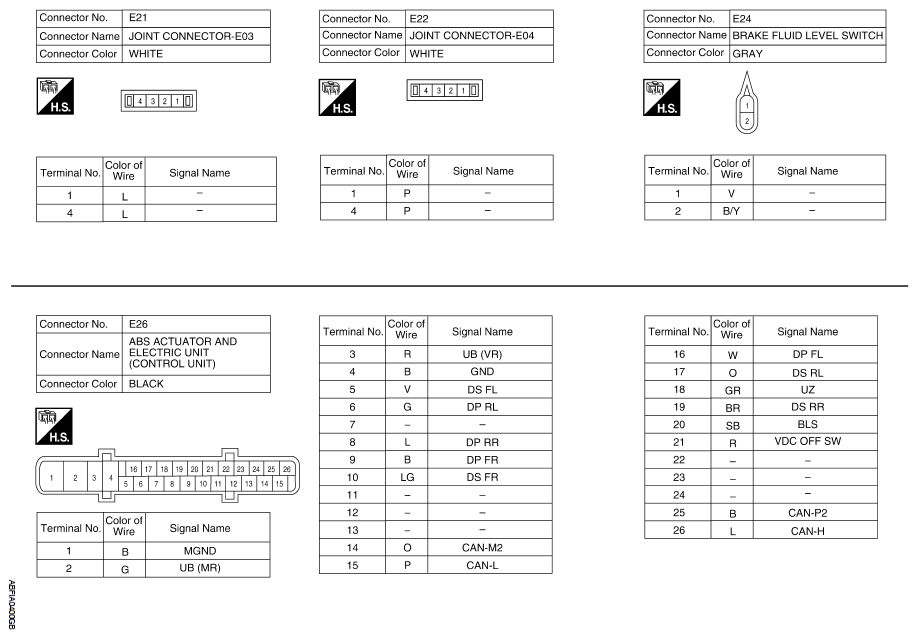

Fig 2: Identifying Brake Control System Connectors (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

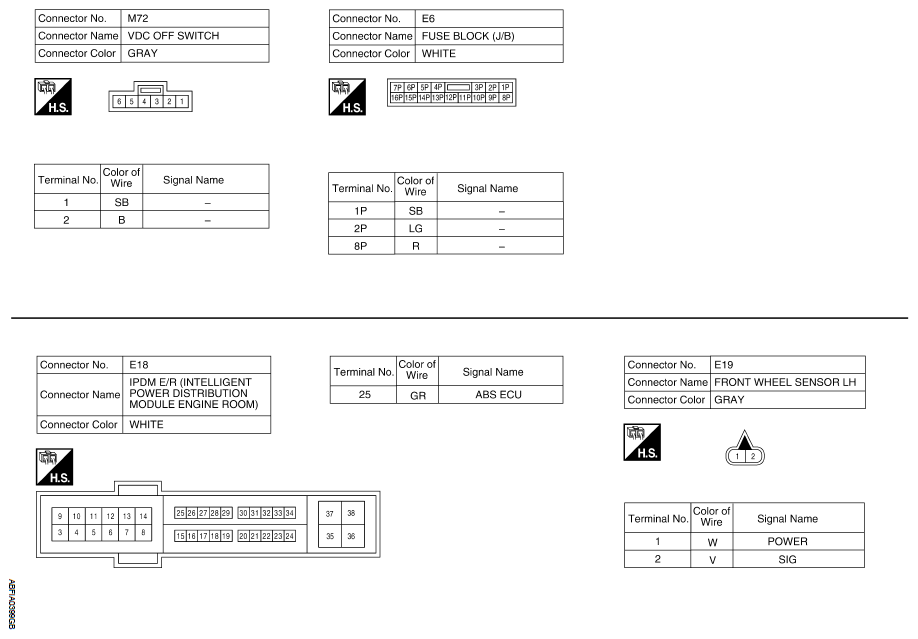

Fig 3: Identifying Brake Control System Connectors (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

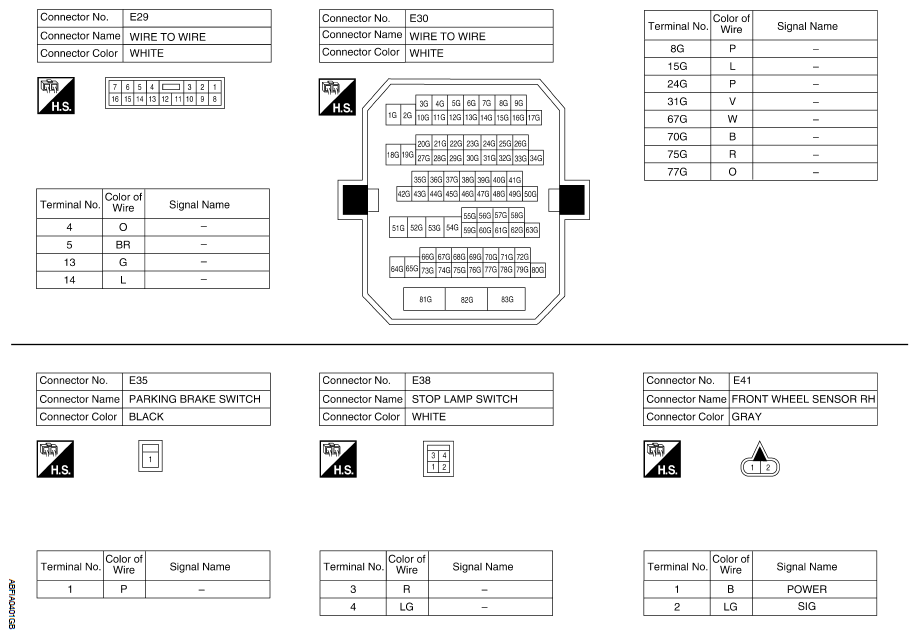

Fig 4: Identifying Brake Control System Connectors (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

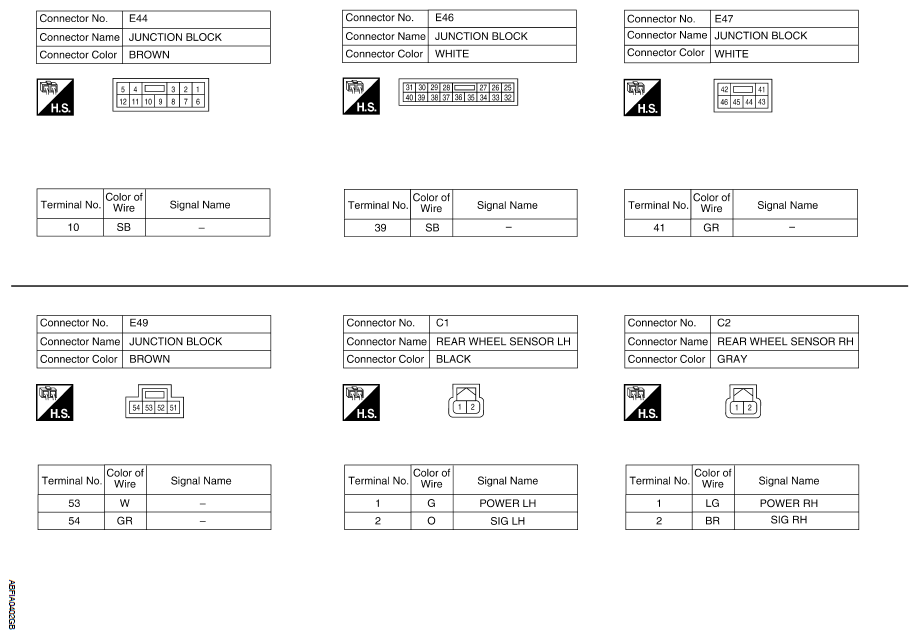

Fig 5: Identifying Brake Control System Connectors (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

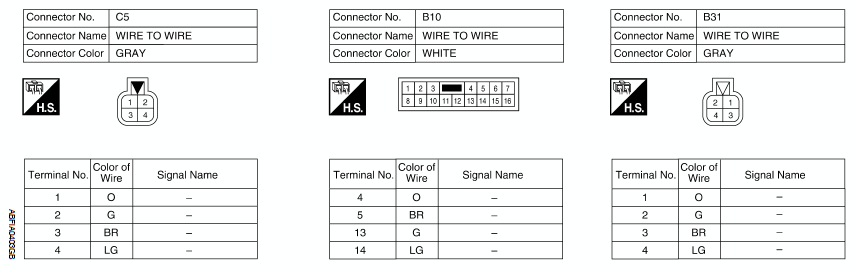

Fig 6: Identifying Brake Control System Connectors (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
