Control System Connector Terminal Identification

Fig 1: Identifying Intelligent Power Distribution Module Engine Room Connectors (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

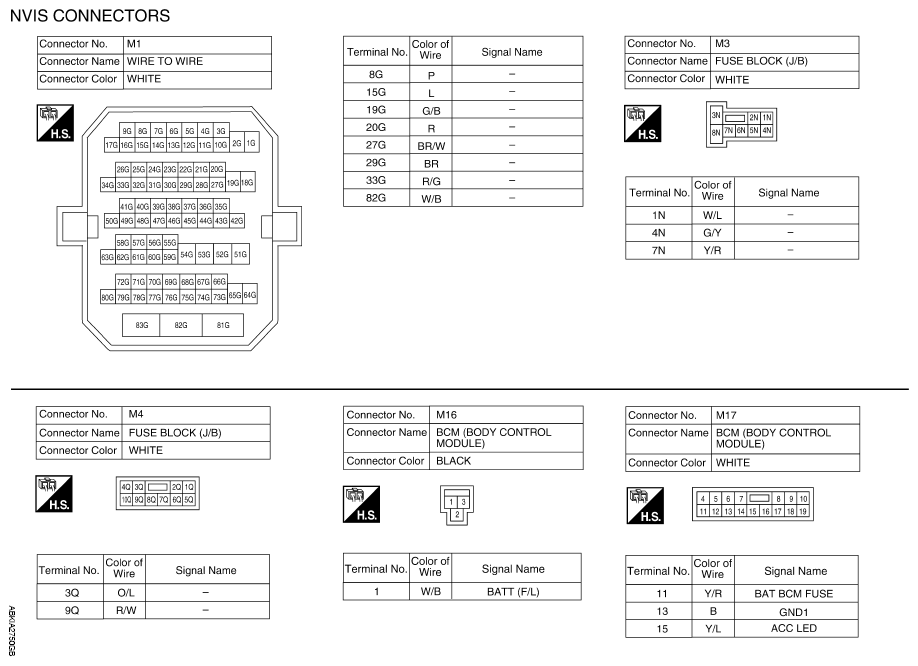

Fig 2: Identifying Intelligent Power Distribution Module Engine Room Connectors (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

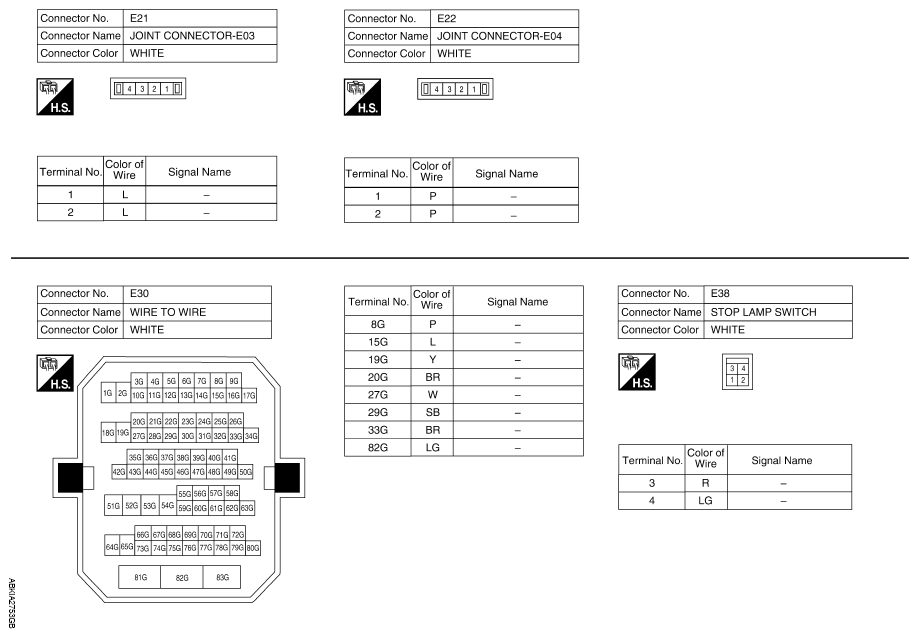

Fig 3: Identifying Intelligent Power Distribution Module Engine Room Connectors (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

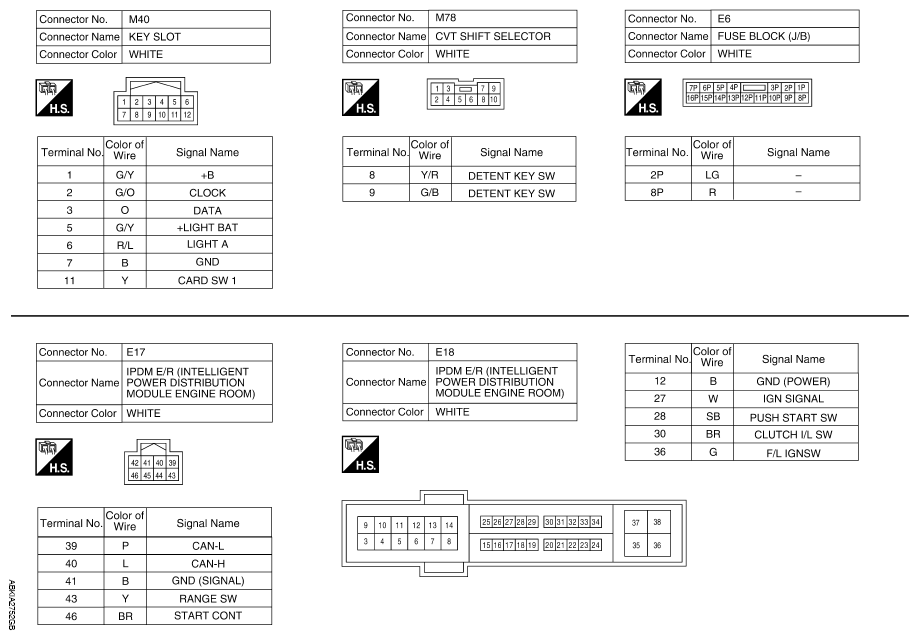

Fig 4: Identifying Intelligent Power Distribution Module Engine Room Connectors (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Intelligent Power Distribution Module Engine Room Connectors (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
