Control System Connector Terminal Identification

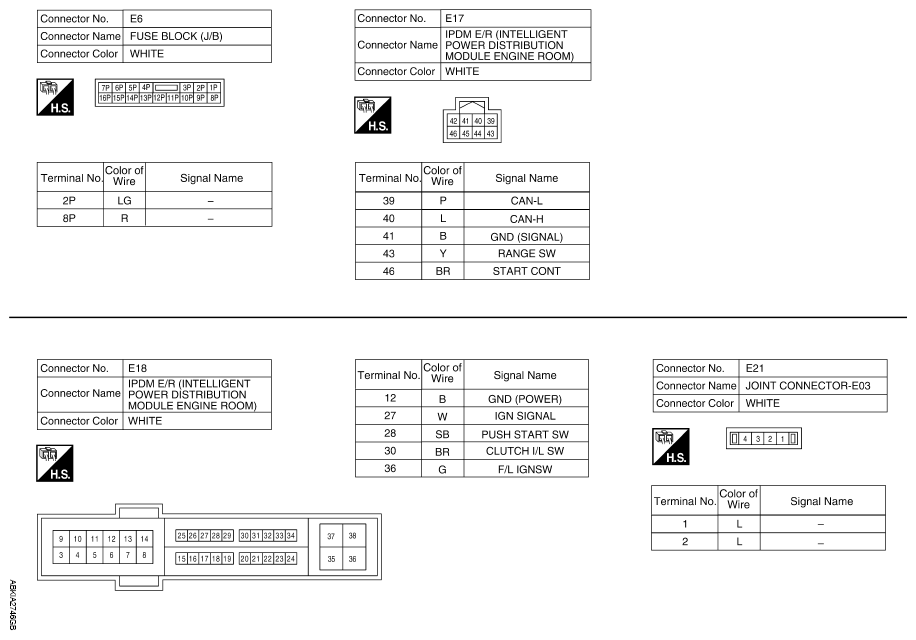

Fig 1: Identifying Intelligent Key System/Engine Start Function Connectors (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

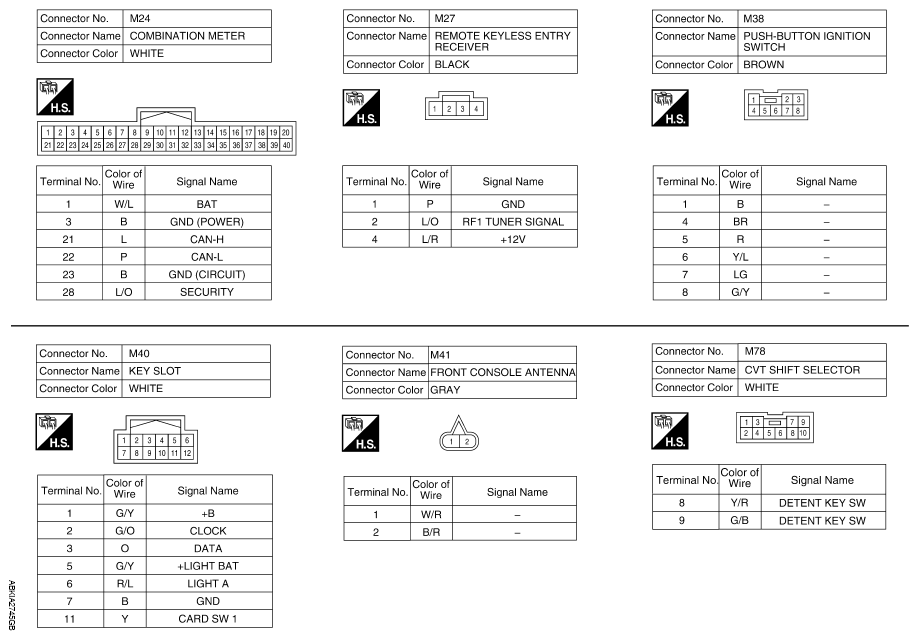

Fig 2: Identifying Intelligent Key System/Engine Start Function Connectors (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

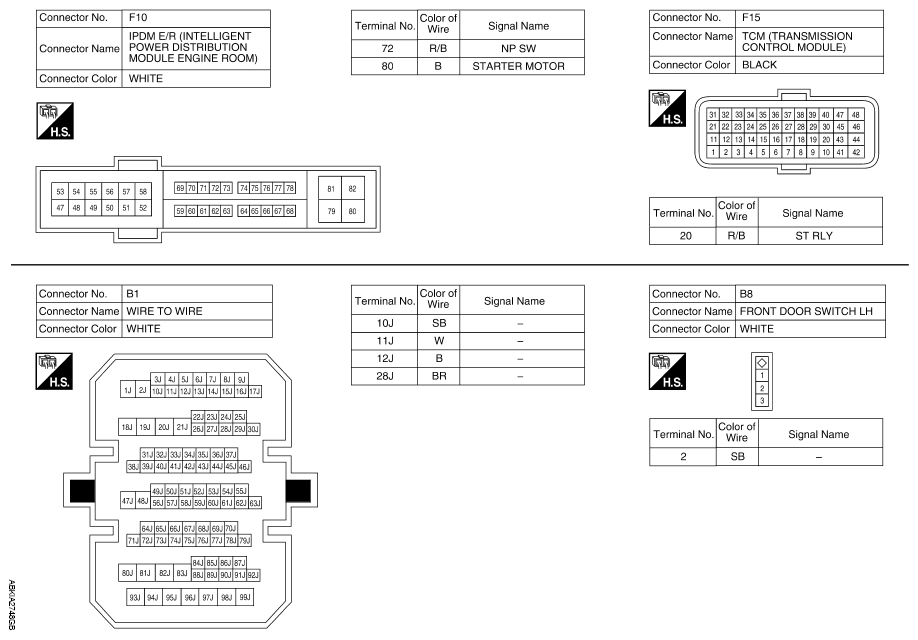

Fig 3: Identifying Intelligent Key System/Engine Start Function Connectors (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

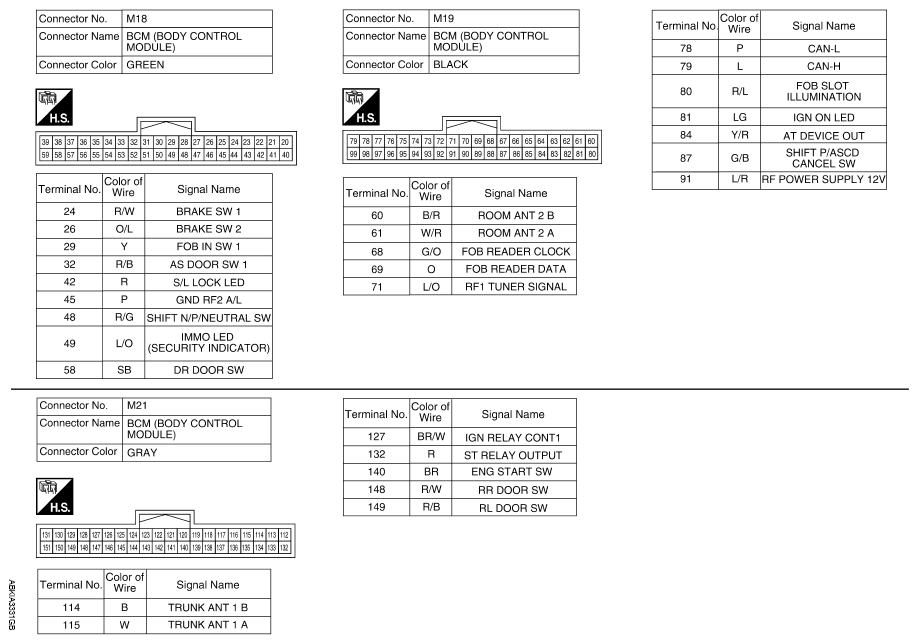

Fig 4: Identifying Intelligent Key System/Engine Start Function Connectors (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

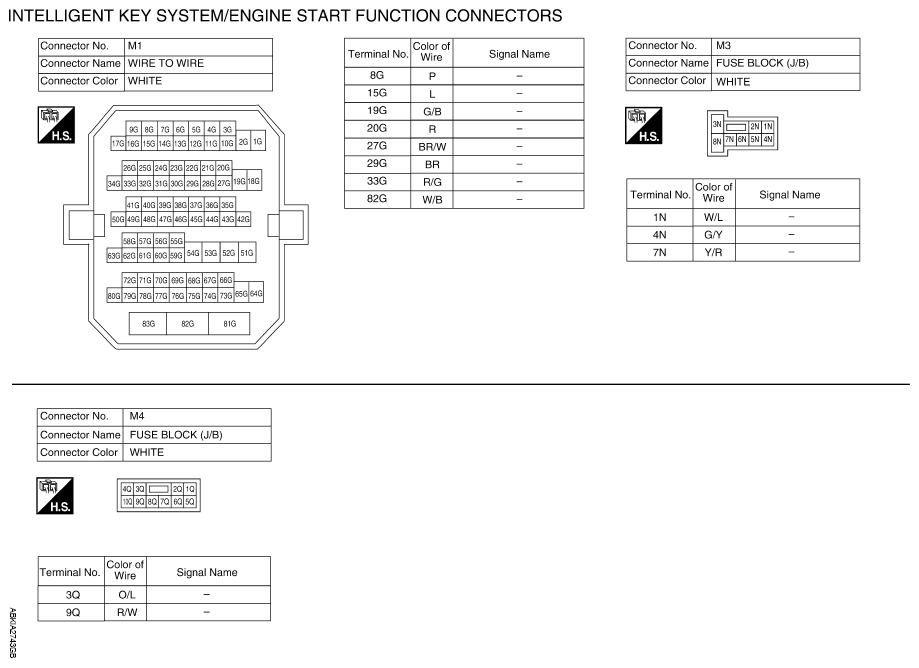

Fig 5: Identifying Intelligent Key System/Engine Start Function Connectors (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

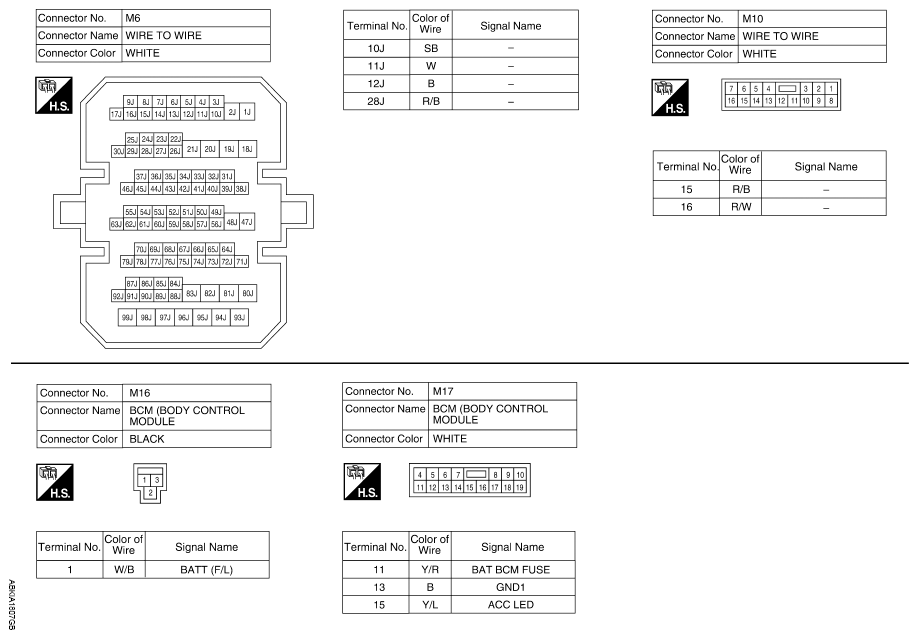

Fig 6: Identifying Intelligent Key System/Engine Start Function Connectors (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

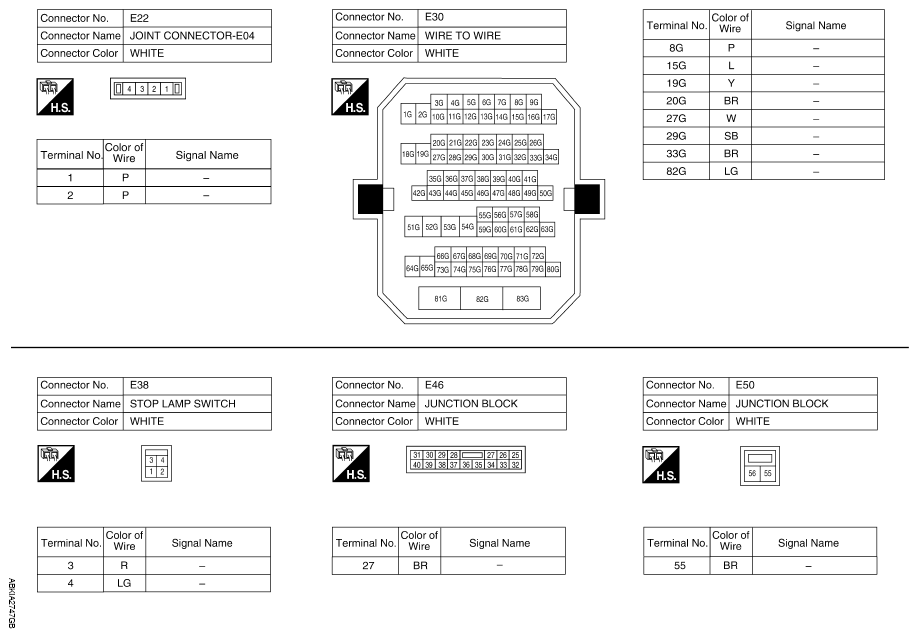

Fig 7: Identifying Intelligent Key System/Engine Start Function Connectors (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

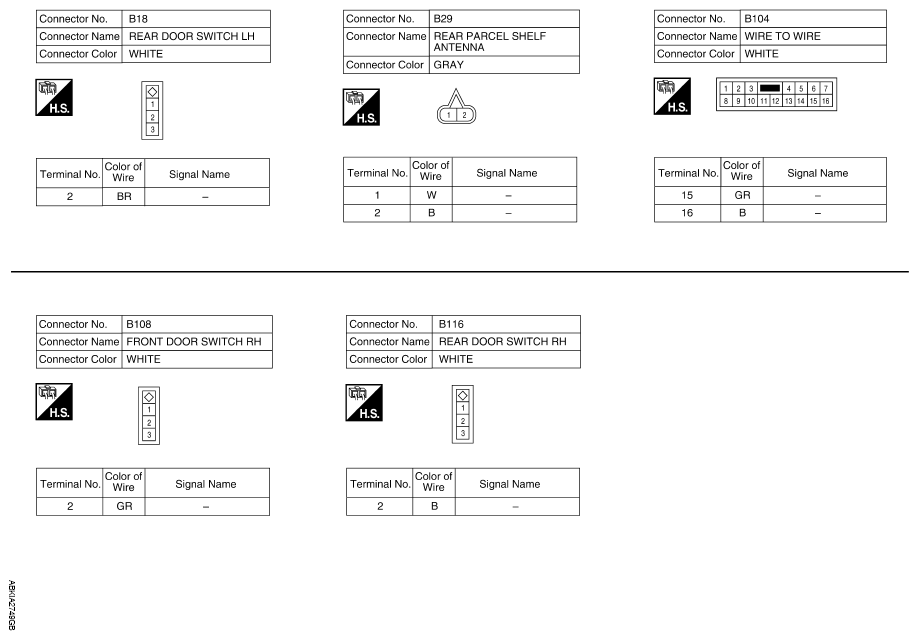

Fig 8: Identifying Intelligent Key System/Engine Start Function Connectors (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
