Component Inspection

CHECK POWER STEERING PRESSURE SENSOR

Check the voltage between ECM terminals under the following conditions.

ECM			Condition	Voltage
Connector	+	-
Connector	Terminal	Terminal
F13	41 (Power steering pressure sensor signal)	48 (Sensor ground)	Steering wheel: Being turned.	0.5 - 4.5 V
F13	41 (Power steering pressure sensor signal)	48 (Sensor ground)	Steering wheel: Not being turned.	0.4 - 0.8 V

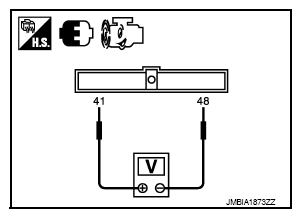

Fig 1: Checking Voltage Between ECM Terminals (Steering Wheel Turned And Not Turned)

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace power steering pressure sensor. Refer to "EXPLODED VIEW ".
