Component Function Check

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM-ENGINE CONTROL SYSTEM- ".

1. PERFORM COMPONENT FUNCTION CHECK
   1. Turn ignition switch ON.
   2. Check the voltage between ECM harness connectors.

      ECM			Condition		Voltage
      Connector	+	-
      	Terminal	Terminal
      E10	102	112	Selector lever	P or N	Battery voltage
      				Except above	Approx. 0 V

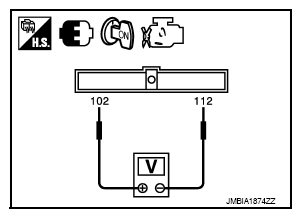

      Fig 1: Checking Voltage Between ECM Harness Connector E10 Terminals

      Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Go to "DIAGNOSIS PROCEDURE ".
