5. Check Throttle Control Motor Relay Input Signal Circuit-I

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.

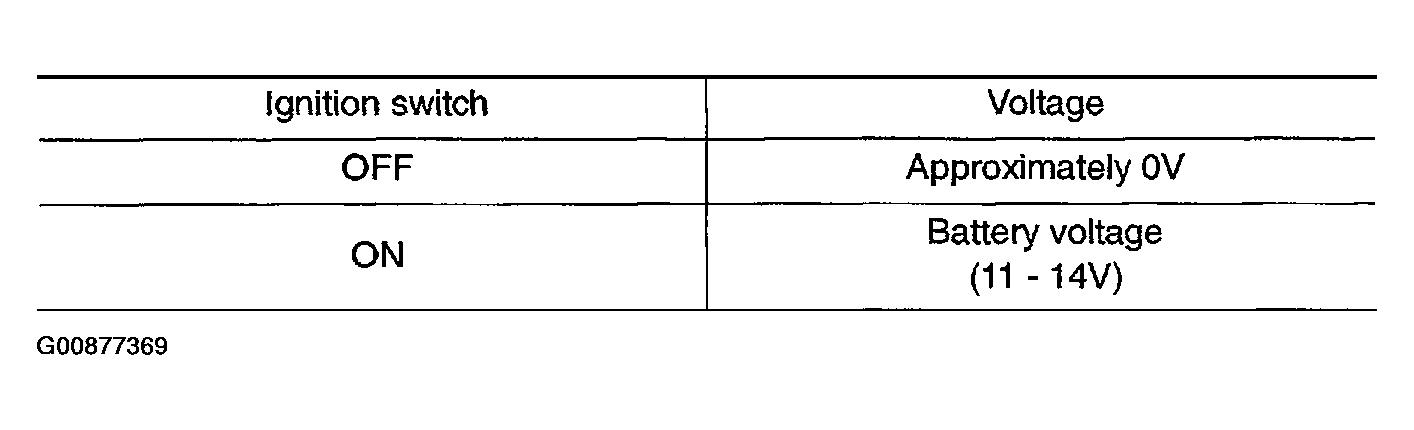

Fig 1: Test Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 8 .
NG: GO TO 6.

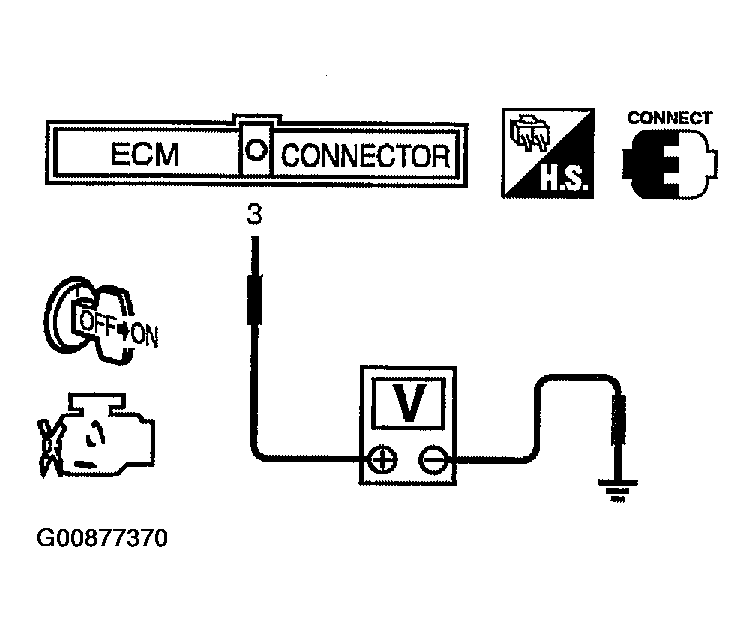

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
