Exploded View

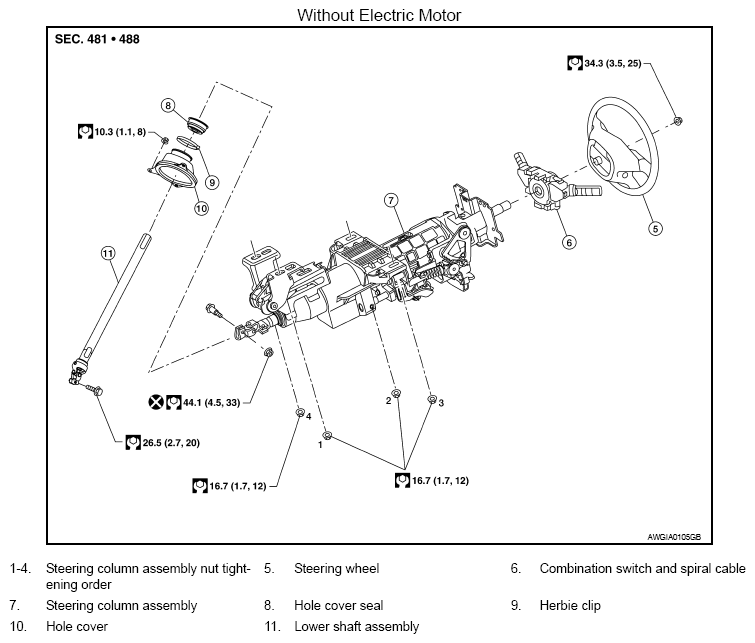

Fig 1: Exploded View Of Steering Column With Torque Specifications (Without Electric Motor)
Courtesy of NISSAN NORTH AMERICA, INC.

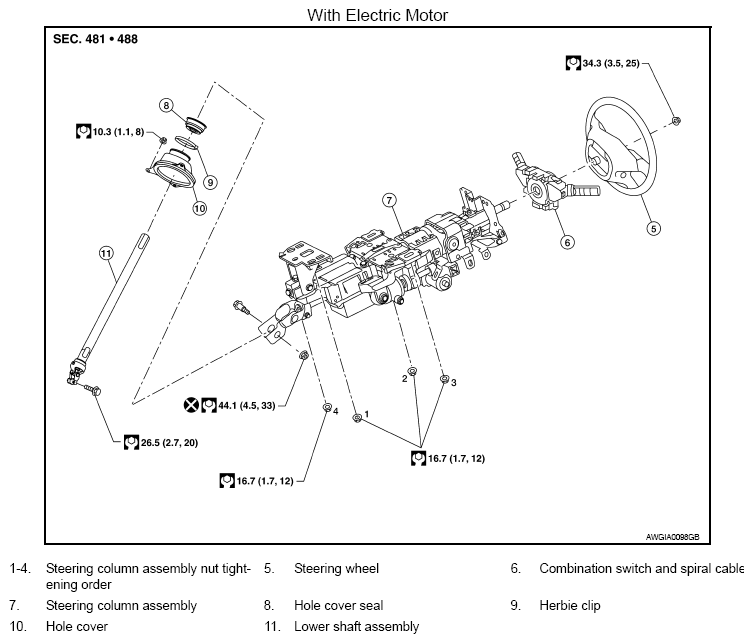

Fig 2: Exploded View Of Steering Column With Torque Specifications (With Electric Motor)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
