System Diagram

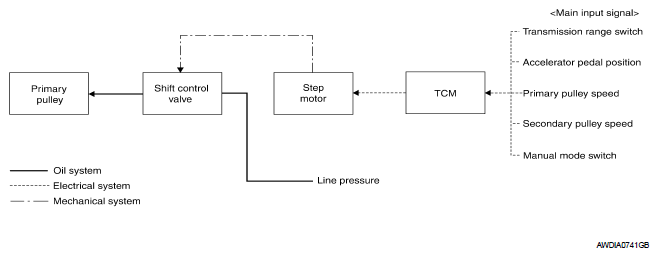

Fig 1: Shift Control System Diagram
G06781103Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: The gear ratio is set for each position separately.
