Work Procedure

CHECK IGNITION TIMING
1. Attach timing light to loop wires as shown in the figure.
  - Timing light (A)
  - <==: Vehicle front

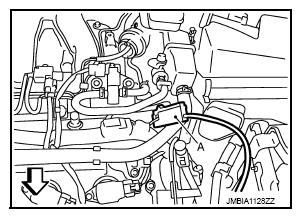

    Fig 1: Identifying Timing Light
    Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  INSPECTION END

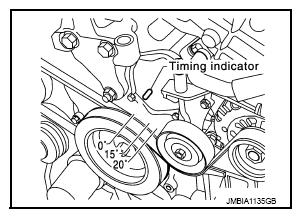

  Fig 2: Identifying Timing Indicator
  Courtesy of NISSAN NORTH AMERICA, INC.
