Component Function Check

1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.

• ←: Vehicle front (Illustration shows the view with intake air duct removed)

Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

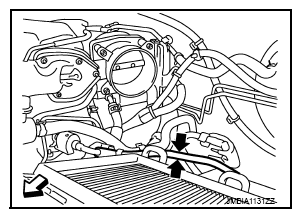

Fig 1: Pinching Fuel Feed Hose

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: INSPECTION END

NO: "DIAGNOSIS PROCEDURE ".
