IGNITION TIMING: Special Repair Requirement

1. Attach timing light to loop wires as shown in the figure.
   • Timing light (A)
   • ←: Vehicle front

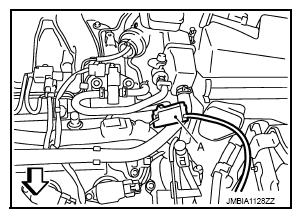

   Fig 1: Identifying Timing Light

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

INSPECTION END

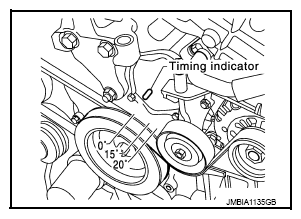

Fig 2: Identifying Timing Indicator

Courtesy of NISSAN NORTH AMERICA, INC.
