Component Parts Location

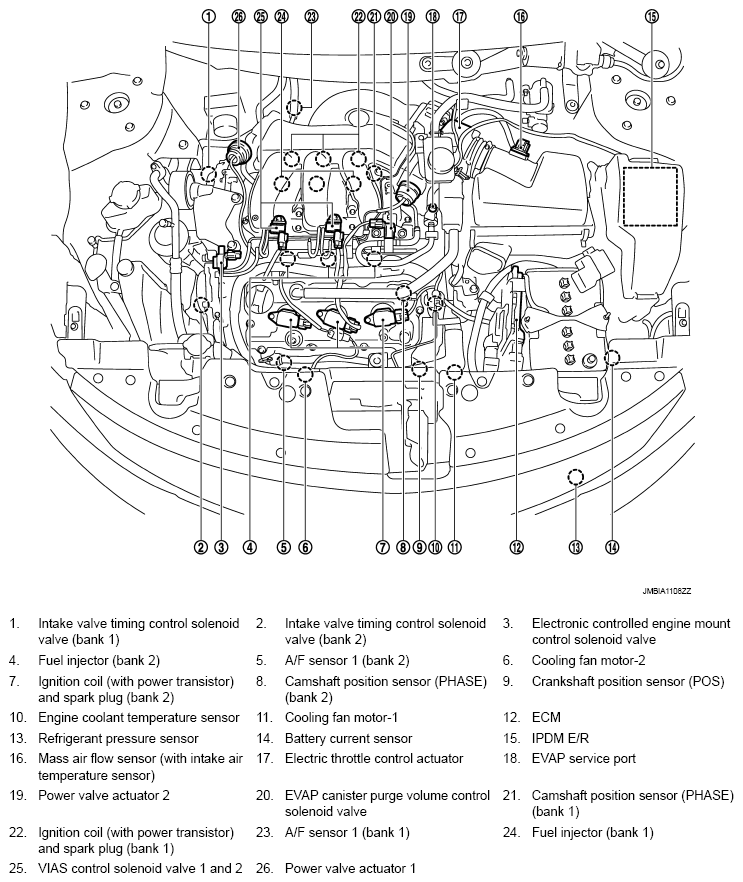

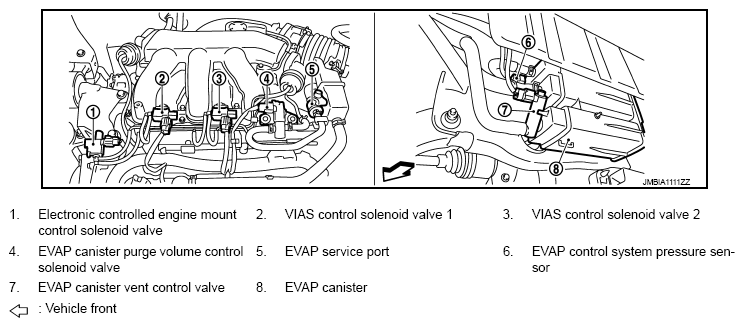

Fig 1: Variable Induction Air System Component Parts Location (1 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

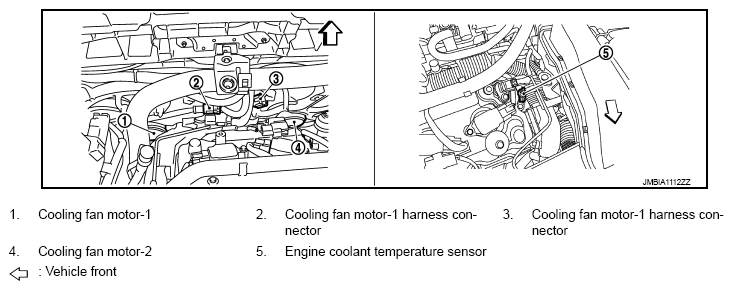

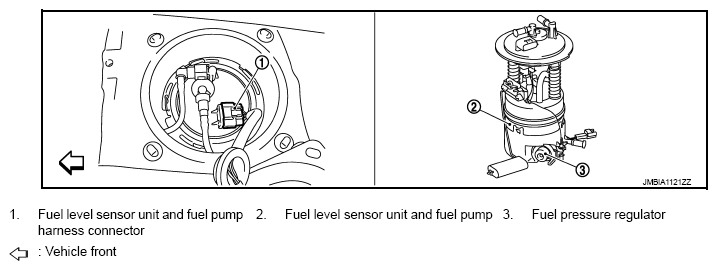

Fig 2: Variable Induction Air System Component Parts Location (2 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

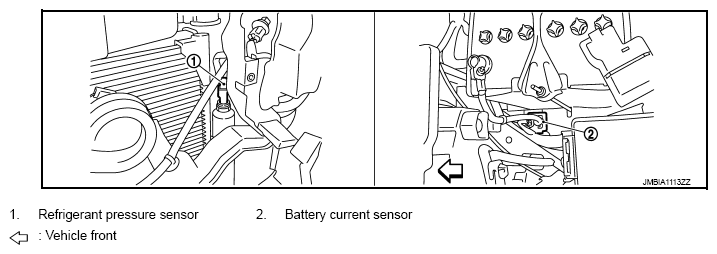

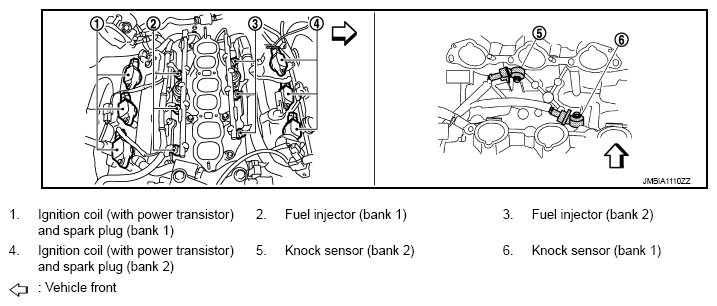

Fig 3: Variable Induction Air System Component Parts Location (3 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

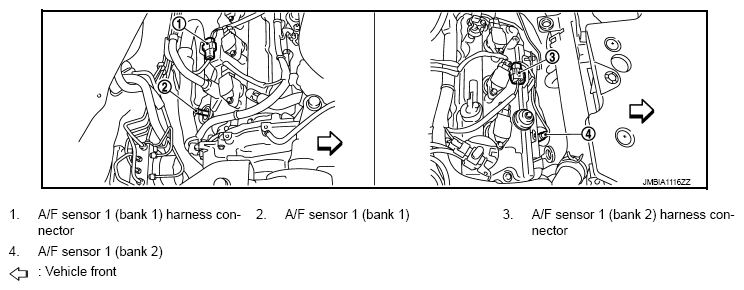

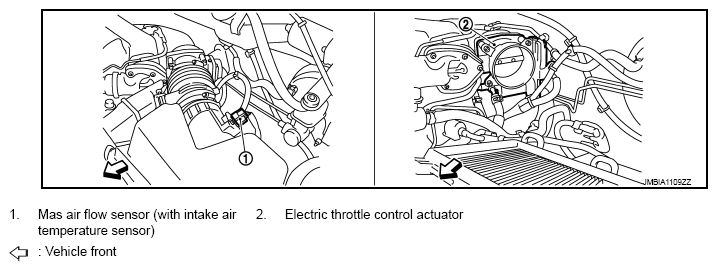

Fig 4: Variable Induction Air System Component Parts Location (4 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

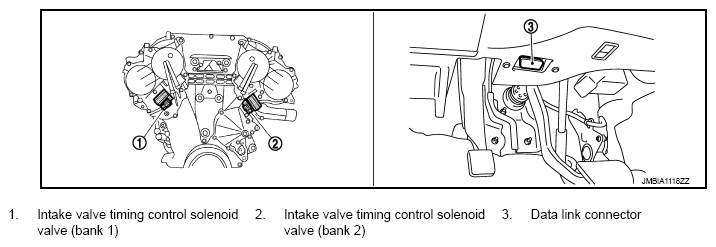

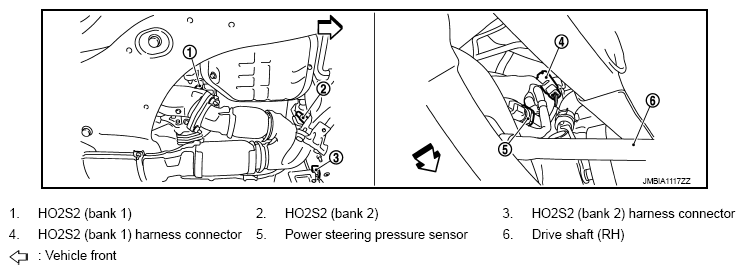

Fig 5: Variable Induction Air System Component Parts Location (5 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

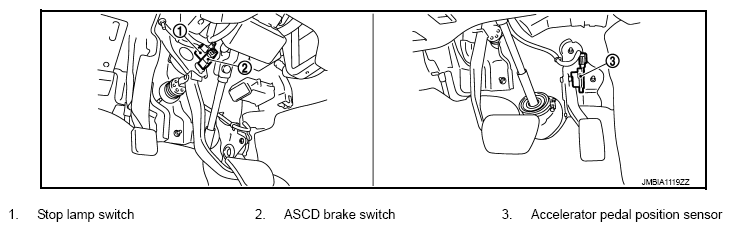

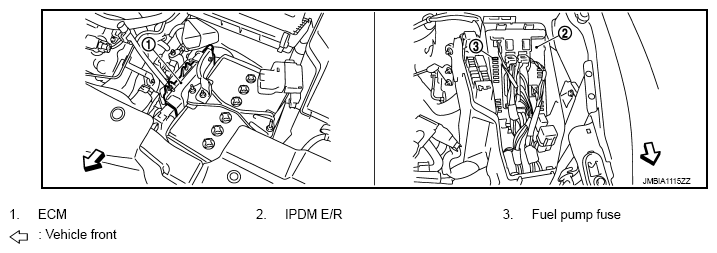

Fig 6: Variable Induction Air System Component Parts Location (6 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

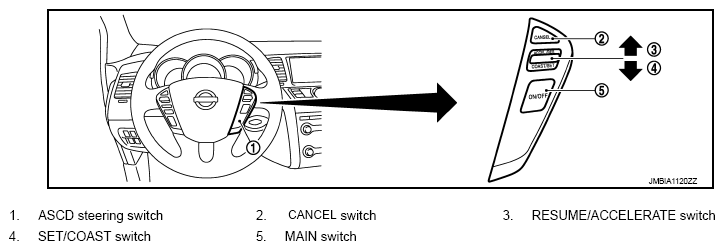

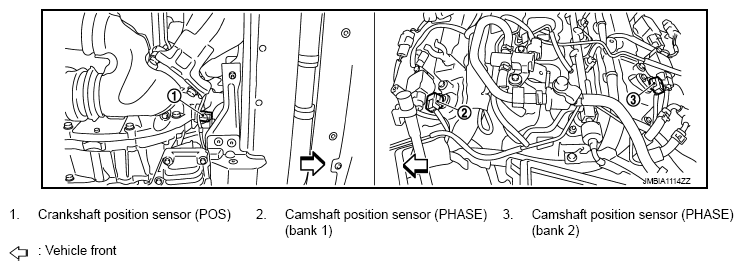

Fig 7: Variable Induction Air System Component Parts Location (7 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

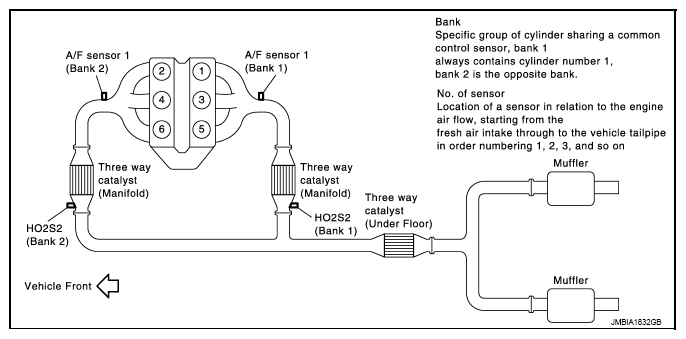

Fig 8: Variable Induction Air System Component Parts Location (8 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Variable Induction Air System Component Parts Location (9 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Variable Induction Air System Component Parts Location (10 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Variable Induction Air System Component Parts Location (11 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Variable Induction Air System Component Parts Location (12 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Variable Induction Air System Component Parts Location (13 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Variable Induction Air System Component Parts Location (14 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Variable Induction Air System Component Parts Location (15 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.
