System - Engine Mechanical&Other

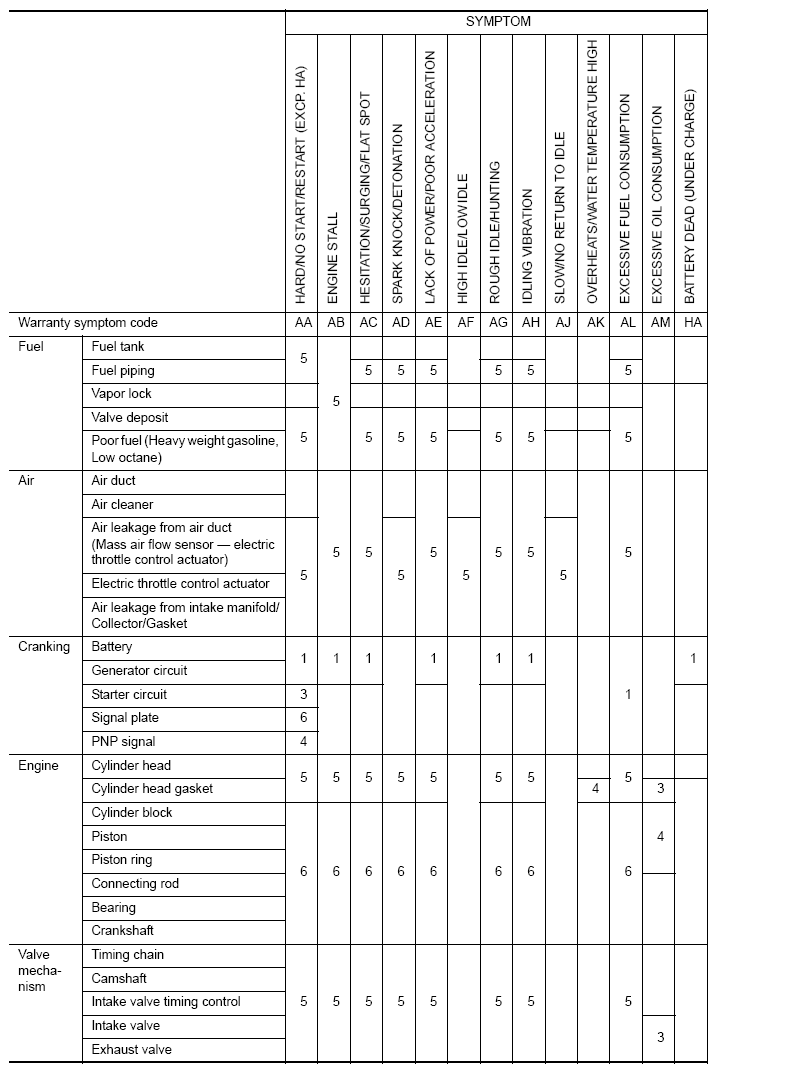

Fig 1: Engine Mechanical And Other Symptoms Chart (1 Of 2)
G08479356Courtesy of NISSAN NORTH AMERICA, INC.

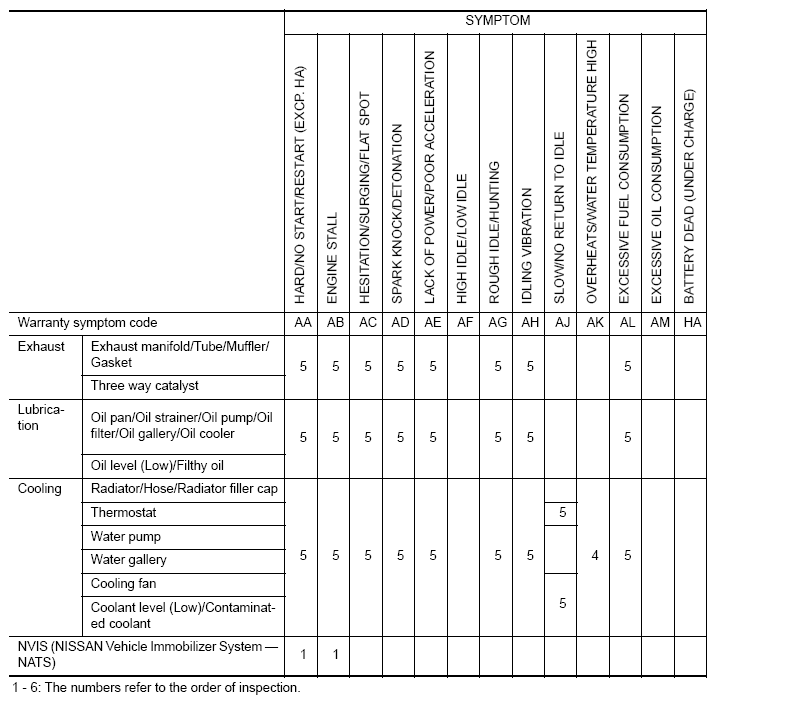

Fig 2: Engine Mechanical And Other Symptoms Chart (2 Of 2)
G08479357Courtesy of NISSAN NORTH AMERICA, INC.
