Diagnosis Procedure

  1. INSPECTION START

    Confirm the malfunctioning system (power valve 1 or power valve 2). Refer to "COMPONENT FUNCTION CHECK ".

    Which system is related to the incident?

    Power valve 1: GO TO 2.

    Power valve 2: GO TO  6.

  2. CHECK VACUUM EXISTENCE-I

    With CONSULT

    1. Stop engine and disconnect vacuum hose connected to power valve actuator 1.
    2. Start engine and let it idle.
    3. Perform "VIAS S/V-1" in "ACTIVE TEST" mode with CONSULT.
    4. Turn VIAS control solenoid valve 1 ON and OFF, and check vacuum existence under the following conditions.
    VIAS S/V-1 Vacuum
    ON Existed
    OFF Not existed

    Without CONSULT

    1. Stop engine and disconnect vacuum hose connected to power valve actuator 1.
    2. Disconnect VIAS control solenoid valve 1 harness connector.
    3. Start engine.
    4. Rev engine quickly up to approximately 5, 000 rpm.
    5. Check vacuum existence under the following conditions.
    Condition Vacuum
    Idle Existed
    Rev engine quickly up to approximately 5, 000 rpm Not existed

    Is the inspection result normal?

    YES: Repair or replace power valve actuator 1. Refer to "COMPONENT PARTS LOCATION ".

    NO: GO TO 3.

  3. CHECK VACUUM TANK
    1. Stop engine and disconnect vacuum hose connected to intake manifold collector.
    2. Start engine and let it idle.
    3. Check vacuum existence from intake manifold collector.

    Does vacuum existence from the intake manifold collector?

    YES: GO TO 4.

    NO: Replace intake manifold collector. Refer to "EXPLODED VIEW ".

  4. CHECK VACUUM HOSE
    1. Stop engine.
    2. Check vacuum hose for crack, clogging, improper connection or disconnection. Refer to "SYSTEM DIAGRAM ".

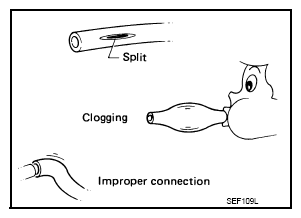

    Fig 1: Checking Vacuum Hose
    G08479323Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES: GO TO 5.

    NO: Repair hoses or tubes.

  5. CHECK VIAS CONTROL SOLENOID VALVE 1

    Refer to "COMPONENT INSPECTION ".

    Is the inspection result normal?

    YES: GO TO  9.

    NO: Replace VIAS control solenoid valve 1. Refer to "EXPLODED VIEW ".

  6. CHECK VACUUM EXISTENCE-II

    With CONSULT

    1. Stop engine and disconnect vacuum hose connected to power valve actuator 2.
    2. Start engine and let it idle.
    3. Perform "VIAS S/V-2" in "ACTIVE TEST" mode with CONSULT.
    4. Turn VIAS control solenoid valve 2 ON and OFF, and check vacuum existence under the following conditions.
    VIAS S/V 2 Vacuum
    ON Existed
    OFF Not existed

    Without CONSULT

    1. Stop engine and disconnect vacuum hose connected to power valve actuator 2.
    2. Disconnect VIAS control solenoid valve 1 harness connector.
    3. Start engine.
    4. Rev engine quickly up to approximately 5, 000 rpm.
    5. Check vacuum existence under the following conditions.
    Condition Operation
    Idle Existed
    Rev engine quickly up to approximately 5, 000 rpm Not existed

    Is the inspection result normal?

    YES: Repair or replace power valve actuator 2. Refer to "COMPONENT PARTS LOCATION ".

    NO: GO TO 7.

  7. CHECK VACUUM HOSE
    1. Stop engine.
    2. Check vacuum hose for crack, clogging, improper connection or disconnection. Refer to "SYSTEM DIAGRAM ".
    Fig 2: Checking Vacuum Hose
    G08479324Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES: GO TO 8.

    NO: Repair hoses or tubes.

  8. CHECK VIAS CONTROL SOLENOID VALVE 2

    Refer to "COMPONENT INSPECTION ".

    Is the inspection result normal?

    YES: GO TO 9.

    NO: Replace VIAS control solenoid valve 2. Refer to "EXPLODED VIEW ".

  9. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    INSPECTION END
