Component Parts Location

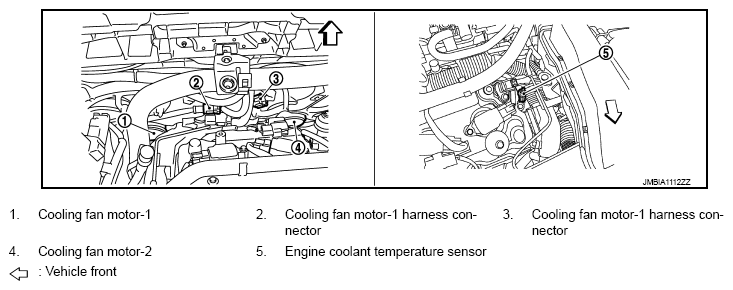

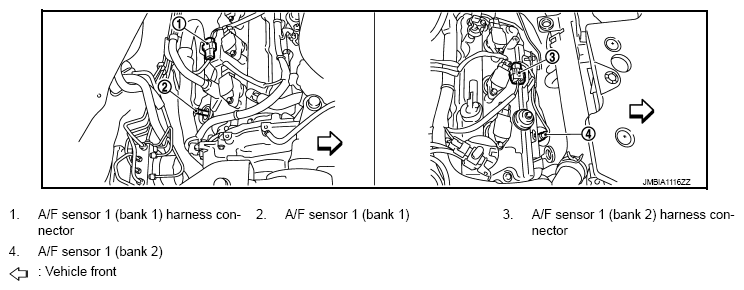

Fig 1: Cooling Fan Control Component Parts Location (1 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

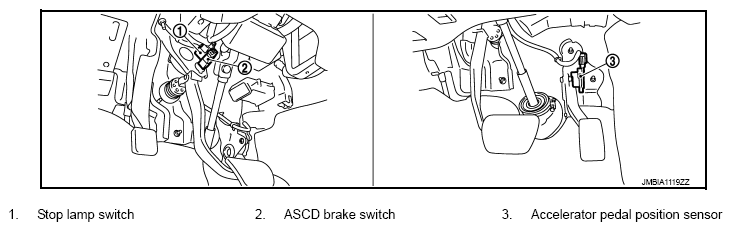

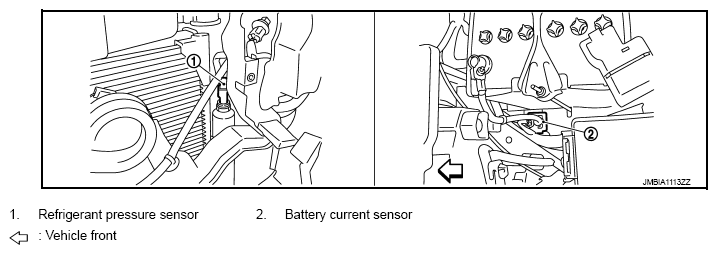

Fig 2: Cooling Fan Control Component Parts Location (2 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

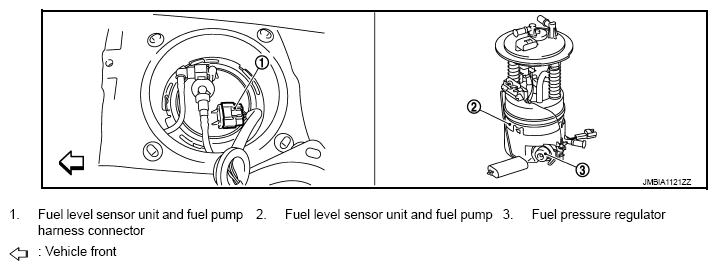

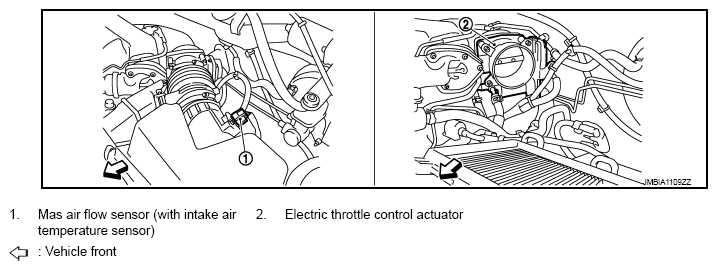

Fig 3: Cooling Fan Control Component Parts Location (3 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

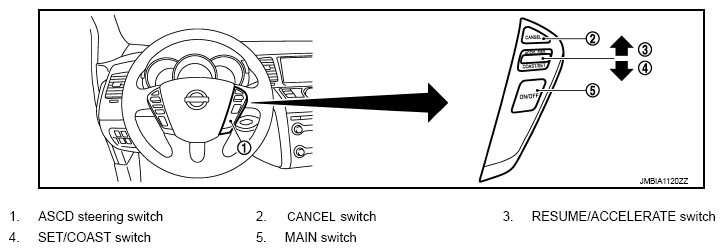

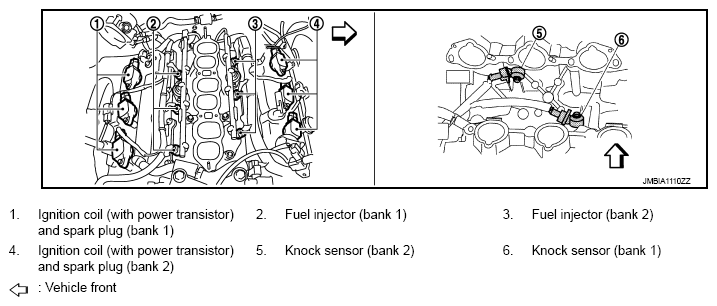

Fig 4: Cooling Fan Control Component Parts Location (4 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

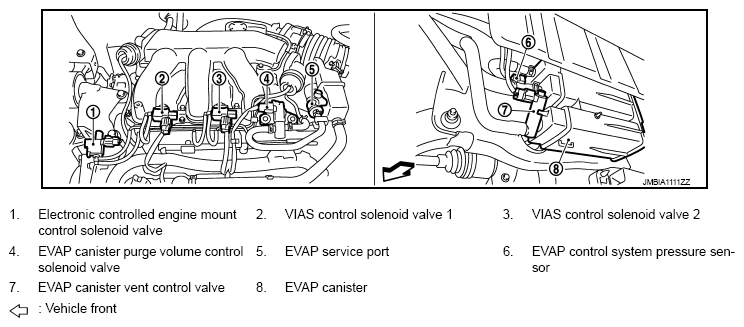

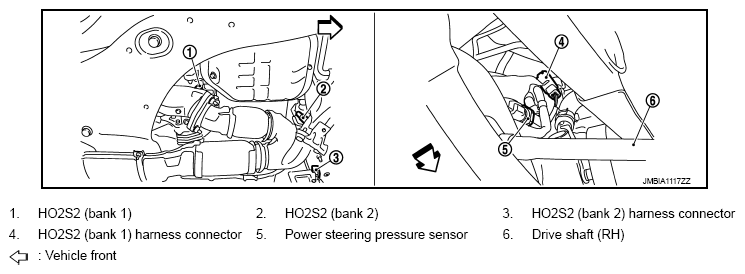

Fig 5: Cooling Fan Control Component Parts Location (5 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

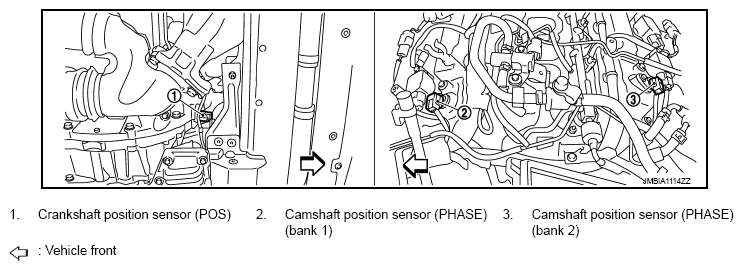

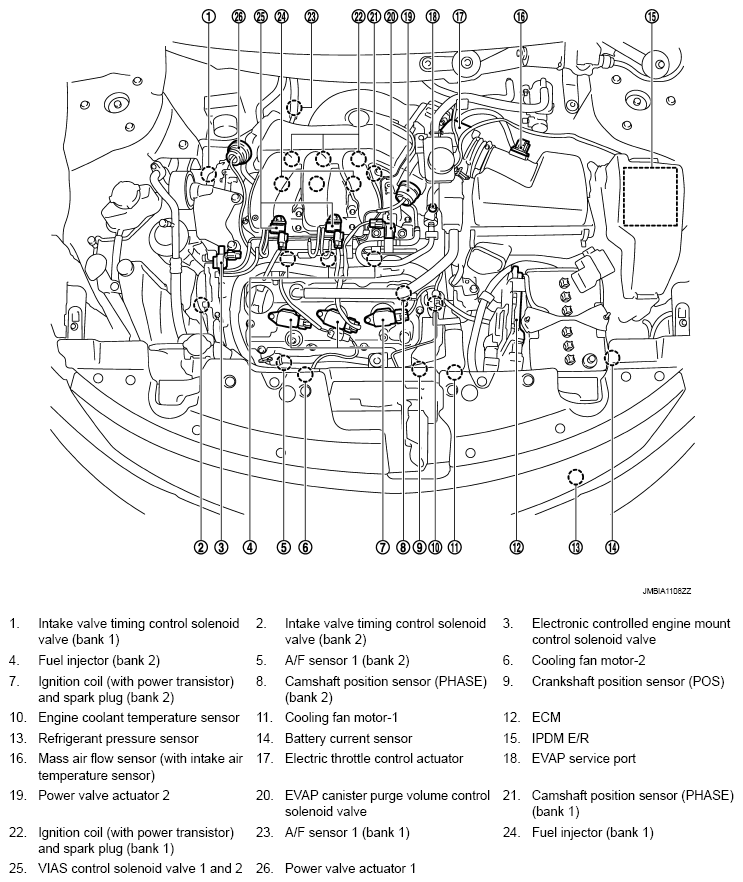

Fig 6: Cooling Fan Control Component Parts Location (6 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

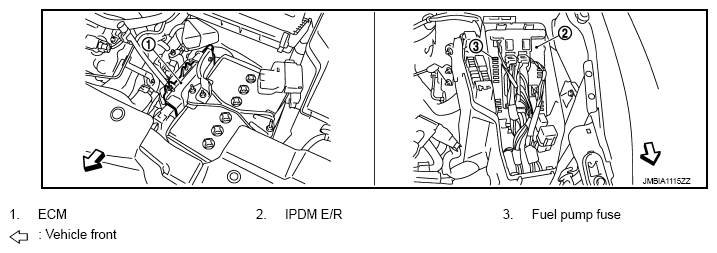

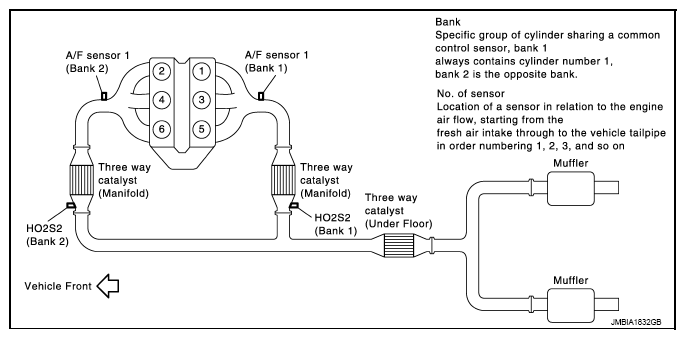

Fig 7: Cooling Fan Control Component Parts Location (7 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

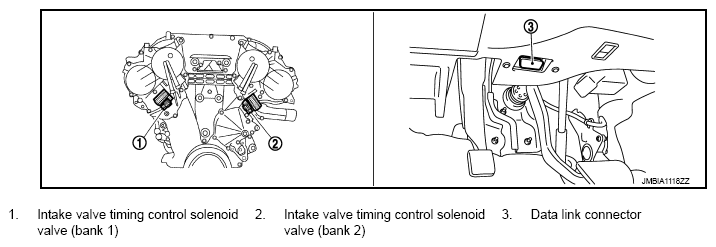

Fig 8: Cooling Fan Control Component Parts Location (8 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Cooling Fan Control Component Parts Location (9 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Cooling Fan Control Component Parts Location (10 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Cooling Fan Control Component Parts Location (11 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Cooling Fan Control Component Parts Location (12 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Cooling Fan Control Component Parts Location (13 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Cooling Fan Control Component Parts Location (14 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Cooling Fan Control Component Parts Location (15 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.
