Component Function Check

WARNING: This page is about a different variant/trim than selected.

CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.

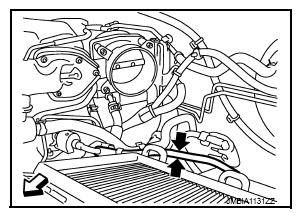

  - <==: Vehicle front (Illustration shows the view with intake air duct removed)
  Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

  Fig 1: Pinching Fuel Feed Hose
  Courtesy of NISSAN NORTH AMERICA, INC.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: "DIAGNOSIS PROCEDURE ".
