CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

WARNING: This page is about a different variant/trim than selected.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

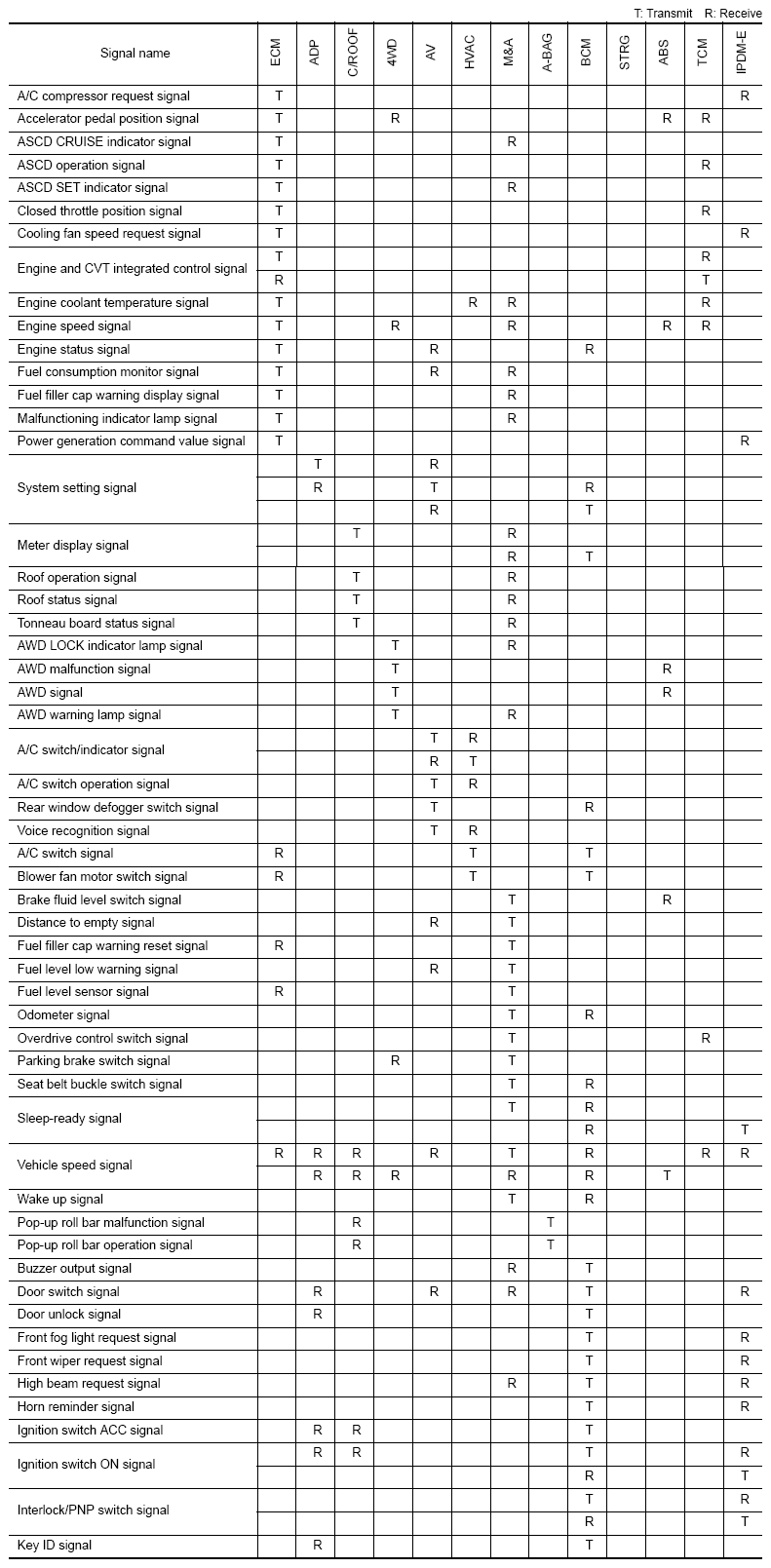

Fig 1: CAN Communication Signal Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

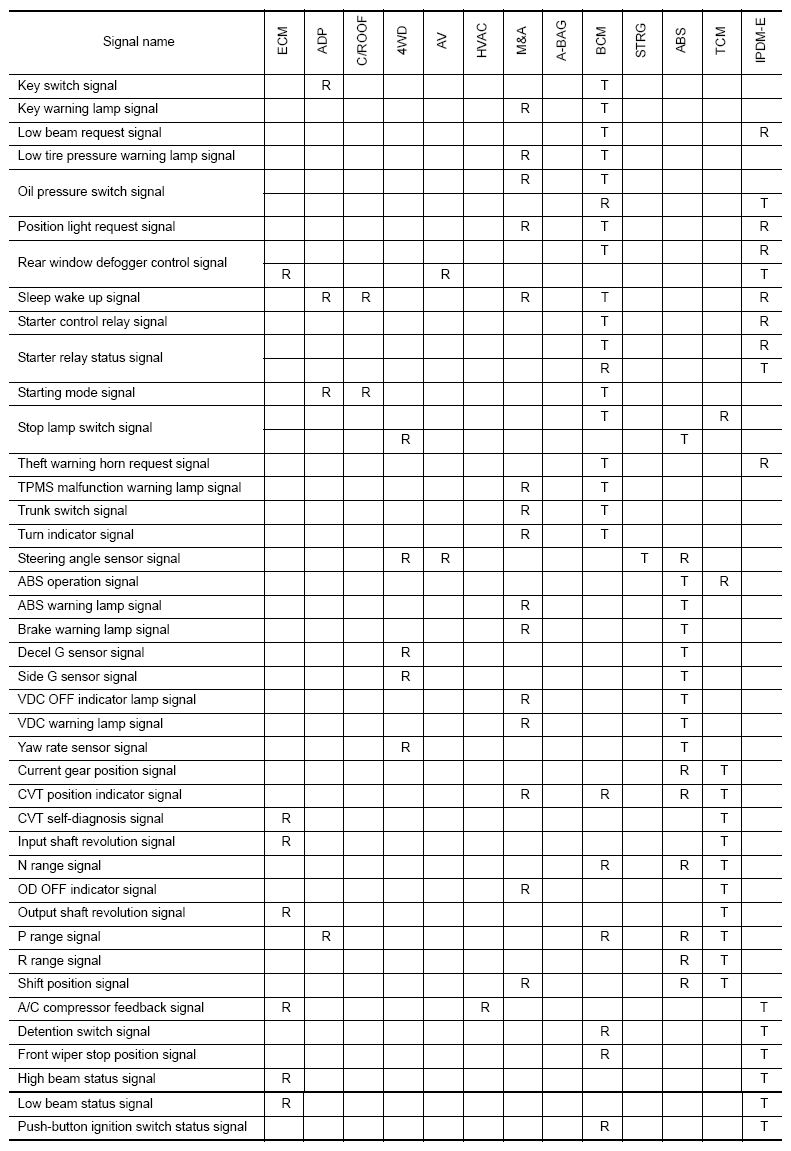

Fig 2: CAN Communication Signal Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
