Disassembly and Assembly: Notes

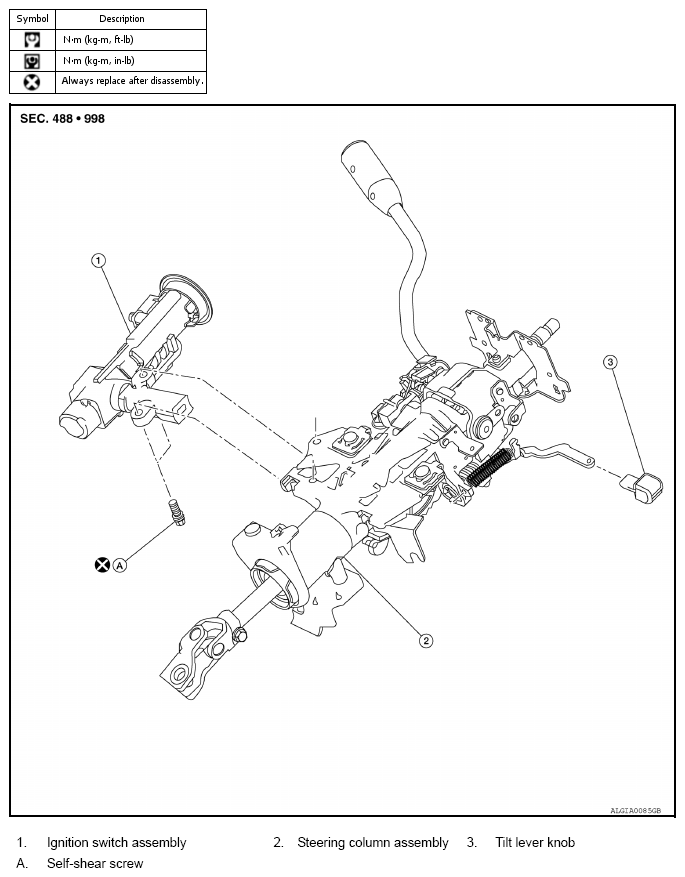

Fig 1: Disassembled View Of Steering Column

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Any time the ignition switch has been disconnected, removed or installed, the keys must be re-registered in the BCM. Refer to CONSULT operations IVIS/NVIS.
Use care when handling steering column assembly during removal and installation.
Care must be taken not to move power steering gear during removal of steering column assembly.
