Overall Sequence

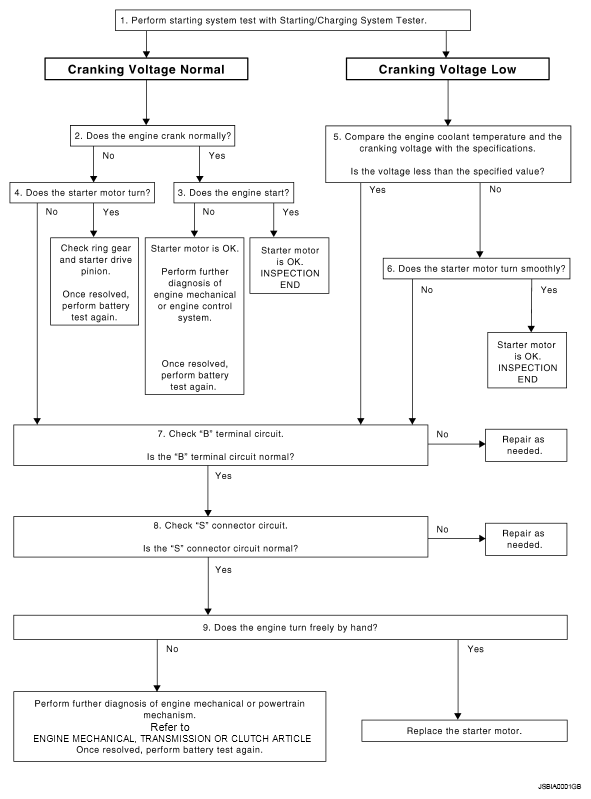

Fig 1: Identifying Diagnosis & Repair Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
