Electronic Controlled Engine Mount Line Drawing

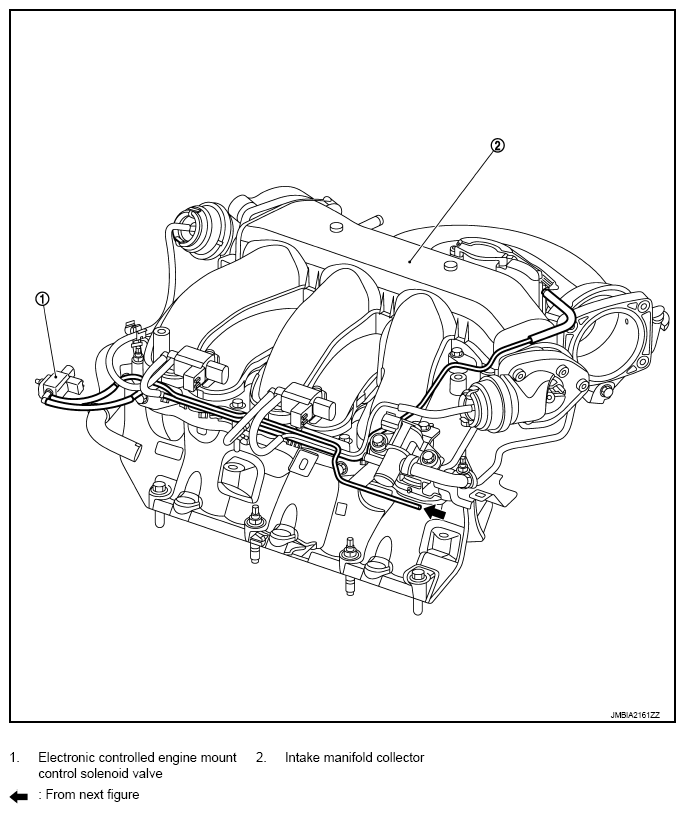

Fig 1: Electronic Controlled Engine Mount Line Drawing (1 Of 2)
G08171433Courtesy of NISSAN NORTH AMERICA, INC.

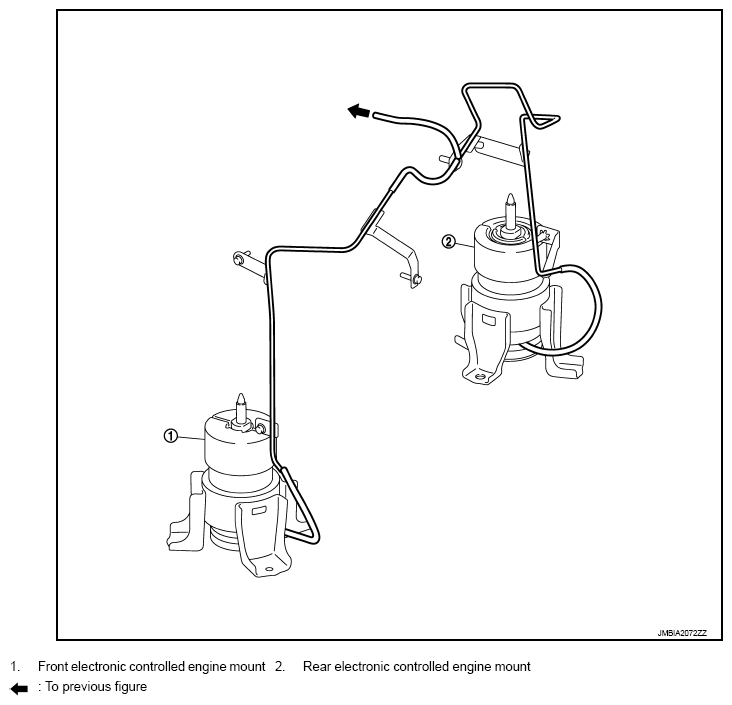

Fig 2: Electronic Controlled Engine Mount Line Drawing (2 Of 2)
G08171434Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.
