Rear View Monitor Function

Operation Description

• When the selector lever is shifted to the reverse position, the rear view monitor image is displayed.
• When the selector lever is shifted to any position other than the reverse position, the original image (the image displayed before the rear view monitor image) is displayed.

Camera Image Operation Principle

• The AV control unit that receives the reverse signal input supplies power to the rear view camera and gives input of image signal.
• The AV control unit outputs the rear view camera image to the front display when the reverse signal is inputted.
• The AV control unit generates the warning message, side distance guiding lines and the predictive course lines on the image from the rear view camera, and transmits the rear view camera image signal to the front display unit.

Side Distance Guide Lines and Predictive Course Lines Display Function at Rear View Monitor Display

• The side distance guide lines and the predictive course line that indicate the vehicle route according to the steering angle are displayed at the rear view monitor display to allow the driver to more easily judge distances between the vehicle and objects and help the driver back into a parking space.
• The AV control unit receives the steering angle signal from the steering angle sensor via CAN communication and draws a predictive course line according to the steering angle signal.
• When the predictive course line are displayed, the side distance guide lines are displayed translucently.
• The predictive course line are not displayed when the steering is in the neutral position.
• The predictive course line can be displayed/not displayed by selecting "Settings" - "Others" - "Camera" - "Predictive Course Lines"

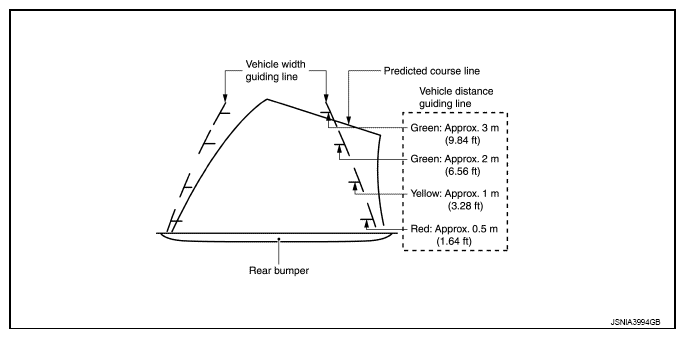

  Fig 1: Identifying Side Distance Guide Lines & Predictive Course Lines Display

  Courtesy of NISSAN NORTH AMERICA, INC.

Precautions for Side Distance Guide Lines and predictive course line Display on the Rear View Monitor Display Side distance guide lines and predictive course line on the display may be different from actual lines depending on vehicle conditions and road conditions.

Precautions for road conditions

• Since guide lines and predictive course line are drawn based on the road, a different distance may be displayed if a protruding block is present nearby.

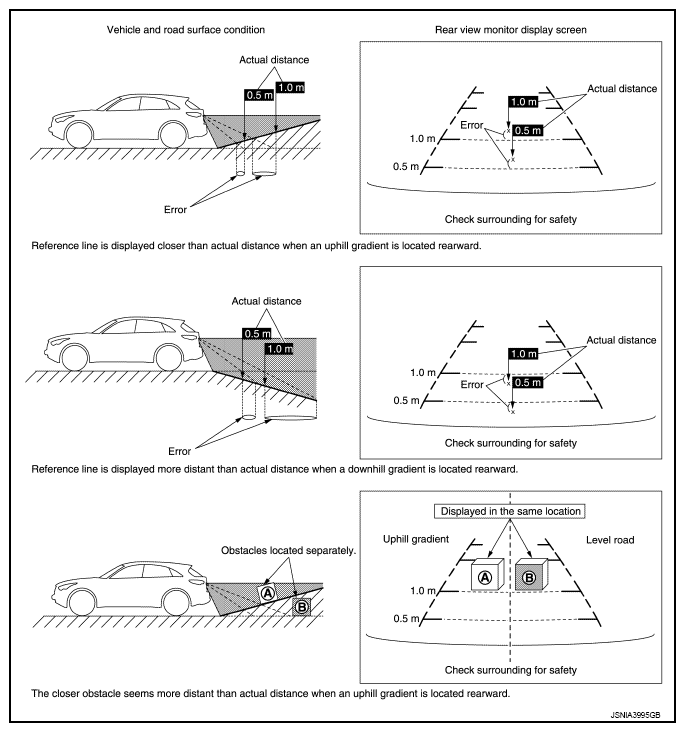

  Fig 2: Identifying Vehicle & Road Surface Conditions Display

  Courtesy of NISSAN NORTH AMERICA, INC.

Precautions for block

• Since guide lines and predictive course line are drawn based on the road, a different distance may be displayed if a protruding block is present nearby.

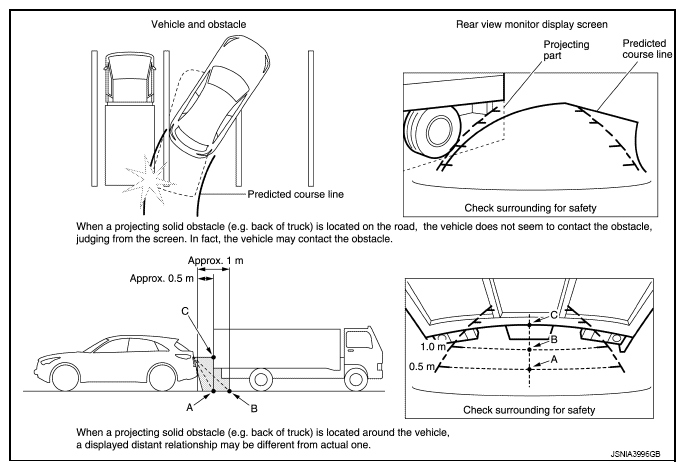

  Fig 3: Identifying Distance Between Vehicle And Obstacle Display

  Courtesy of NISSAN NORTH AMERICA, INC.
