Operation And Display Of Front Automatic Air Conditioning System [Without ACCS (Advanced Climate Control System)]

Display: Display in front A/C control

Front air conditioning operation status is indicated on display in front A/C control.
Front air conditioning status display screen is indicated when MODE switch is pressed while front air conditioning is OFF.

NOTE: "REAR" is indicated on display while rear air conditioning operation screen is indicated.

Operation: Front A/C control

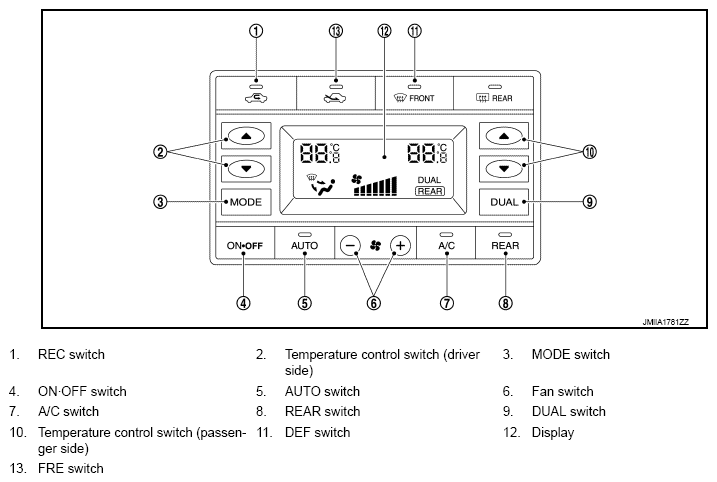

Fig 1: Identifying Front Automatic Air Conditioning System Switch (Without ACCS)

Courtesy of NISSAN NORTH AMERICA, INC.

Switch name	Function
REC switch	Switch indicator turns ON and air inlet is set to recirculation (REC), when this switch is pressed. NOTE: Air inlet can be changed when front air conditioning is in OFF status. REC switch operation is not accepted when air outlet is D/F or DEF. A/C switch turns ON when REC switch is turned ON while A/C switch is OFF.
Temperature control switch (driver side)	Setting temperature can be set according to switch operation within a range between 18°C (60°F) - 32°C (90°F) at a rate of 0.5°C (1°F) per adjustment. Press "UP TRIANGLE" : Setting temperature increases Press "DOWN TRIANGLE" : Setting temperature decreases NOTE: When front air conditioning is OFF, setting temperature can be set only while front air conditioning status screen (only when MODE switch is pressed) is indicated.
MODE switch	Air outlet changes from VENT ==> B/L ==> FOOT ==> D/F ==> VENT each time this switch is pressed. NOTE: Air outlet can be changed when front air conditioning is in OFF status. Automatic air outlet control is cancelled (AUTO switch indicator turns OFF), when MODE switch is pressed while AUTO switch indicator is ON.
ON-OFF switch	Front air conditioning turns ON <==> OFF each time this switch is pressed. When this switch is pressed while front air conditioning is ON Front air conditioning turns OFF and becomes the following status, when this switch is pressed. Air outlet: FOOT Air flow: OFF Air inlet: Fresh air intake A/C switch: OFF When this switch is pressed while front air conditioning is OFF Front air conditioning turns ON and operates according to the settings set before front air conditioning is turned OFF, when this switch is pressed.
AUTO switch	AUTO switch indicator turns ON and front air conditioning becomes the following status, when this switch is pressed while front air conditioning is ON. Air outlet: Automatic control Air flow: Automatic control Air inlet: Automatic control A/C switch: ON Front air conditioning turns ON and operates according to the following status, when this switch is pressed while front air conditioning is OFF. (AUTO switch indicator turns ON) Air outlet: Automatic control Air flow: Automatic control Air inlet: Automatic control A/C switch: ON NOTE: When air outlet or air flow is manually operated while AUTO switch indicator is ON, AUTO switch indicator turns OFF. However, automatic control continues for other functions than air outlet or air flow.
Fan switch	Air flow can be set within a range between 1st - 7th speed according to switch operation. Press "FAN" +: Air flow increases Press "FAN" -: Air flow decreases Front air conditioning turns ON and operates according to the following status, when this switch is pressed while front air conditioning is OFF. Air outlet: Automatic control Air flow: Automatic control Air inlet: Settings set before fan switch is pressed A/C switch: Settings set before front air conditioning is turned OFF NOTE: Automatic air flow control is cancelled (AUTO switch indicator turns OFF), when fan switch is pressed while AUTO switch indicator is ON.
A/C switch	Compressor control (switch indicator) changes between ON <==> OFF each time this switch is pressed while front blower motor is operated. NOTE: A/C switch cannot be turned ON when front blower motor is OFF. A/C switch cannot be turned OFF when air outlet is D/F or DEF. Air inlet changes to fresh air intake when A/C switch is turned OFF while air inlet is set to recirculation.
DUAL switch	Left and right ventilation temperature separately control ("DUAL" on front A/C control display) changes between ON <==> OFF each time this switch is pressed while front blower motor is operated. NOTE: Setting temperature for passenger side is the same as that for driver side when left and right ventilation temperature separately control is OFF. DUAL switch operation is not accepted when DEF mode is ON.
Temperature control switch (passenger side)	Left and right ventilation temperature separately control ("DUAL" on front A/C control display) turns ON according to switch operation. Air flow temperature of passenger side can be changed without changing air flow temperature of driver side. Setting temperature can be set according to switch operation within a range between 18°C (60°F) - 32°C (90°F) at a rate of 0.5°C (1°F) per adjustment. Press "UP TRIANGLE" : Setting temperature increases Press "DOWN TRIANGLE" : Setting temperature decreases NOTE: When front air conditioning is OFF, setting temperature can be set only while front air conditioning status screen (only when MODE switch is pressed) is indicated. Temperature control switch (passenger side) operation is not accepted when DEF mode is ON.
DEF switch	DEF mode (switch indicator) changes between ON <==> OFF each time switch is pressed. When this switch is pressed while front air conditioning is ON Front air conditioning becomes the following status when DEF mode is turned ON. Air outlet: DEF Air flow: Settings set before DEF mode is turned ON Air inlet: Fresh air intake A/C switch: ON Front air conditioning becomes the following status when DEF mode is turned OFF. Air outlet: Settings set before DEF mode is turned ON Air flow: Settings set before DEF mode is turned OFF Air inlet: Settings set before DEF mode is turned OFF A/C switch: Settings set before DEF mode is turned OFF When this switch is pressed while front air conditioning is OFF Front air conditioning turns ON and operates in the following status, when DEF mode is turned ON. Air outlet: DEF Air flow: Automatic control Air inlet: Fresh air intake A/C switch: ON Front air conditioning becomes the following status when DEF mode is turned OFF. Air outlet: Automatic control Air flow: Settings set before DEF mode is turned OFF Air inlet: Settings set before DEF mode is turned OFF A/C switch: Settings set before DEF mode is turned OFF NOTE: When DEF mode is turned ON while AUTO switch indicator is turned ON, AUTO switch indicator turns OFF. However, automatic air flow control continues.
FRE switch	Switch indicator turns ON and air inlet is set to fresh air intake (FRE), when this switch is pressed. NOTE: Air inlet can be changed when front air conditioning is in OFF status.

NOTE: The following switches are not necessary for front air conditioning system operation.

REAR switch

Refer to "REAR AUTOMATIC AIR CONDITIONING SYSTEM: SWITCH NAME AND FUNCTION ".
