Heater & Air Conditioning Control System (Automatic Air Conditioning)
>>
System Description
>>
System
>>
Front Automatic Air Conditioning System
>>
FRONT AUTOMATIC AIR CONDITIONING SYSTEM: Door Control
>>
Switch And Their Control Function
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Switch And Their Control Function
With ACCS (Advanced Climate Control System)

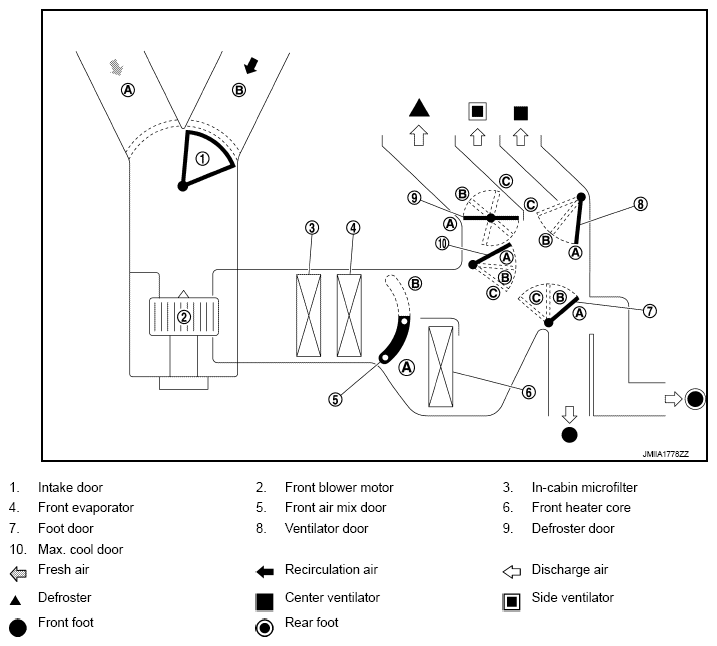

Fig 1: Identifying Advanced Climate Control System Function Diagram
Courtesy of NISSAN NORTH AMERICA, INC.

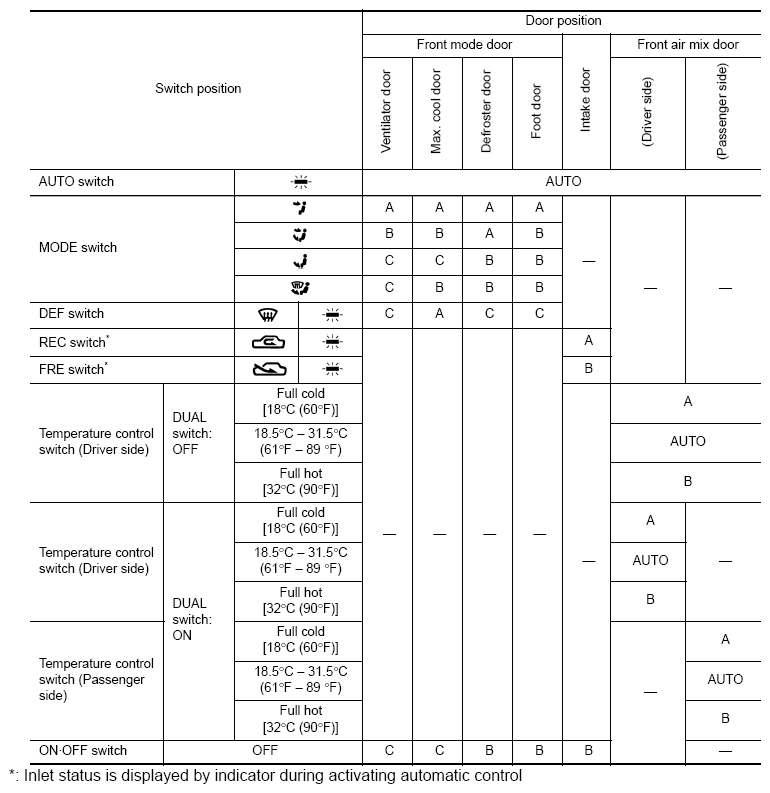

Fig 2: Identifying Advanced Climate Control System Chart
Courtesy of NISSAN NORTH AMERICA, INC.

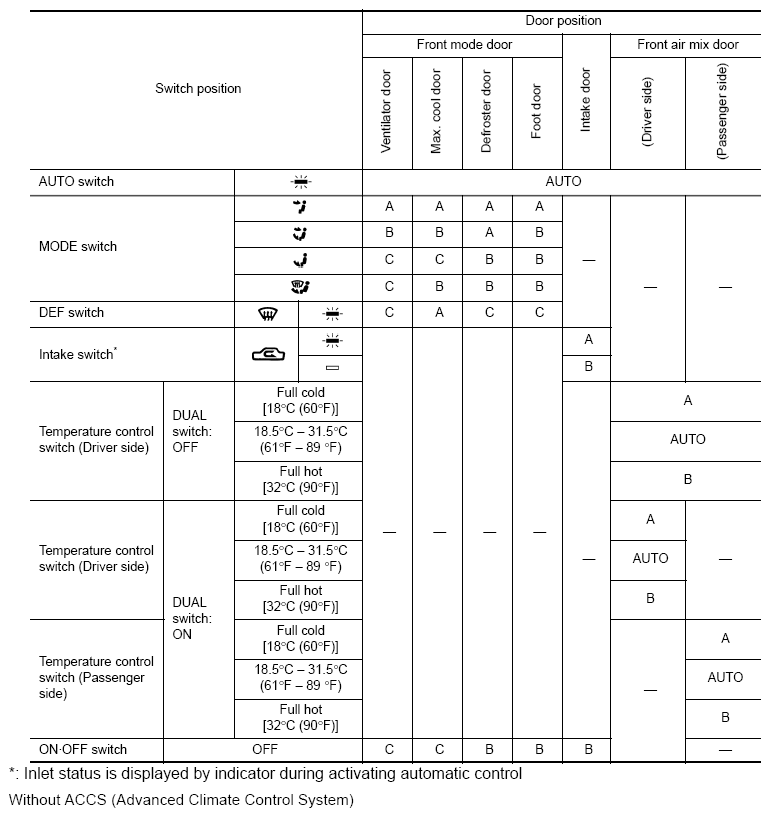

Fig 3: Identifying Advanced Climate Control System Function Diagram Function
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Identifying Advanced Climate Control System Chart
Courtesy of NISSAN NORTH AMERICA, INC.
