INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: Circuit Diagram

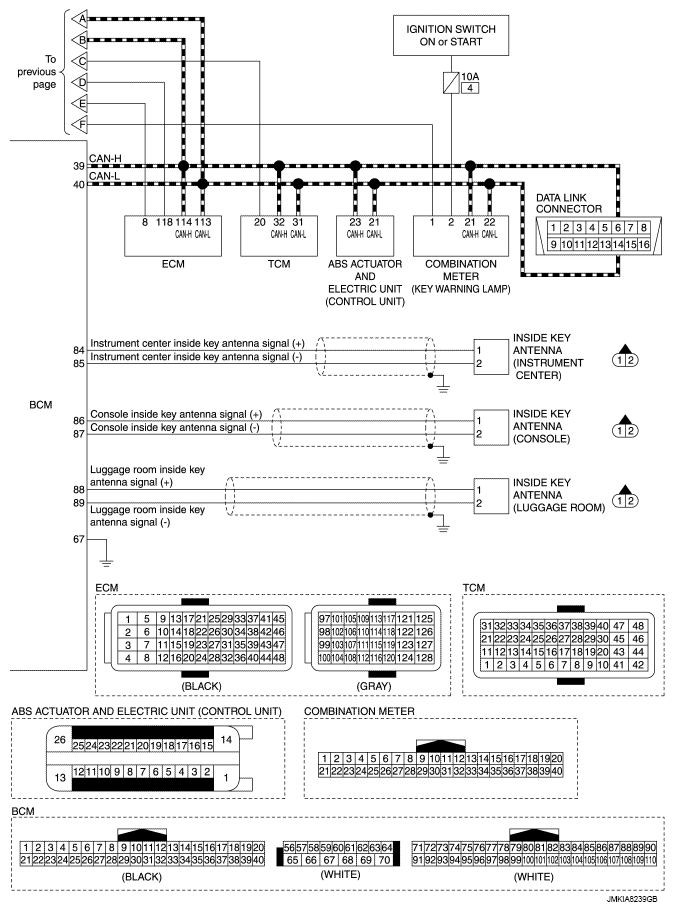

Fig 1: Intelligent Key System/Engine Start Function Circuit Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

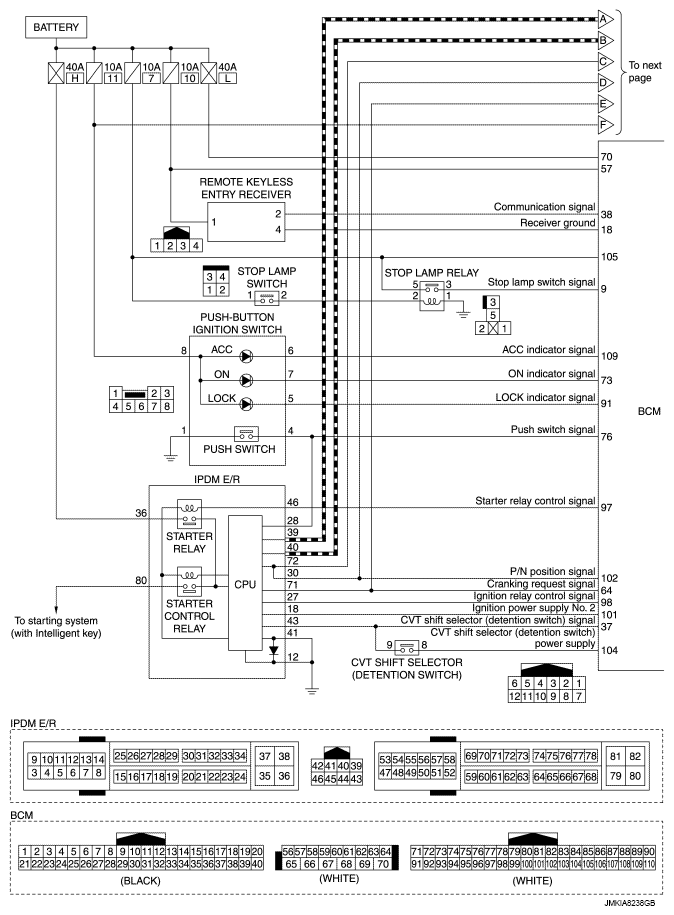

Fig 2: Intelligent Key System/Engine Start Function Circuit Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
