CVT CONTROL SYSTEM: System Diagram

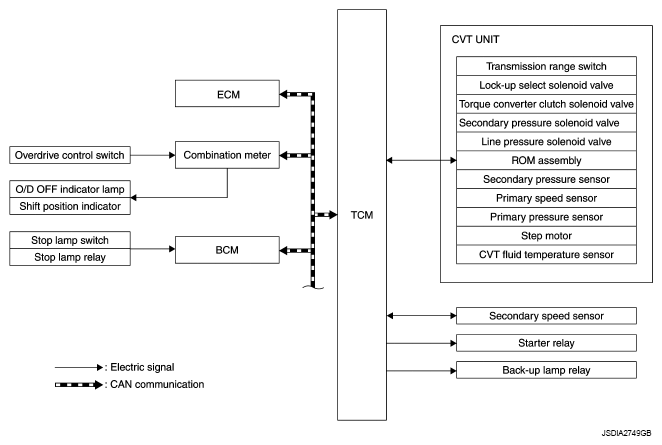

Fig 1: Identifying CVT Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
