Models Without Automatic Slide Door

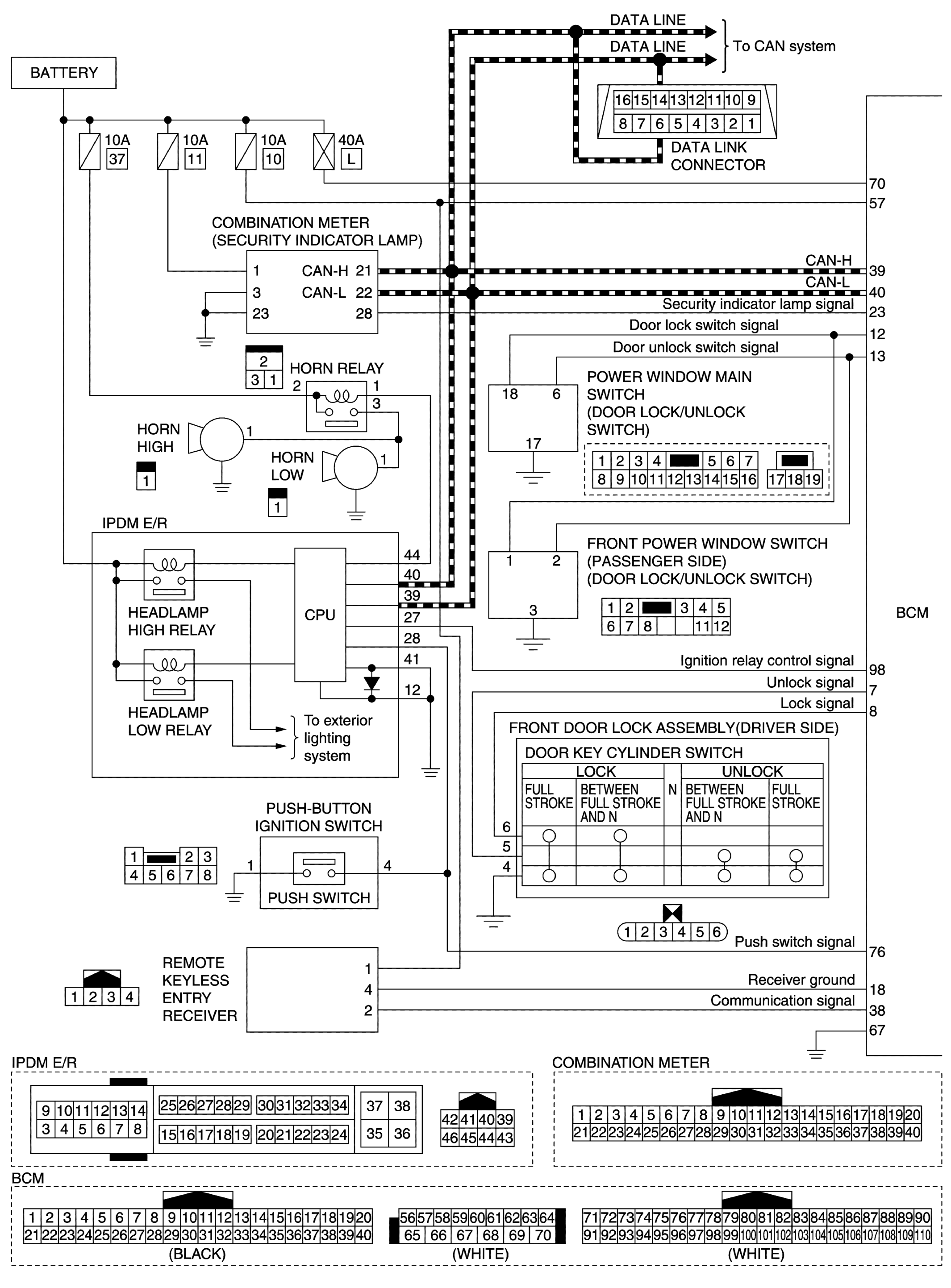

Fig 1: Vehicle Security System (Models Without Automatic Slide Door) Circuit Wiring Diagram (1 Of 2)
G07052405Courtesy of NISSAN NORTH AMERICA, INC.

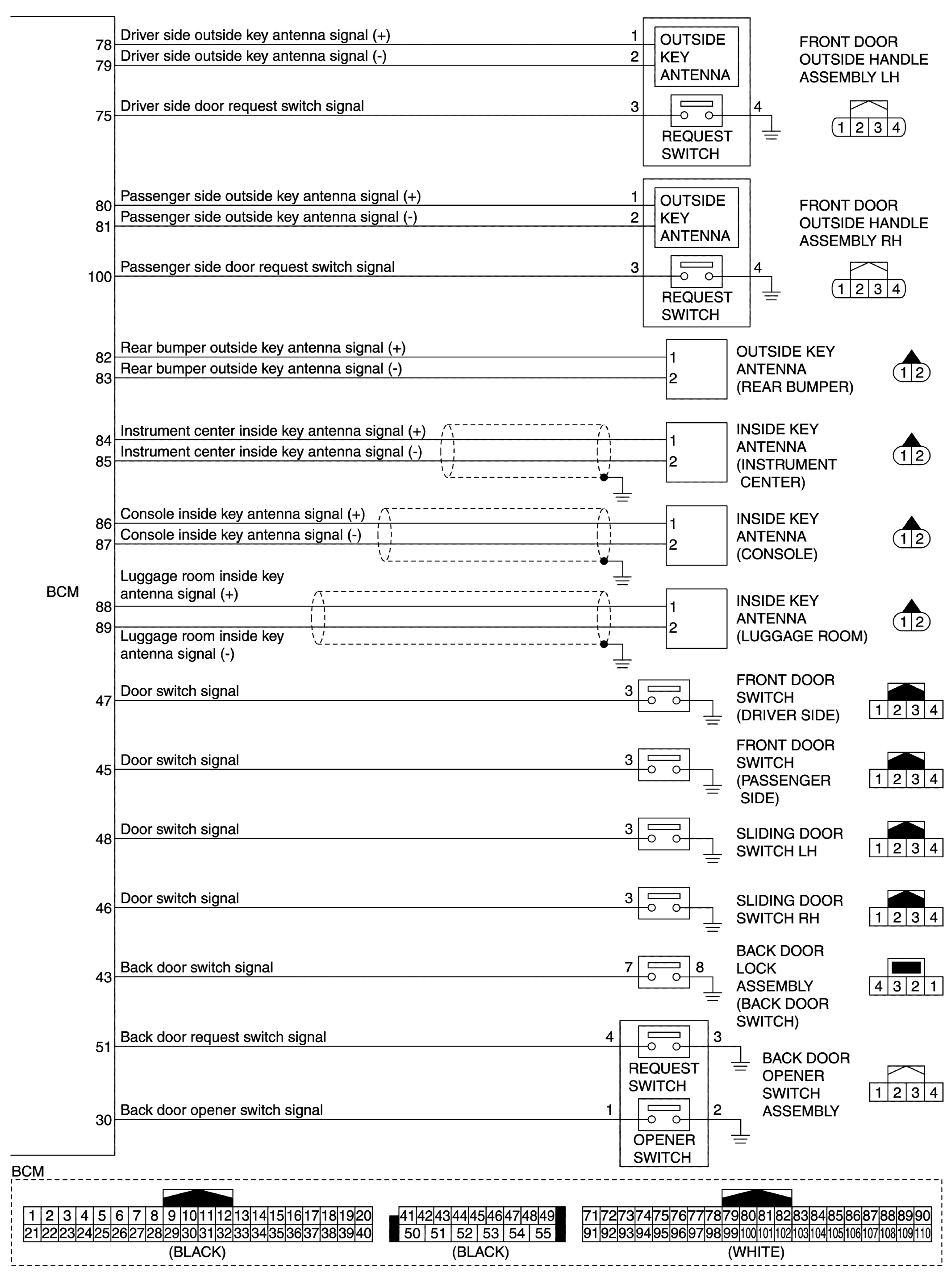

Fig 2: Vehicle Security System (Models Without Automatic Slide Door) Circuit Wiring Diagram (2 Of 2)
G07052406Courtesy of NISSAN NORTH AMERICA, INC.
