System - Basic Engine Control System

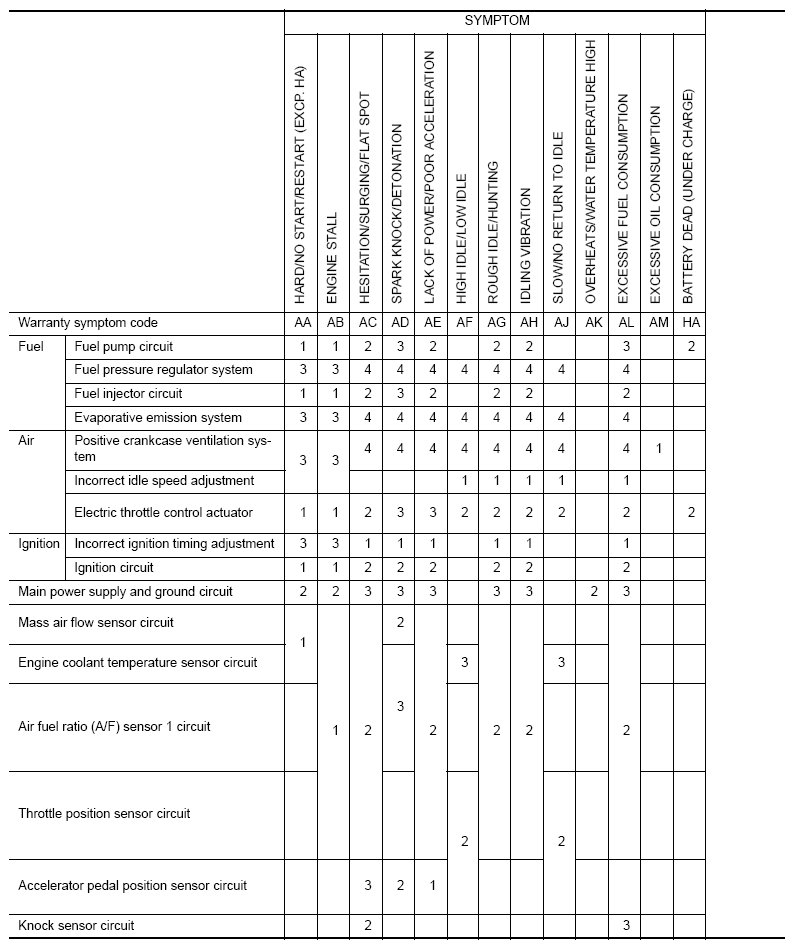

Fig 1: Engine Control System Symptoms Table (1 Of 4)
G08176440Courtesy of NISSAN NORTH AMERICA, INC.

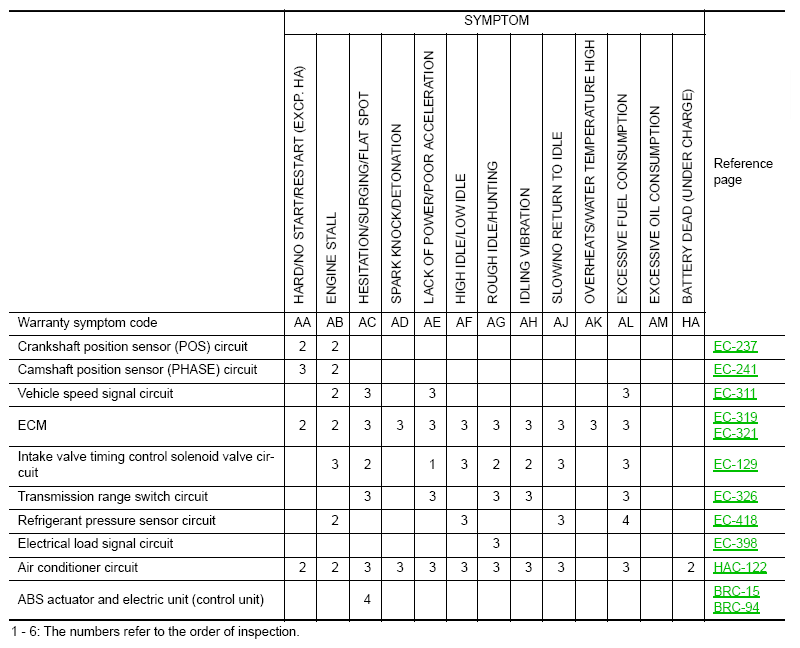

Fig 2: Engine Control System Symptoms Table (2 Of 4)
G08176441Courtesy of NISSAN NORTH AMERICA, INC.
