Component Parts Location

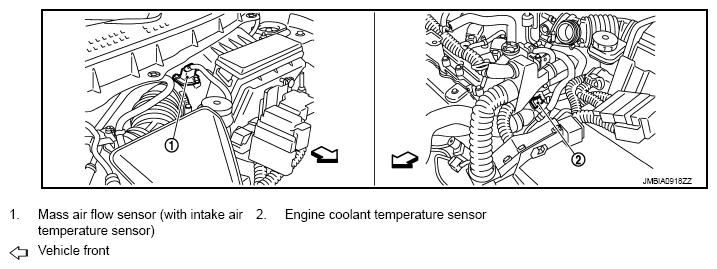

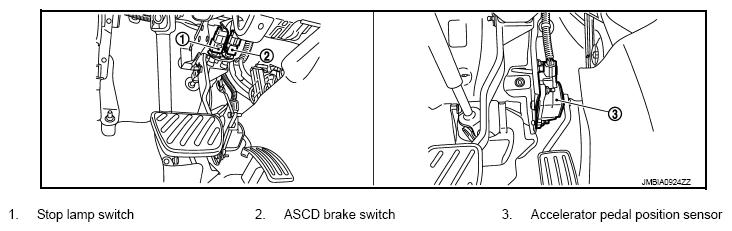

Fig 1: Automatic Speed Control Device (Ascd) Components Location (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

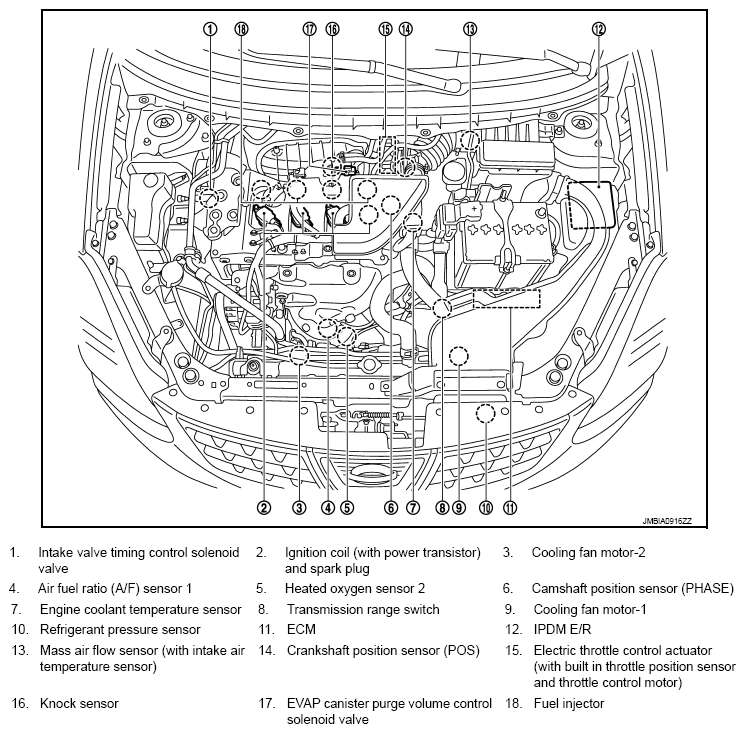

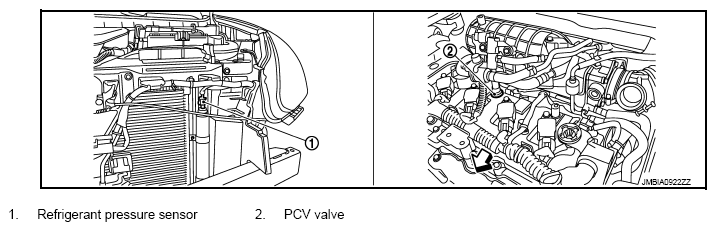

Fig 2: Automatic Speed Control Device (Ascd) Components Location (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

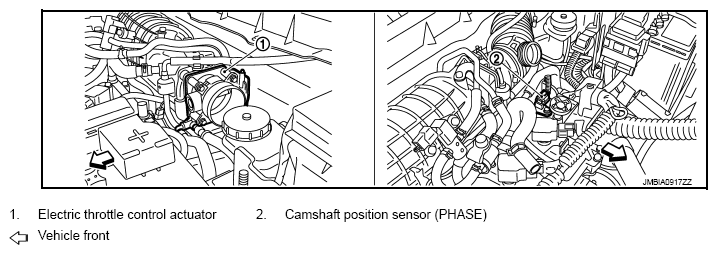

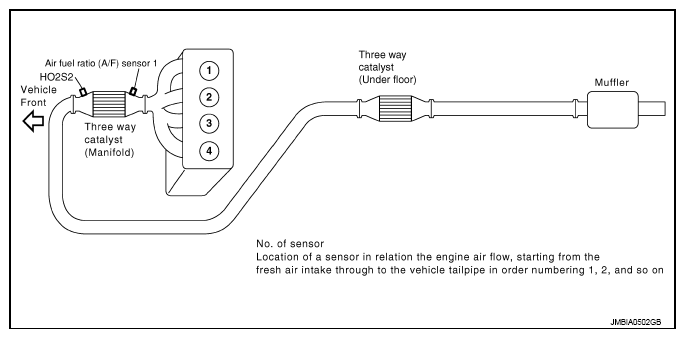

Fig 3: Automatic Speed Control Device (Ascd) Components Location (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

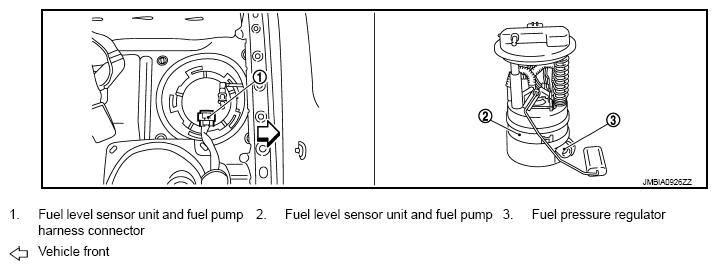

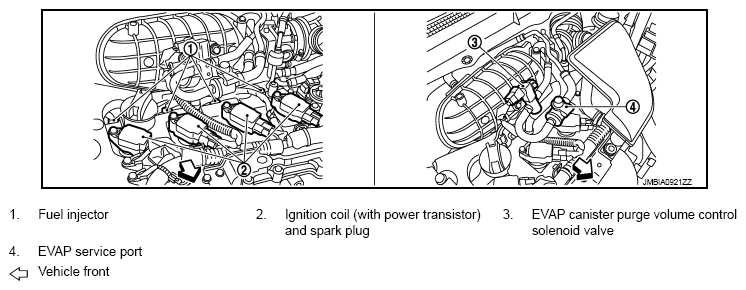

Fig 4: Automatic Speed Control Device (Ascd) Components Location (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

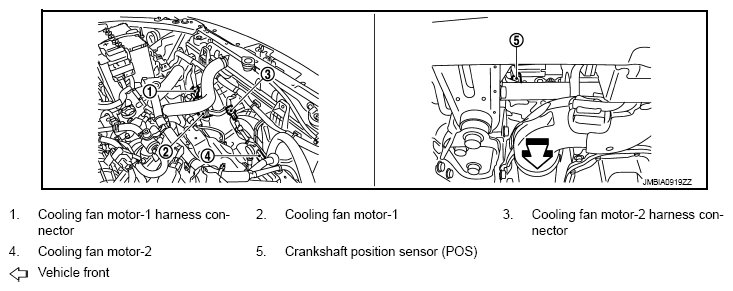

Fig 5: Automatic Speed Control Device (Ascd) Components Location (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

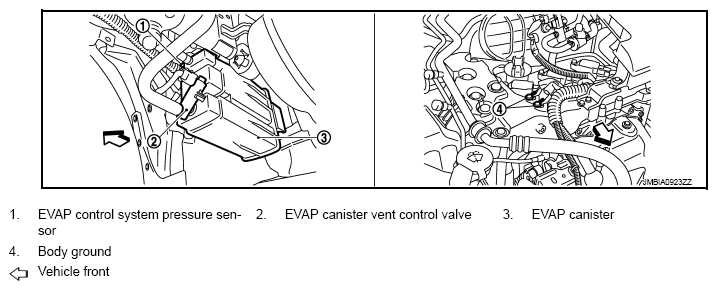

Fig 6: Automatic Speed Control Device (Ascd) Components Location (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

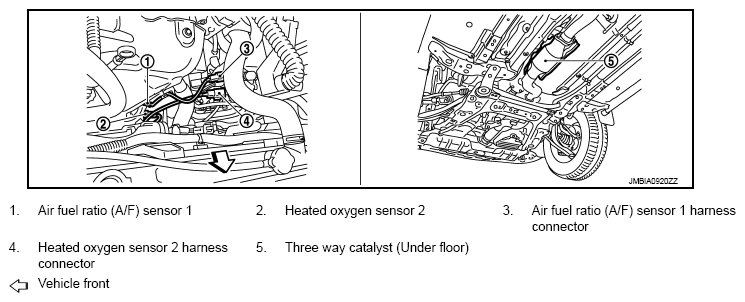

Fig 7: Automatic Speed Control Device (Ascd) Components Location (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

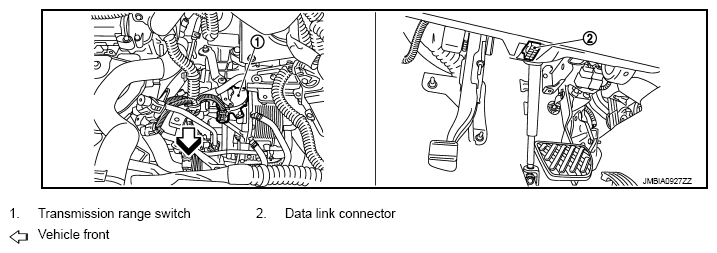

Fig 8: Automatic Speed Control Device (Ascd) Components Location (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Automatic Speed Control Device (Ascd) Components Location (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Automatic Speed Control Device (Ascd) Components Location (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Automatic Speed Control Device (Ascd) Components Location (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Automatic Speed Control Device (Ascd) Components Location (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Automatic Speed Control Device (Ascd) Components Location (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
