Component Parts Location

Fig 1: Intake Valve Timing Control Components Location (1 Of 13)
G08176251Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intake Valve Timing Control Components Location (2 Of 13)
G08176252Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intake Valve Timing Control Components Location (3 Of 13)
G08176253Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Intake Valve Timing Control Components Location (4 Of 13)
G08176254Courtesy of NISSAN NORTH AMERICA, INC.

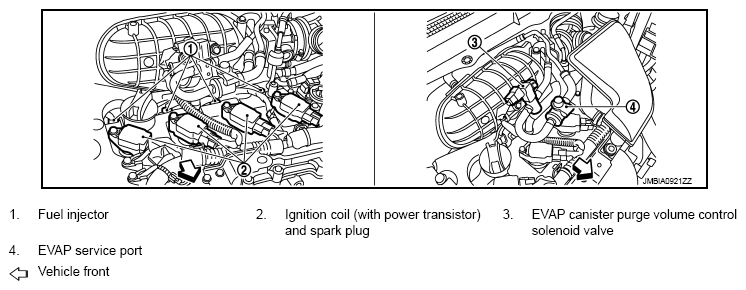

Fig 5: Intake Valve Timing Control Components Location (5 Of 13)
G08176255Courtesy of NISSAN NORTH AMERICA, INC.

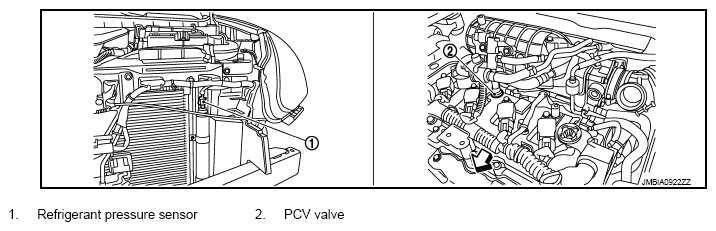

Fig 6: Intake Valve Timing Control Components Location (6 Of 13)
G08176256Courtesy of NISSAN NORTH AMERICA, INC.

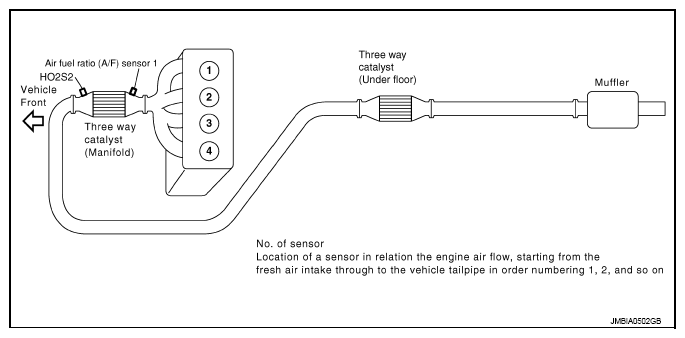

Fig 7: Intake Valve Timing Control Components Location (7 Of 13)
G08176257Courtesy of NISSAN NORTH AMERICA, INC.

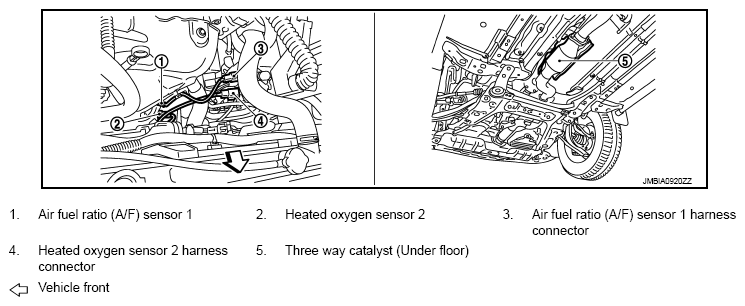

Fig 8: Intake Valve Timing Control Components Location (8 Of 13)
G08176258Courtesy of NISSAN NORTH AMERICA, INC.

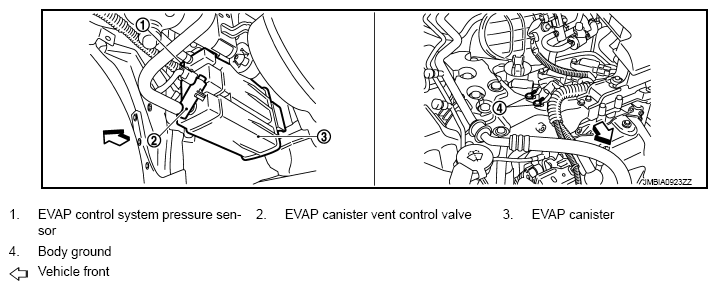

Fig 9: Intake Valve Timing Control Components Location (9 Of 13)
G08176259Courtesy of NISSAN NORTH AMERICA, INC.

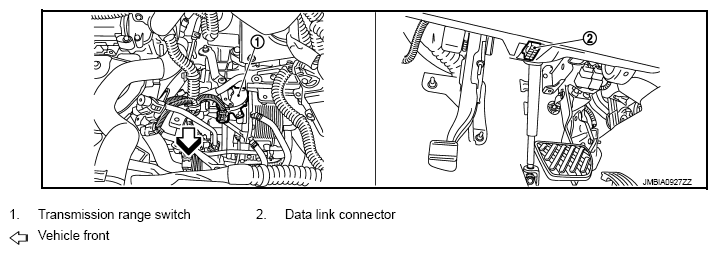

Fig 10: Intake Valve Timing Control Components Location (10 Of 13)
G08176260Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Intake Valve Timing Control Components Location (11 Of 13)
G08176261Courtesy of NISSAN NORTH AMERICA, INC.

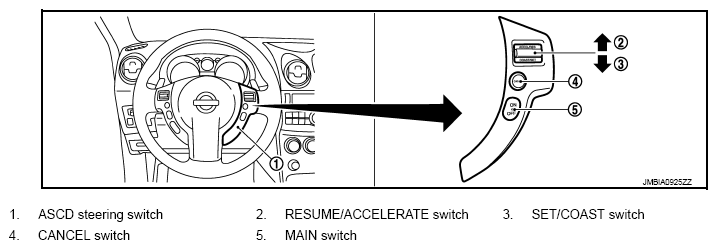

Fig 12: Intake Valve Timing Control Components Location (12 Of 13)
G08176262Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: Intake Valve Timing Control Components Location (13 Of 13)
G08176263Courtesy of NISSAN NORTH AMERICA, INC.
