Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

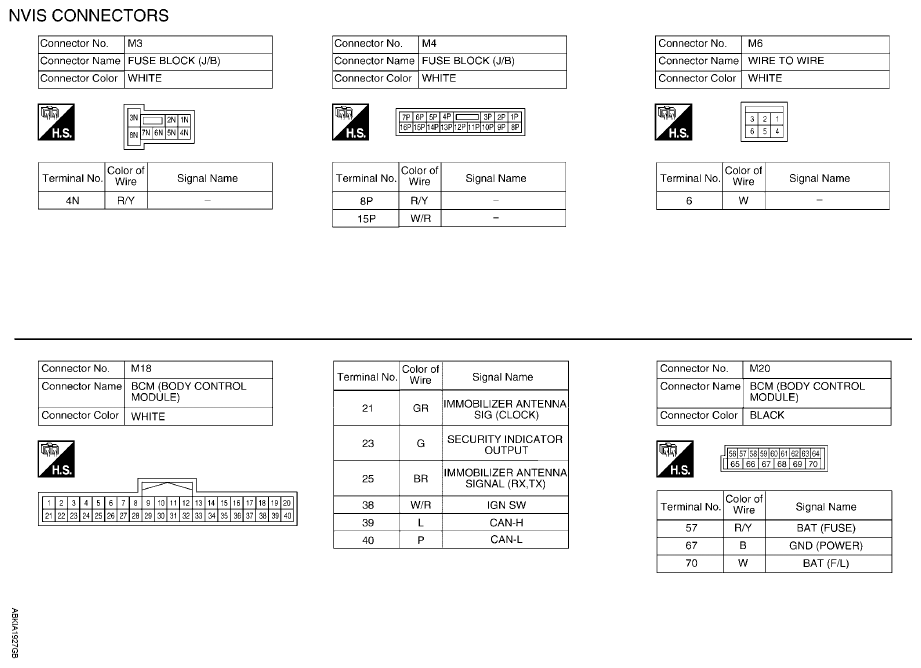

Fig 1: Identifying NVIS Connectors (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

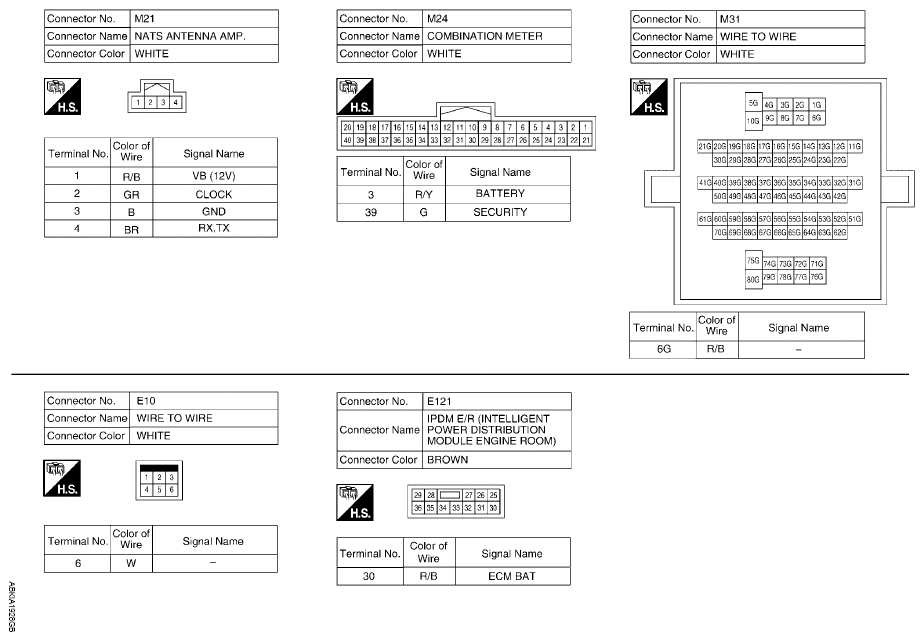

Fig 2: Identifying NVIS Connectors (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying NVIS Connectors (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
