Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

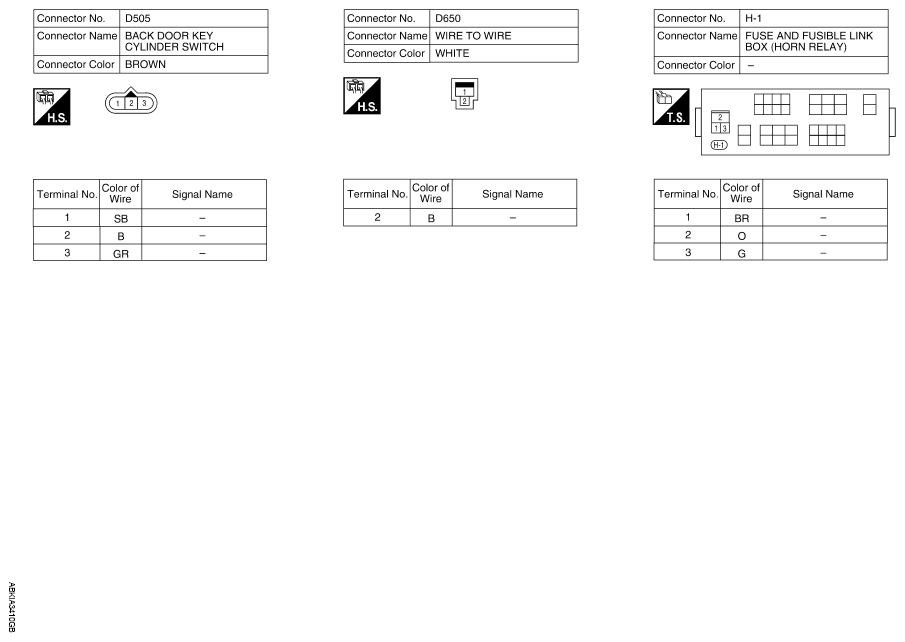

Fig 1: Identifying Vehicle Security System Connectors (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

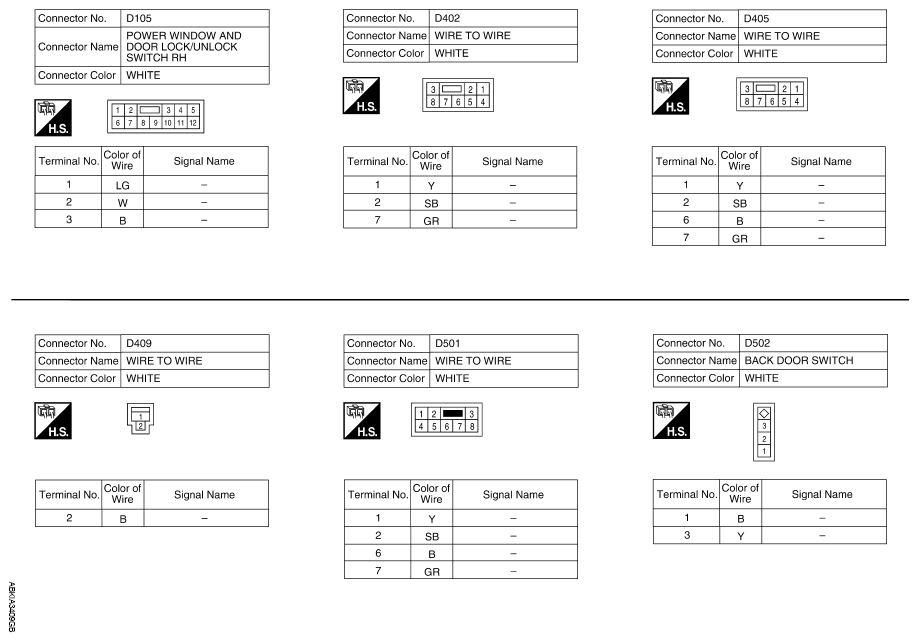

Fig 2: Identifying Vehicle Security System Connectors (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

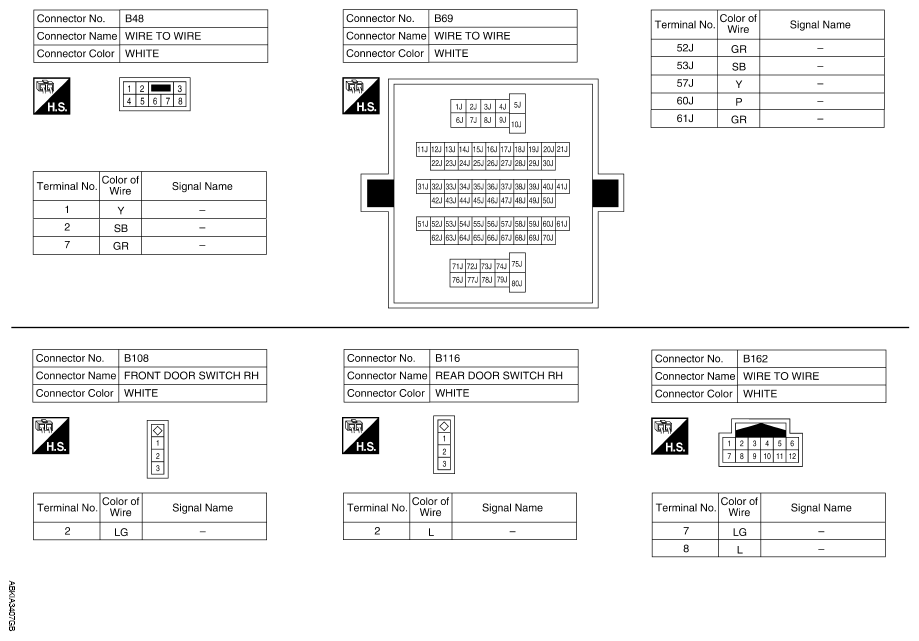

Fig 3: Identifying Vehicle Security System Connectors (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Vehicle Security System Connectors (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Vehicle Security System Connectors (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Vehicle Security System Connectors (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Vehicle Security System Connectors (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Vehicle Security System Connectors (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
