Exploded View

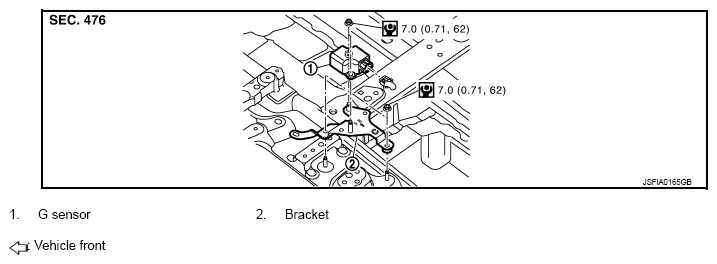

Fig 1: Exploded View Of G Sensor With Torque Specifications
G08175709Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol in the figure.
