Component Parts Location

Fig 1: Intake Valve Timing Control Components Location (1 Of 12)
G08174751Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intake Valve Timing Control Components Location (2 Of 12)
G08174752Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intake Valve Timing Control Components Location (3 Of 12)
G08174753Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Intake Valve Timing Control Components Location (4 Of 12)
G08174754Courtesy of NISSAN NORTH AMERICA, INC.

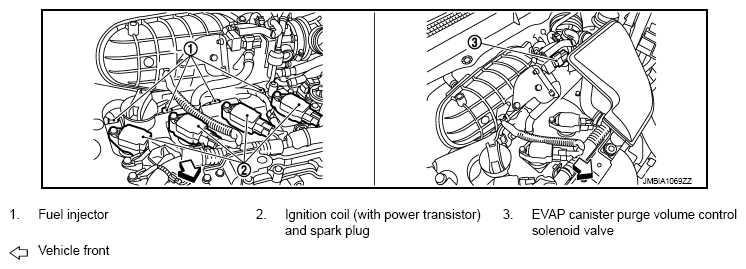

Fig 5: Intake Valve Timing Control Components Location (5 Of 12)
G08174755Courtesy of NISSAN NORTH AMERICA, INC.

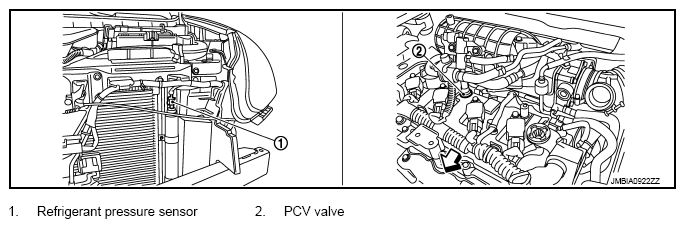

Fig 6: Intake Valve Timing Control Components Location (6 Of 12)
G08174756Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Intake Valve Timing Control Components Location (7 Of 12)
G06056066Courtesy of NISSAN NORTH AMERICA, INC.

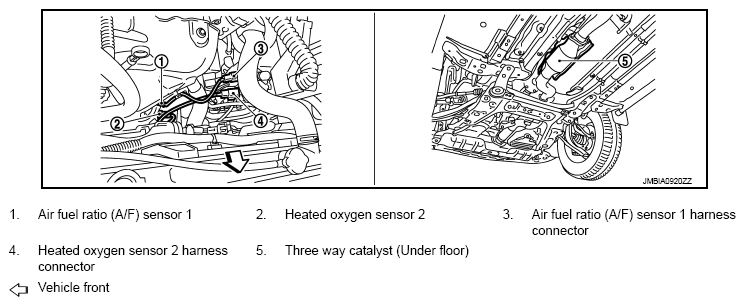

Fig 8: Intake Valve Timing Control Components Location (8 Of 12)
G08174758Courtesy of NISSAN NORTH AMERICA, INC.

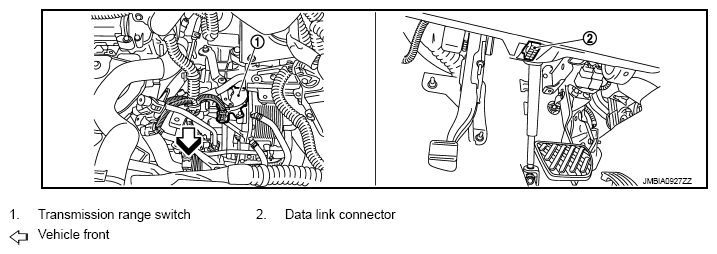

Fig 9: Intake Valve Timing Control Components Location (9 Of 12)
G08174759Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Intake Valve Timing Control Components Location (10 Of 12)
G08174760Courtesy of NISSAN NORTH AMERICA, INC.

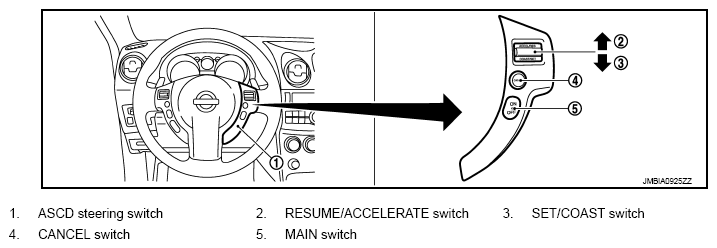

Fig 11: Intake Valve Timing Control Components Location (11 Of 12)
G08174761Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Intake Valve Timing Control Components Location (12 Of 12)
G08174762Courtesy of NISSAN NORTH AMERICA, INC.
