System Description

The TCM receives CVT indicator signals from the transmission range switch. The TCM then sends CVT position indicator signals to the combination meter via CAN communication lines. The combination meter indicates the received shift position.

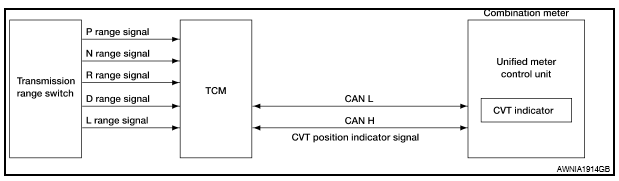

Fig 1: Identifying Shift Position Indicator System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
