Combination Meters: Schematic

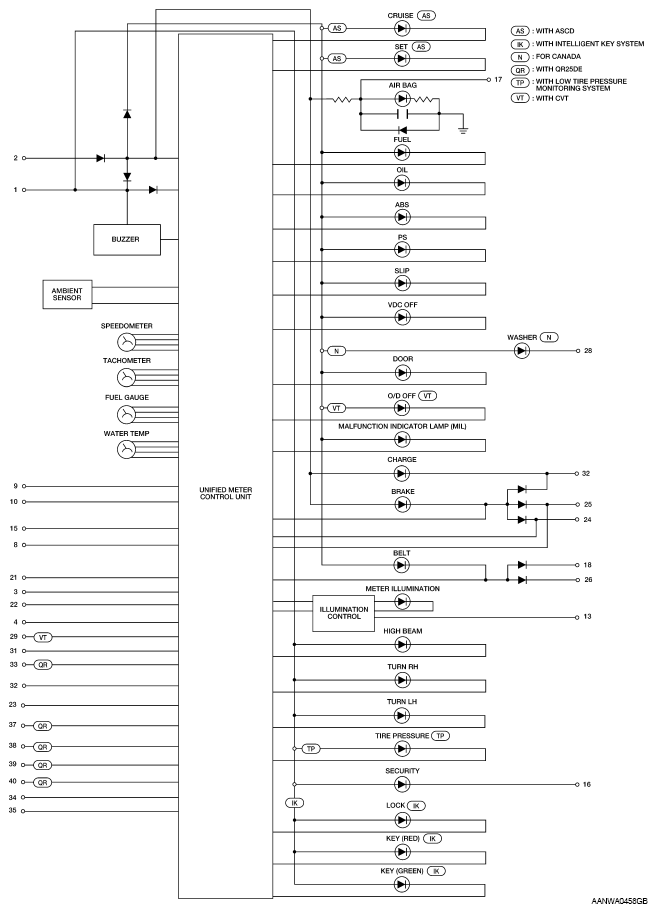

Fig 1: Identifying Combination Meter Schematics
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
