Driver Seat

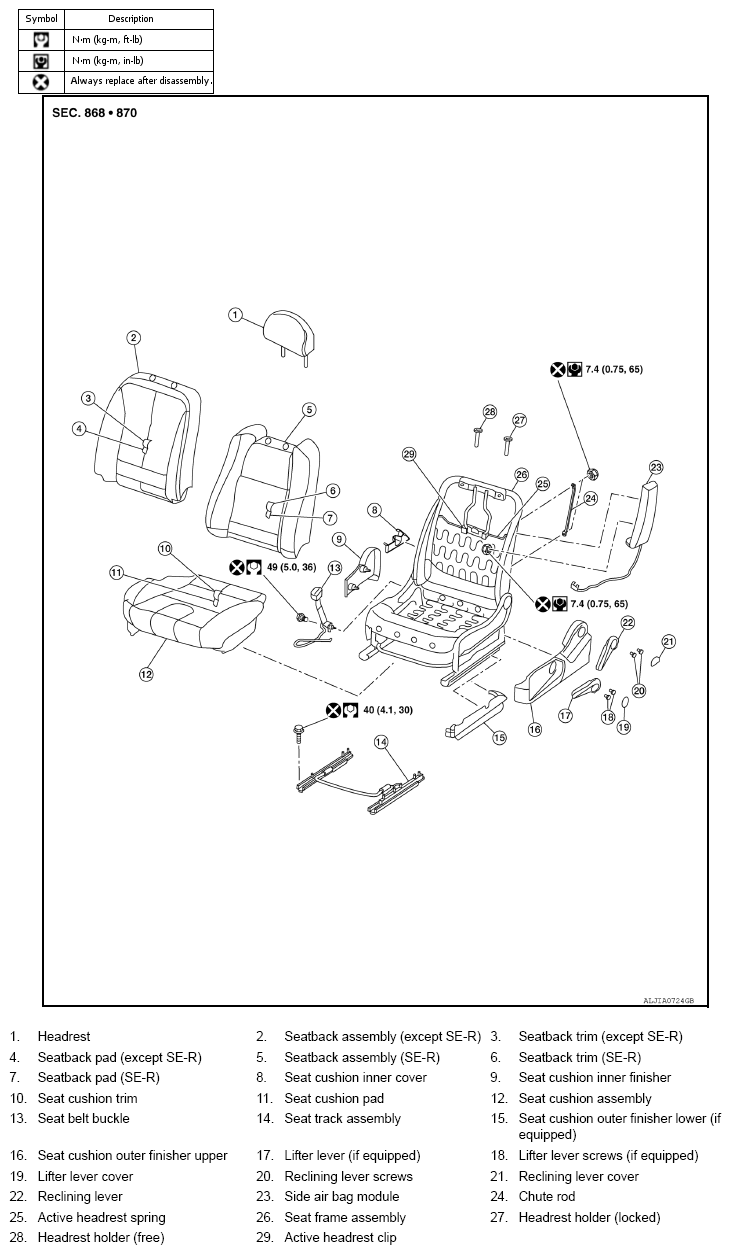

Fig 1: Exploded View Of Front Seat With Torque Specifications (Driver)
G08503222Courtesy of NISSAN NORTH AMERICA, INC.
