Exploded View (QR25DE Battery Tray)

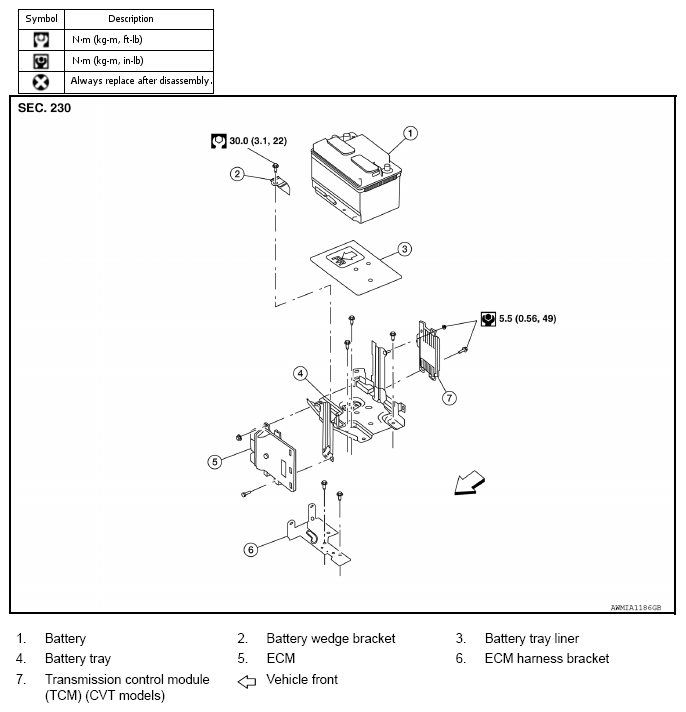

Fig 1: Exploded View Of Battery With Torque Specifications (QR25DE Battery Tray)
G08503259Courtesy of NISSAN NORTH AMERICA, INC.
