Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

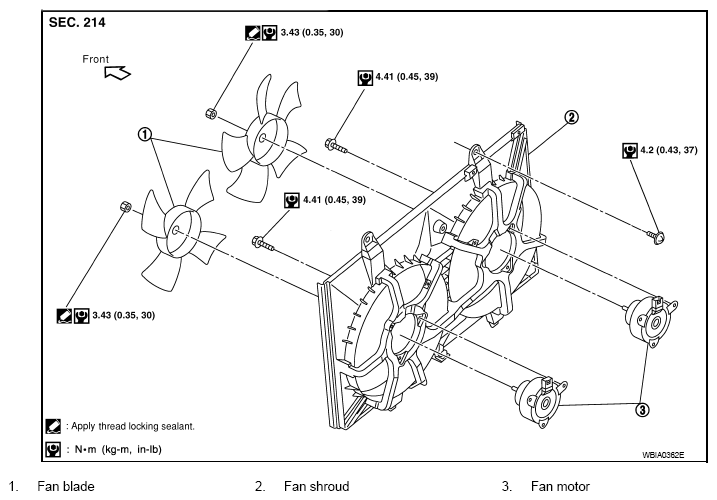

Fig 1: Disassembled View Of Cooling Fan Assembly With Torque Specifications
G08184829Courtesy of NISSAN NORTH AMERICA, INC.
