Transaxle Assembly: Component

WARNING: This page is about a different variant/trim than selected.

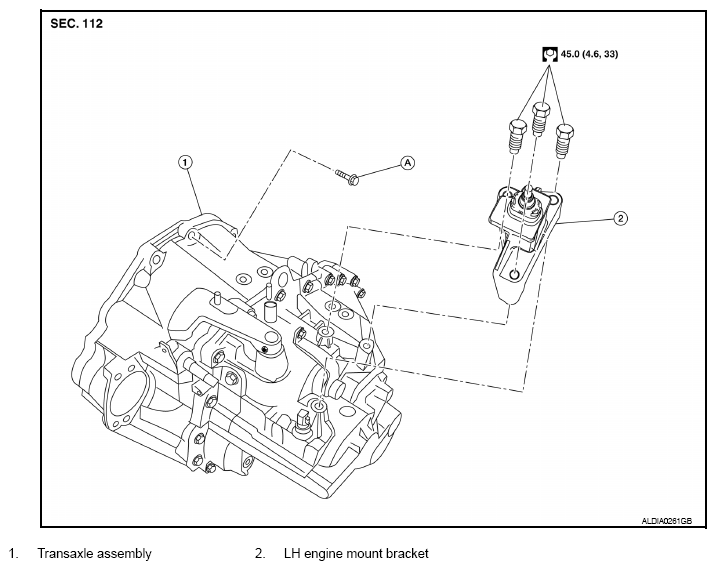

Fig 1: Exploded View Of Transaxle Assembly With Torque Specification
G08179987Courtesy of NISSAN NORTH AMERICA, INC.

A. Refer to REMOVAL AND INSTALLATION .
