Maintenance Service Reminder Reset - Procedure 01

NOTE: This procedure is for the Monochrome Control Panel Display. The actual layout of the control panel may appear different for different vehicles, but the key functions are similar.

1. Pushing MAINT button will change the maintenance menu as follows: Engine Oil > Tire Rotation > Tire Pressure  (if equipped). See Fig 1 or Fig 2 .
2. Select the ENGINE OIL screen. To reset the maintenance reminder, push the MAINT or TRIP RESET button for at least 1.5 seconds. To adjust the distance until next reminder, push the CONTROLLER ARROWS (joystick) to left or right.
   NOTE: When the vehicle is driven the set distance, the MAINTENANCE NOTICE screen will be automatically displayed and the Maintenance menu ("ENGINE OIL", "TIRE ROTATION and "TIRE PRESSURE" (if so equipped) will blink.
3. To return to the previous display after the MAINTENANCE NOTICE screen is displayed, press the PREV button.

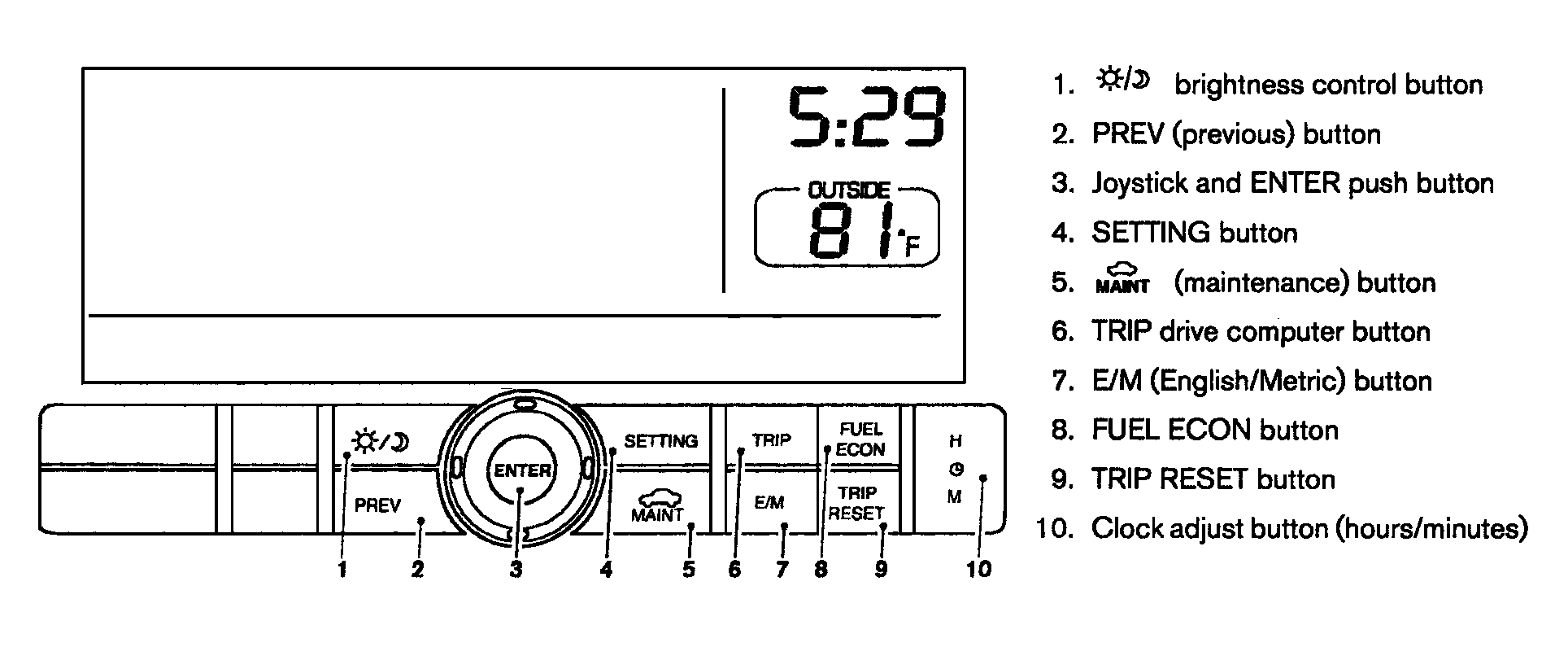

Fig 1: Identifying Control Panel Buttons For Monochrome Display (Murano Shown - Typical)

Courtesy of NISSAN MOTOR CO., U.S.A.

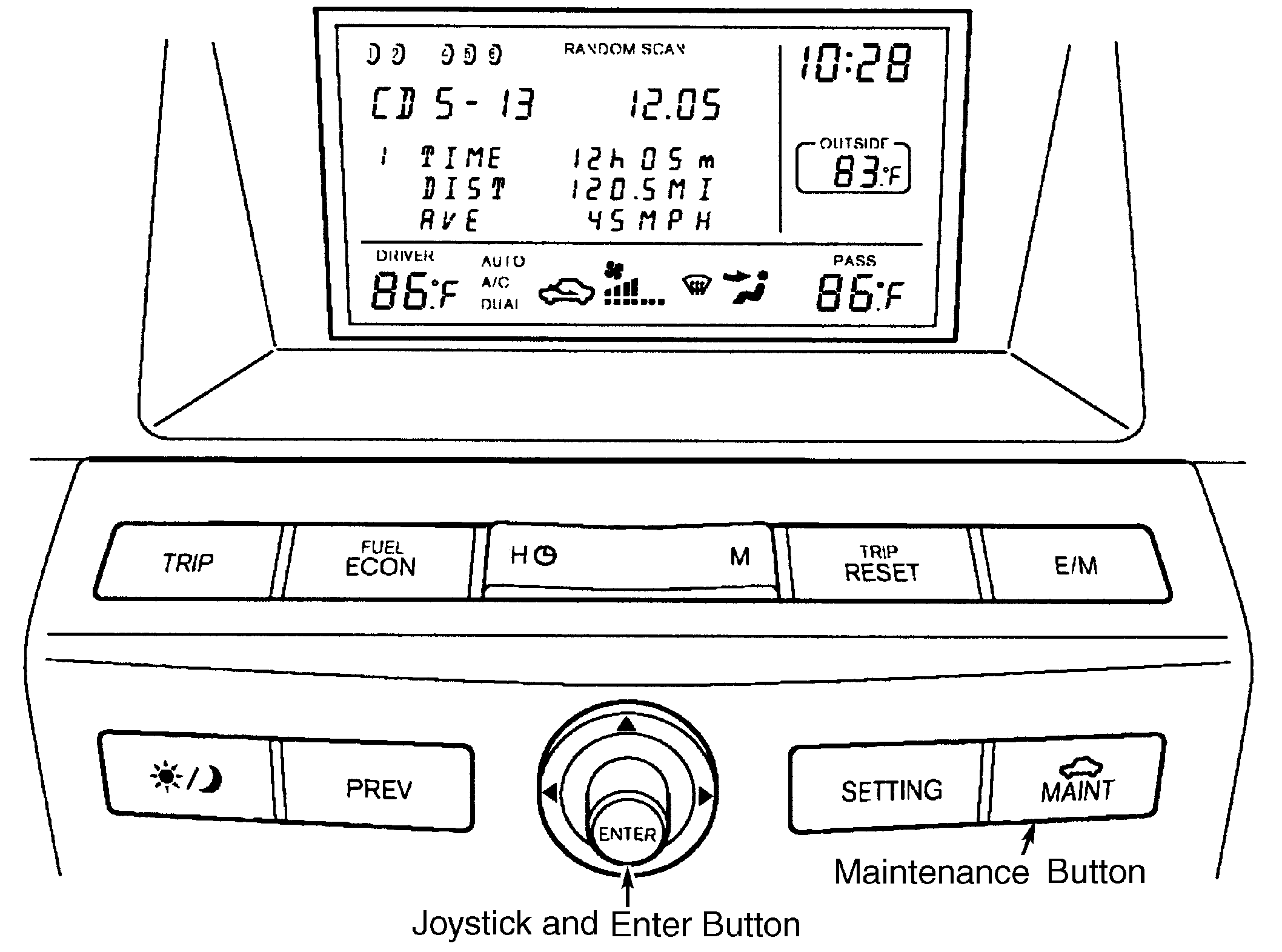

Fig 2: Identifying Control Panel Buttons For Monochrome Display (Maxima Shown - Typical)

Courtesy of NISSAN MOTOR CO., U.S.A.
