Removal and Installation: Notes

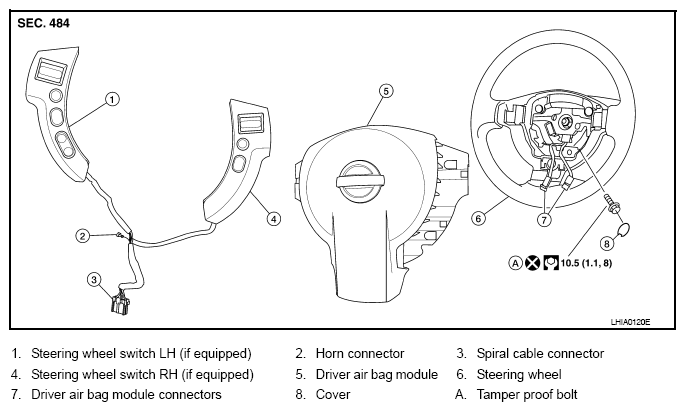

Fig 1: Driver Air Bag Module And Related Connectors With Torque Specification
G08181030Courtesy of NISSAN NORTH AMERICA, INC.
