Accelerator Control System: Component

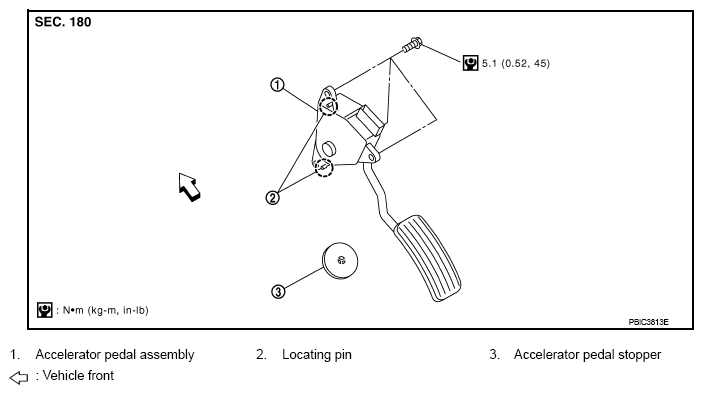

Fig 1: Exploded View Of Accelerator Control System With Torque Specification
G08273323Courtesy of NISSAN NORTH AMERICA, INC.
