ASCD Indicator: Wiring Diagram

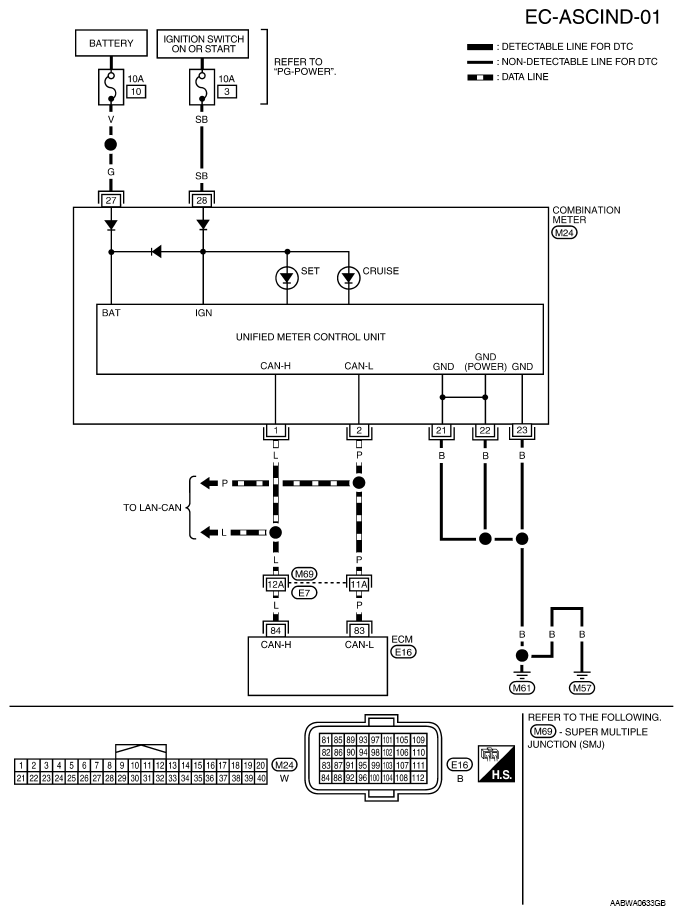

Fig 1: ACSD Indicator Wiring Diagram
G08275733Courtesy of NISSAN NORTH AMERICA, INC.
